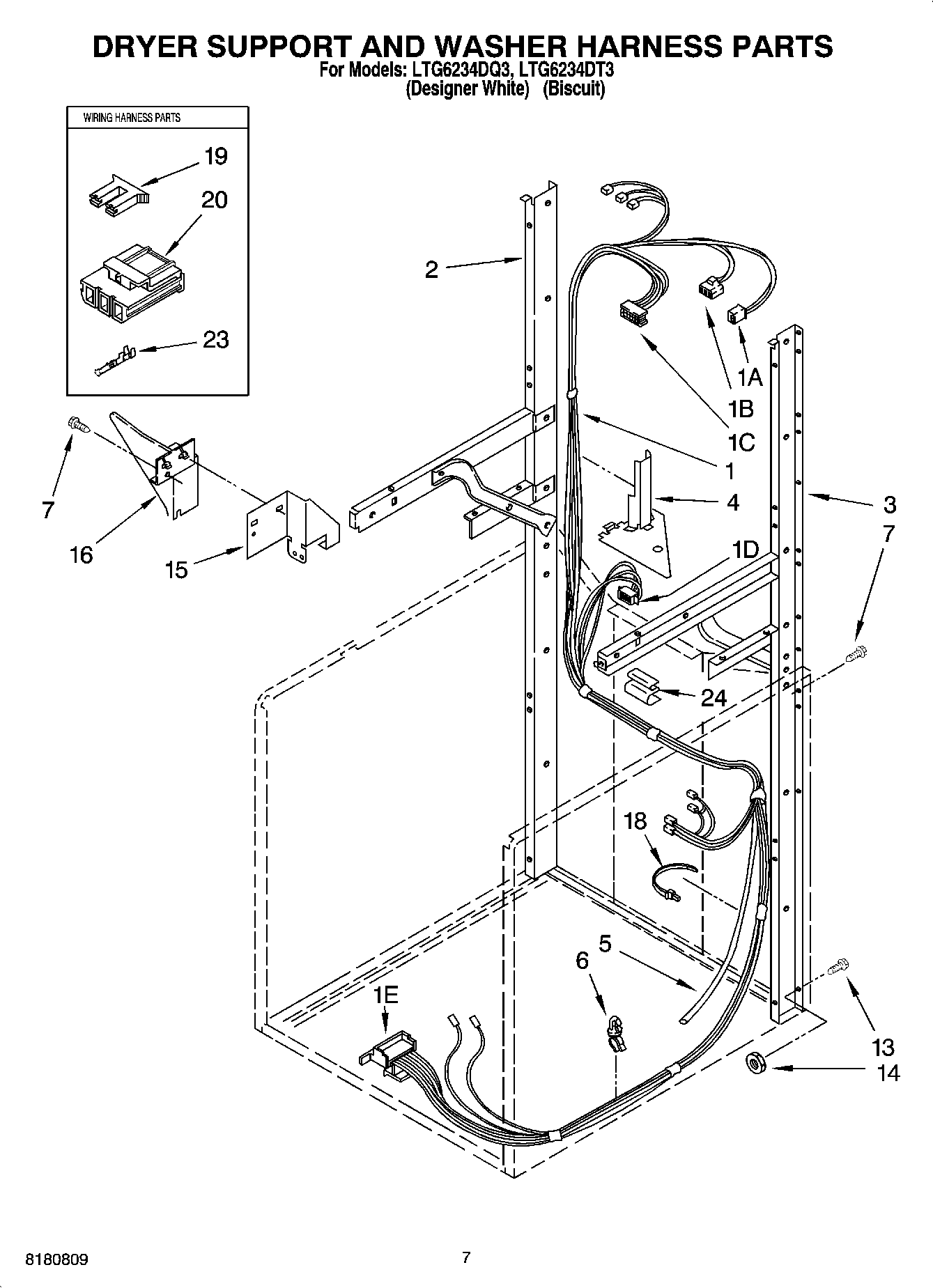

LTG6234DT3 05 – DRYER SUPPORT AND WASHER HARNESS PARTS

LTG6234DT3 05 – DRYER SUPPORT AND WASHER HARNESS PARTS

Written by

in

LTG6234DT3 05 – DRYER SUPPORT AND WASHER HARNESS PARTS

Products

PositionProduct
1Harness – Washer
1DReceptacle, 3 Way
1A3350130 Whirlpool Connector
1EWP62505 Whirlpool Connector
1CW10876590 Whirlpool Connector
1BBlock, Disconnect
23388851 Whirlpool Support
33388850 Whirlpool Support
43390609 Whirlpool Shield
5W10834213 Whirlpool Hose
6Clip, Harness
7SCREW
13Bolt, 5/16-18 x 1/2
14Nut, Hex (4)
153392232 Whirlpool Shield
16Shield, Thermostat
18Tie, Cable
193354925 Whirlpool Connector
20WP3360056 Whirlpool Connector
23WP596797 Whirlpool Terminal
23WP94614 Whirlpool Terminal
24Protector, Harness
