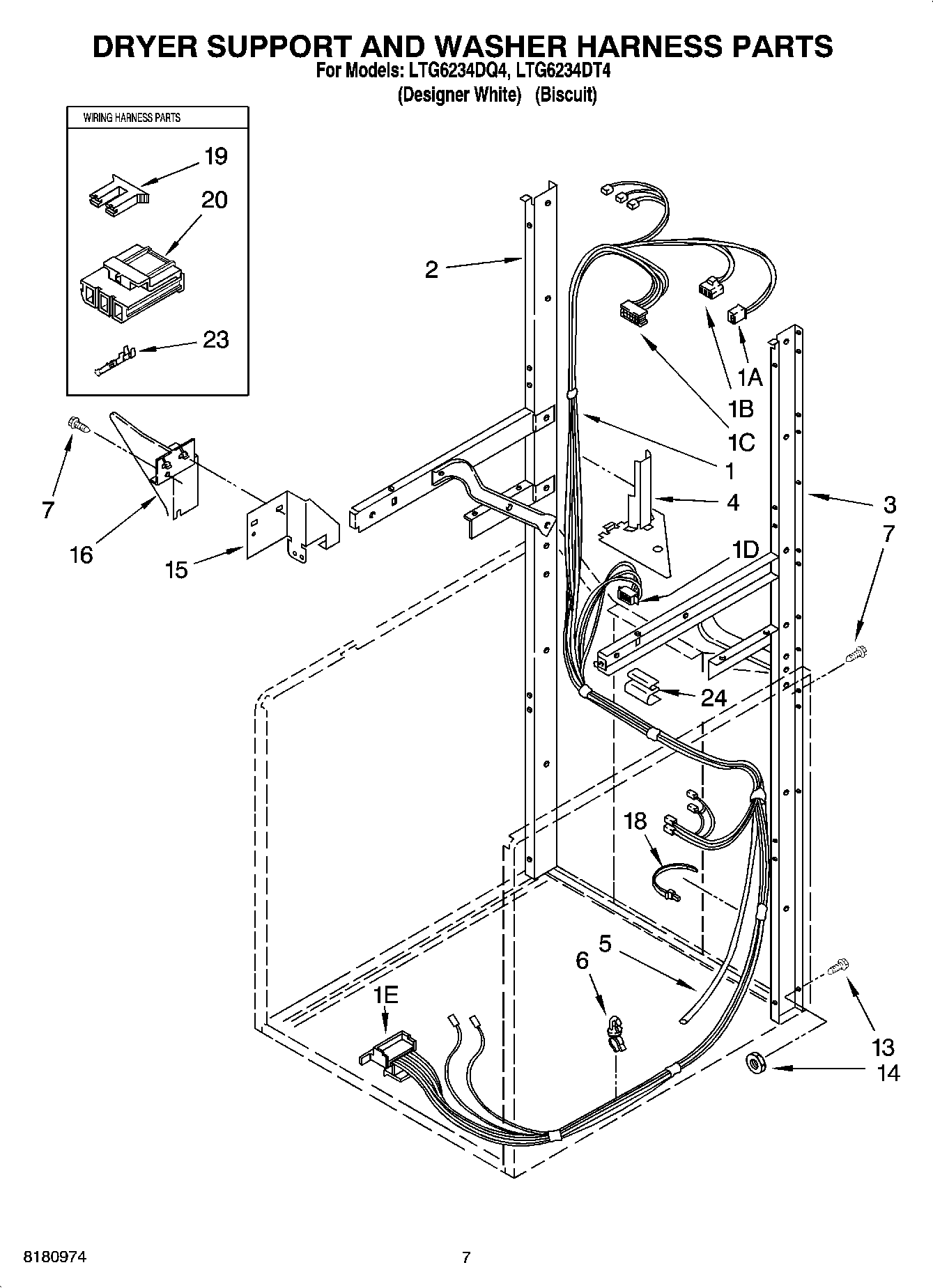

LTG6234DT4 05 – DRYER SUPPORT AND WASHER HARNESS PARTS

Products

PositionProduct
1A3350130 Whirlpool Connector
1DReceptacle, 3 Way
1Harness – Washer
1EWP62505 Whirlpool Connector
1CW10876590 Whirlpool Connector
1BBlock, Disconnect
2(Left Hand Side)
23388851 Whirlpool Support
33388850 Whirlpool Support
3(Right Hand Side)
43390609 Whirlpool Shield
5W10834213 Whirlpool Hose
6Clip, Harness
7SCREW
13Bolt, 5/16-18 x 1/2
14Nut, Hex (4)
153392232 Whirlpool Shield
16Shield, Thermostat
18Tie, Cable
193354925 Whirlpool Connector
20WP3360056 Whirlpool Connector
23WP94614 Whirlpool Terminal
24Protector, Harness
