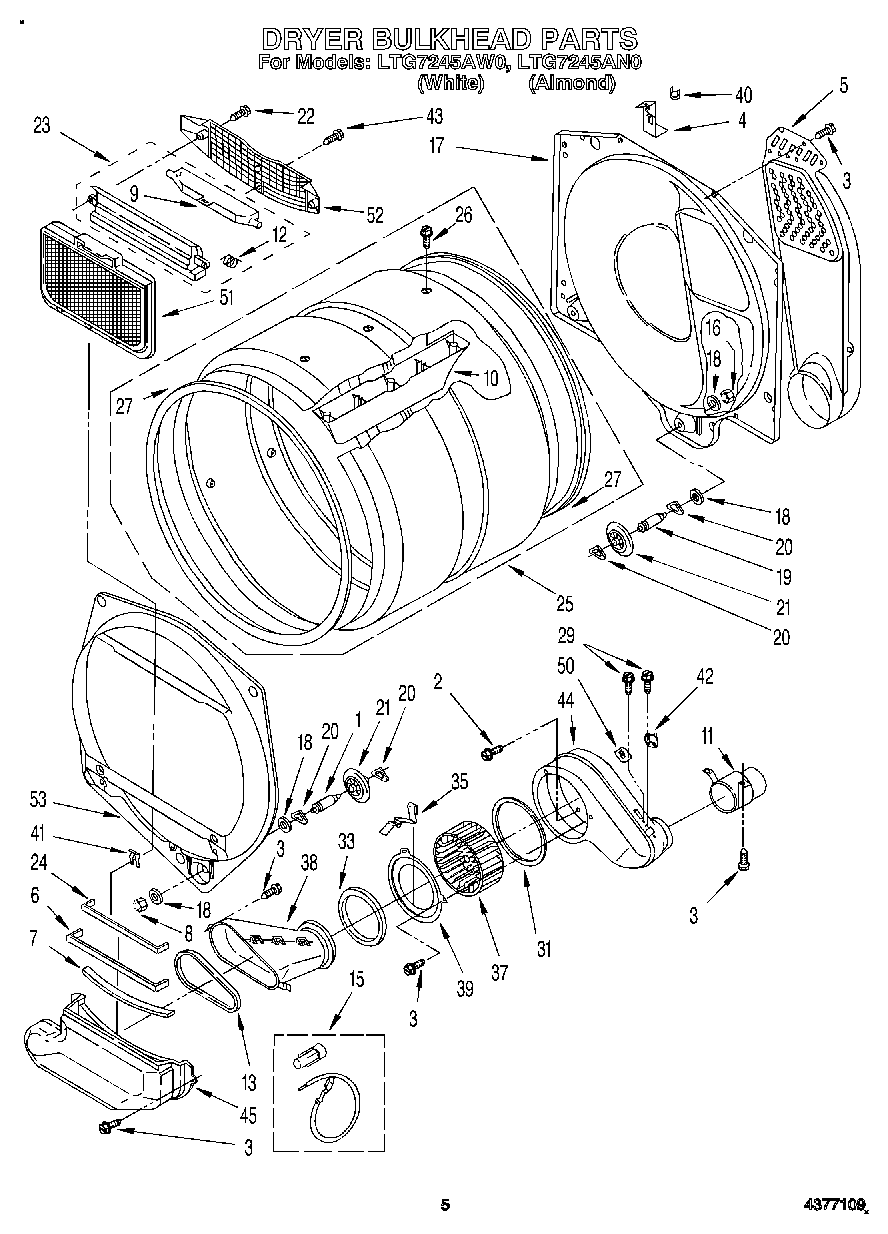

LTG7245AN0 04 – DRYER BULKHEAD

Products

Position	Product
1	SHAFT
2	WP308685 Whirlpool Microwave Screw
3	SCREW
4	3392226 Whirlpool Clip
5	W11727962 Whirlpool HVAC Air Duct
6	WP697813 Whirlpool Seal
7	WP3391906 Whirlpool Seal
8	WP3359452 Whirlpool Nut
9	W11222846 Whirlpool Door
10	279982 Whirlpool Drum Baffle
11	279823 Whirlpool Exhaust Pipe
12	WP3394986 Whirlpool Spring
13	WP697770 Whirlpool Blower Cover Plate Seal
15	279457 Whirlpool Dryer Heating Element Wide Spade Connection
16	Nut, 3/8-16 (L.H.)
17	W11299300 Whirlpool Bulkhead Assembly
18	W11236646 Whirlpool Washer Assembly
19	SHAFT
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	349241T Whirlpool Dryer Drum Support Roller Kit
22	WP3387230 Whirlpool Screw
23	W11129408 Whirlpool Out Housing
25	W10518375 Whirlpool Drum Assembly
26	Screw
27	280114 Whirlpool Dryer Drum Seal
29	WPW10139210 Whirlpool Screw
33	WP8566209 Whirlpool Seal
35	3390935 Whirlpool Clip
37	WP697772 Whirlpool Dryer Blower Wheel
38	279704 Whirlpool Duct Assembly
39	279780 Whirlpool Plate Cover
40	W11568973 Whirlpool Thermostat Fix
41	W11712577 Whirlpool Clip
42	WP3387134 Whirlpool Dryer Cycling Thermostat
43	WP488729 Whirlpool Refrigerator Door Screw
44	WP8544363 Whirlpool Housing
45	279700 Whirlpool Duct Lint
50	WP3403607 Whirlpool Thermoprotector
51	WP3389644 Whirlpool Screen Assembly
52	Grill, Outlet
53	WP697557 Whirlpool Bulkhead Assembly
