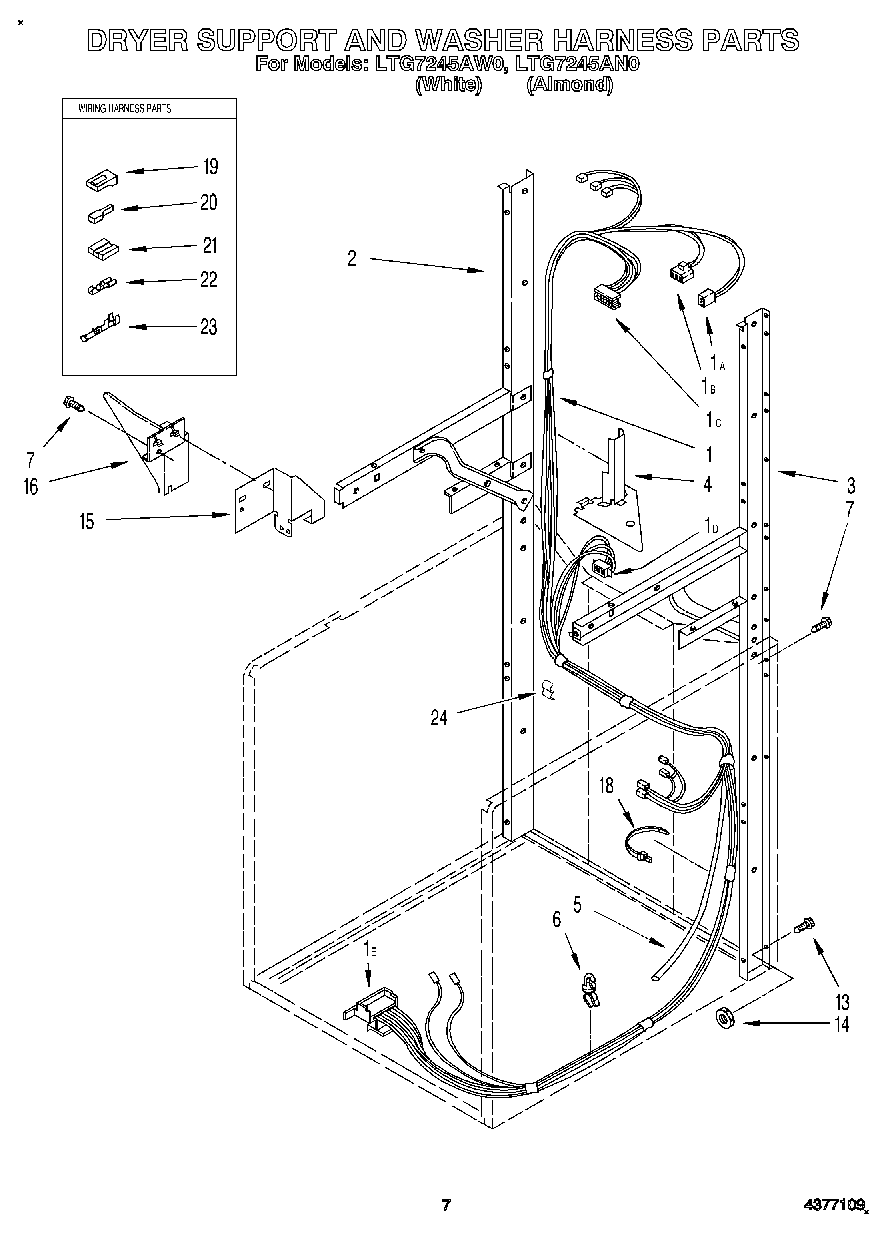

LTG7245AN0 05 – DRYER SUPPORT AND WASHER HARNESS

Products

PositionProduct
1Harness – Washer
1Receptacle, 3 Way
13350130 Whirlpool Connector
1WP62505 Whirlpool Connector
1W10876590 Whirlpool Connector
1Block, Disconnect
23388851 Whirlpool Support
33388850 Whirlpool Support
43390609 Whirlpool Shield
5W10834213 Whirlpool Hose
6Clip, Harness
7SCREW
13Screw, 5/16-18 x 1/2 (2)
14Nut, Hex (4)
153392232 Whirlpool Shield
16Shield, Thermostat
18Tie, Cable
19Insulator, Terminal
20WP285432 Whirlpool Terminal
21Connector Block (Alternate)
22Terminal, Female
23WP596797 Whirlpool Terminal
23WP94614 Whirlpool Terminal
24Protector, Harness
