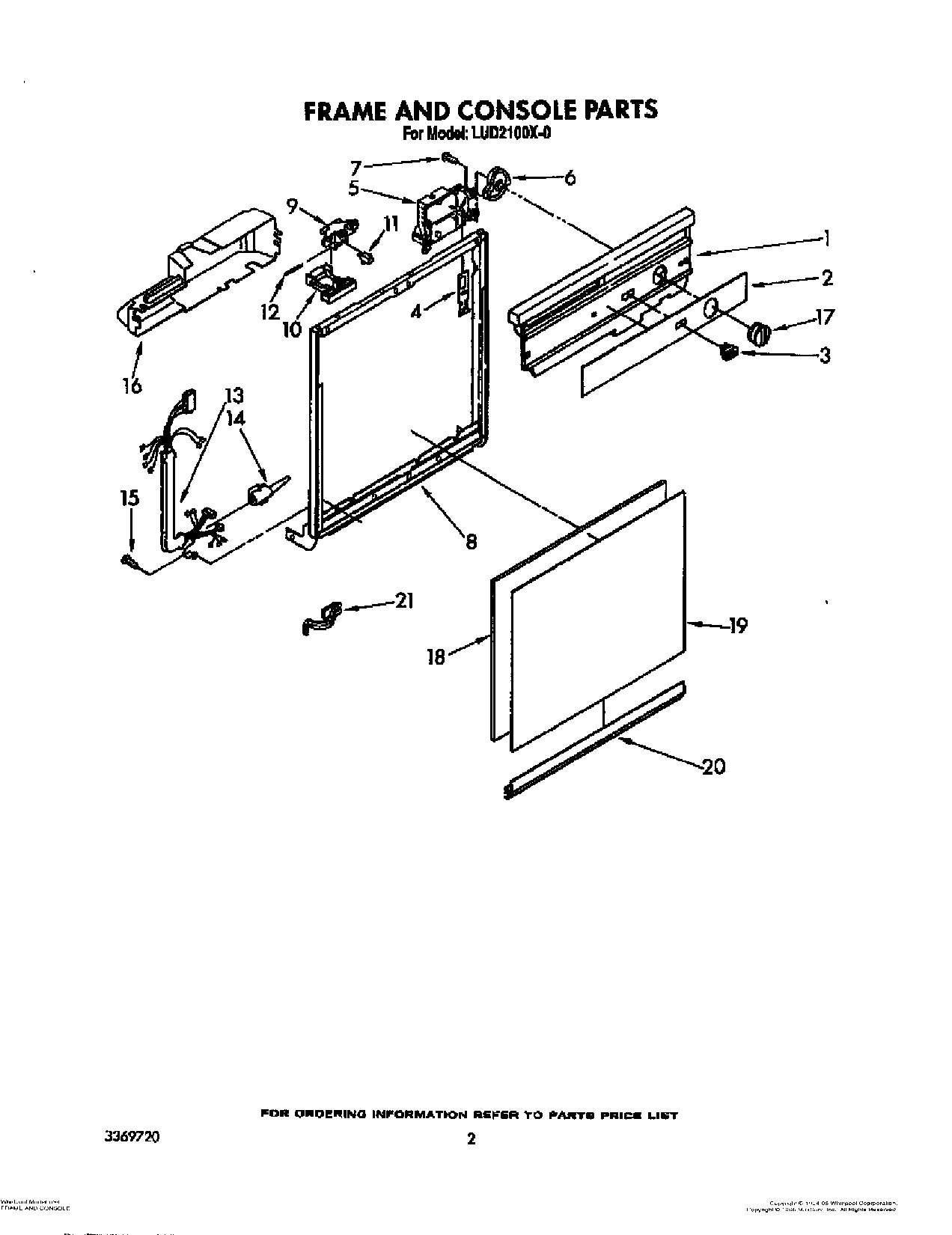

LUD2100X0 02 – FRAME AND CONSOLE

Products

Position	Product
1	Console (Includes Item 2)
2	Insert, Console
3	WP4314961 Whirlpool Lite Switch
4	Follower, Cam
5	Timer
6	Cam
7	WP304231 Whirlpool Dishwasher Screw
8	Door Frame
9	WP3380854 Whirlpool Door Latch Bolt
10	WP3368954 Whirlpool Dishwasher Lever
11	Switch, (2)
12	Pin, Switch (2)
13	Harness and Protector
14	3376405 Whirlpool Dishwasher Elbow
15	WP488234 Whirlpool Air Conditioner Screw
16	Cover, Timer
17	Knob, Timer
18	Spacer, Corrugated
19	WP3369769 Whirlpool Dishwasher Panel
20	Retainer, Panel
21	8528351 Whirlpool Clip
