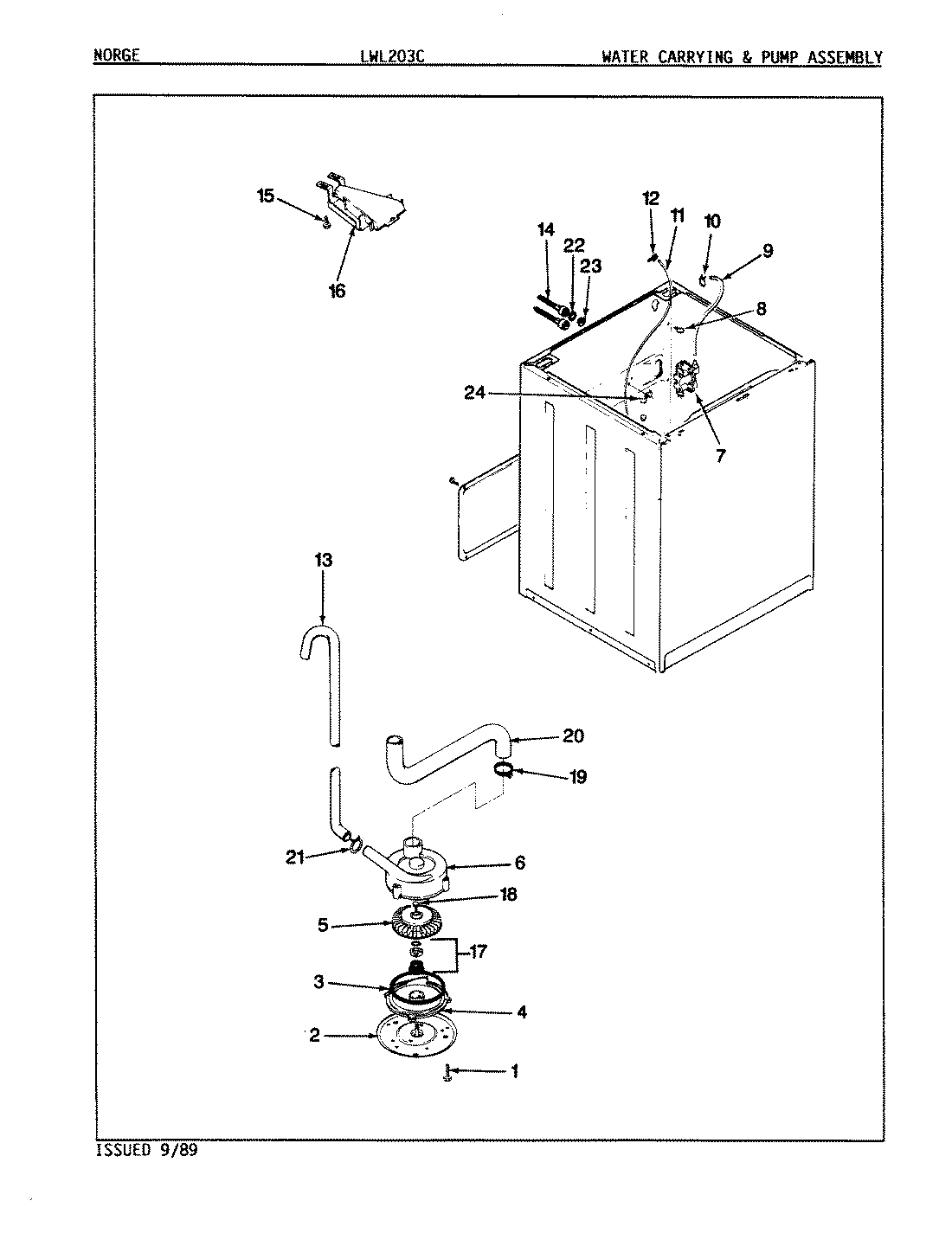

LWL203HC 19 – WATER CARRYING & PUMP ASSY. (REV. A-D)

LWL203HC 19 – WATER CARRYING & PUMP ASSY. (REV. A-D)

Written by

in

LWL203HC 19 – WATER CARRYING & PUMP ASSY. (REV. A-D)

Products

Position	Product
1	MAY 25-7405
2	MAY 33-6035
3	MAY 33-6032
4	MAY 35-2058
5	WP35-6465 Whirlpool Drain Pump
6	MAY 35-2056
6	MAY 35-2099
7	MAY 35-2374
7	WP25-7220 Whirlpool Cabinet Clip
9	12002749 Whirlpool Flume Hose Kit
11	MAY 35-2322
11	MAY 35-2261
12	MAY 33-6099
13	MAY 33-9436
14	MAY 35-0873
14	FILL HOSE 5' W/WASHER
15	WP90767 Whirlpool Screw
16	MAY 35-2051
17	MAY 35-0707
18	MAY 25-7894
19	MAY 25-6069
20	MAY 35-2131
22	MAY 25-7048
23	MAY 33-7313
24	WP596669 Whirlpool Hose Clamp
