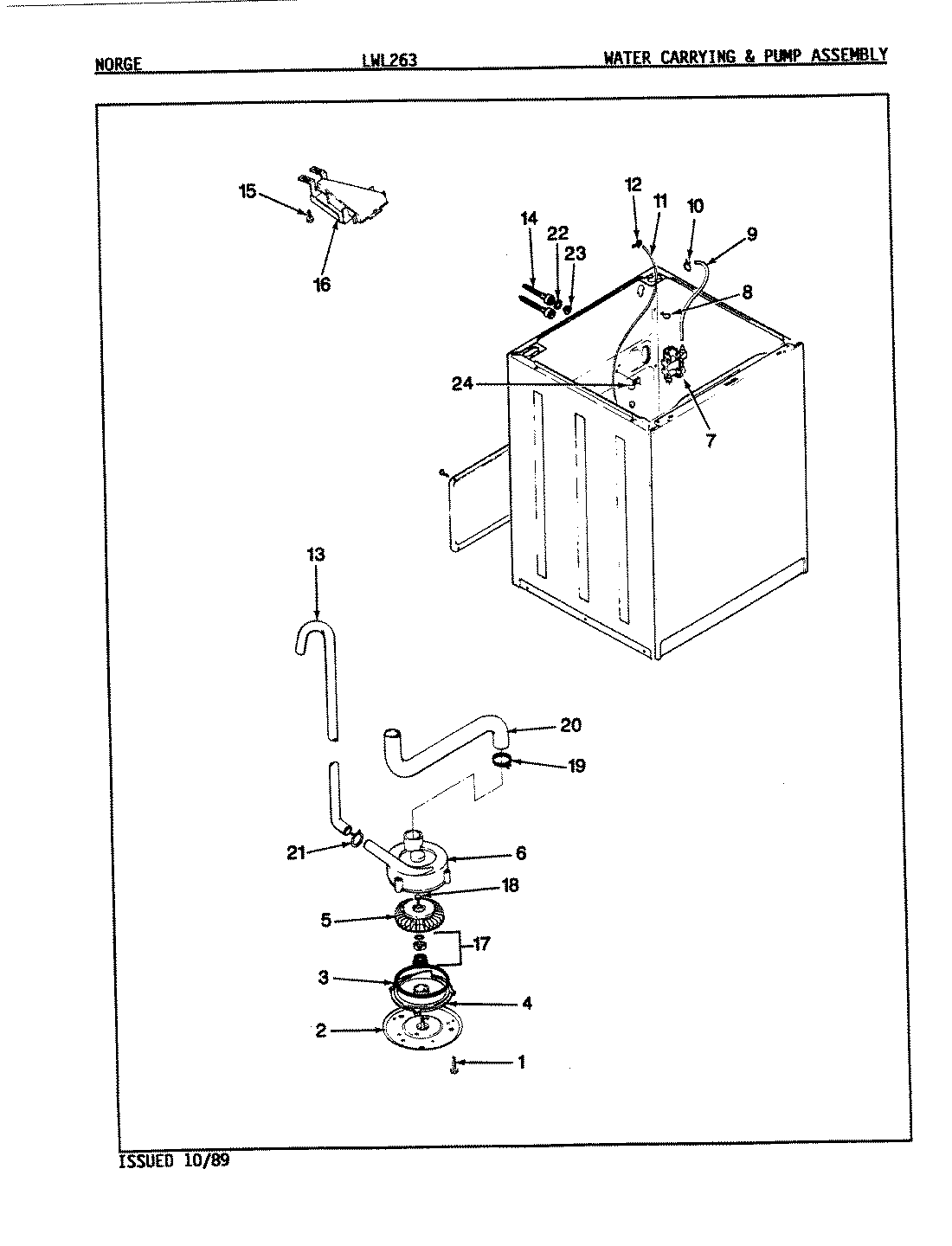

LWL263A 09 – WATER CARRYING & PUMP ASSY. (REV. E-F)

LWL263A 09 – WATER CARRYING & PUMP ASSY. (REV. E-F)

Written by

in

LWL263A 09 – WATER CARRYING & PUMP ASSY. (REV. E-F)

Products

PositionProduct
1MAY 25-7405
2MAY 33-6035
3MAY 33-6032
4MAY 35-2058
5WP35-6465 Whirlpool Drain Pump
6MAY 35-2099
6MAY 35-2056
7WP25-7220 Whirlpool Cabinet Clip
7MAY 35-2375
912002749 Whirlpool Flume Hose Kit
10WP596669 Whirlpool Hose Clamp
11MAY 35-2322
11MAY 35-2261
13MAY 33-9436
14MAY 35-0873
14FILL HOSE 5' W/WASHER
15WP90767 Whirlpool Screw
16MAY 35-2051
17MAY 35-0707
18MAY 25-7894
19MAY 25-6069
20MAY 35-2131
21WP285655 Whirlpool Hose Clamp
22WPW10309247 Whirlpool Screw
23MAY 33-7313
24MAY 33-6099
