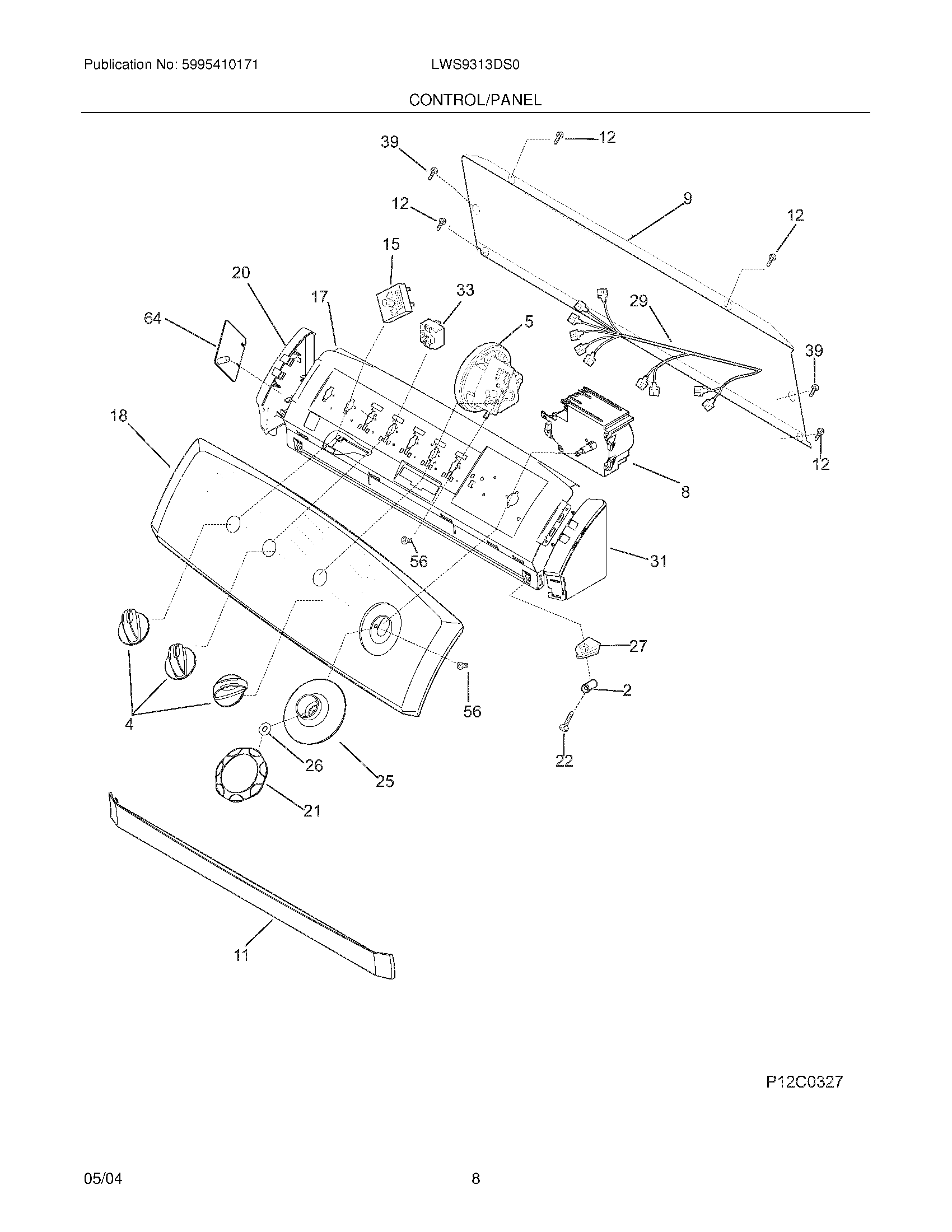

LWS9313DS0 09 – CONTROL/PANEL

LWS9313DS0 09 – CONTROL/PANEL

Written by

in

LWS9313DS0 09 – CONTROL/PANEL

Products

PositionProduct
NIWCI 134391400
2WCI 134096100
4134844410 Frigidaire Washer Dryer Selector Knob White
5134421000 Frigidaire Pressure Switch P-1
8134049500 Frigidaire Timer P1
9Panel,backsheet ,console
11WCI 134019900
12131168200 Frigidaire Dryer Screw
15WCI 134394600
17WCI 131993040
18WCI 134391500
20WCI 134019610
21WCI 134035200
22WCI 131266330
25WCI 134035100
26Spacer,washer ,timer shaft
27CLIP-CONSOLE MTG
29WCI 134395200
31WCI 134019600
33Switch,2 position
39131205100 Frigidaire Screw
56131243800 Frigidaire Screw
64WCI 134224300
