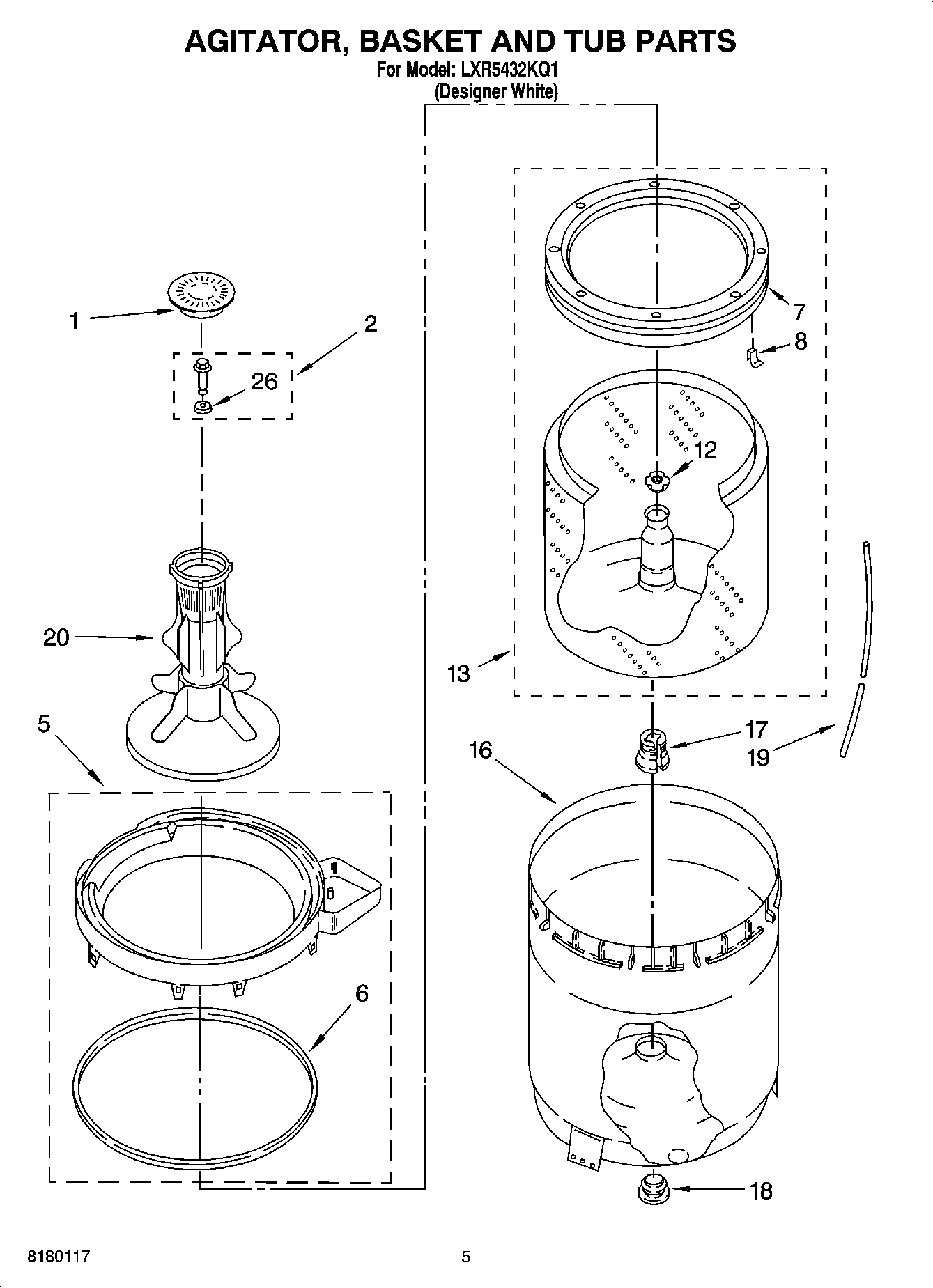

LXR5432KQ1 03 – AGITATOR, BASKET AND TUB PARTS

LXR5432KQ1 03 – AGITATOR, BASKET AND TUB PARTS

Written by

in

LXR5432KQ1 03 – AGITATOR, BASKET AND TUB PARTS

Products

PositionProduct
1WP3352483 Whirlpool Cap
2WP358237 Whirlpool Agitator Bolt
5Tub Ring & Gasket Assembly
6WP3359586 Whirlpool Tub Seal
7WP3956205 Whirlpool Balance Ring
8WP8519815 Whirlpool Washer Balance Ring Clip
12WP21366 Whirlpool Spanner Nut
13Basket & Balance Ring
16Tub
17WP389140 Whirlpool Drive Block or Bell
18W10814296 Whirlpool Washer Center Post Seal Gasket
19WP353244 Whirlpool Hose
20AGITATOR
26WP3949550 Whirlpool Gasket Assembly
