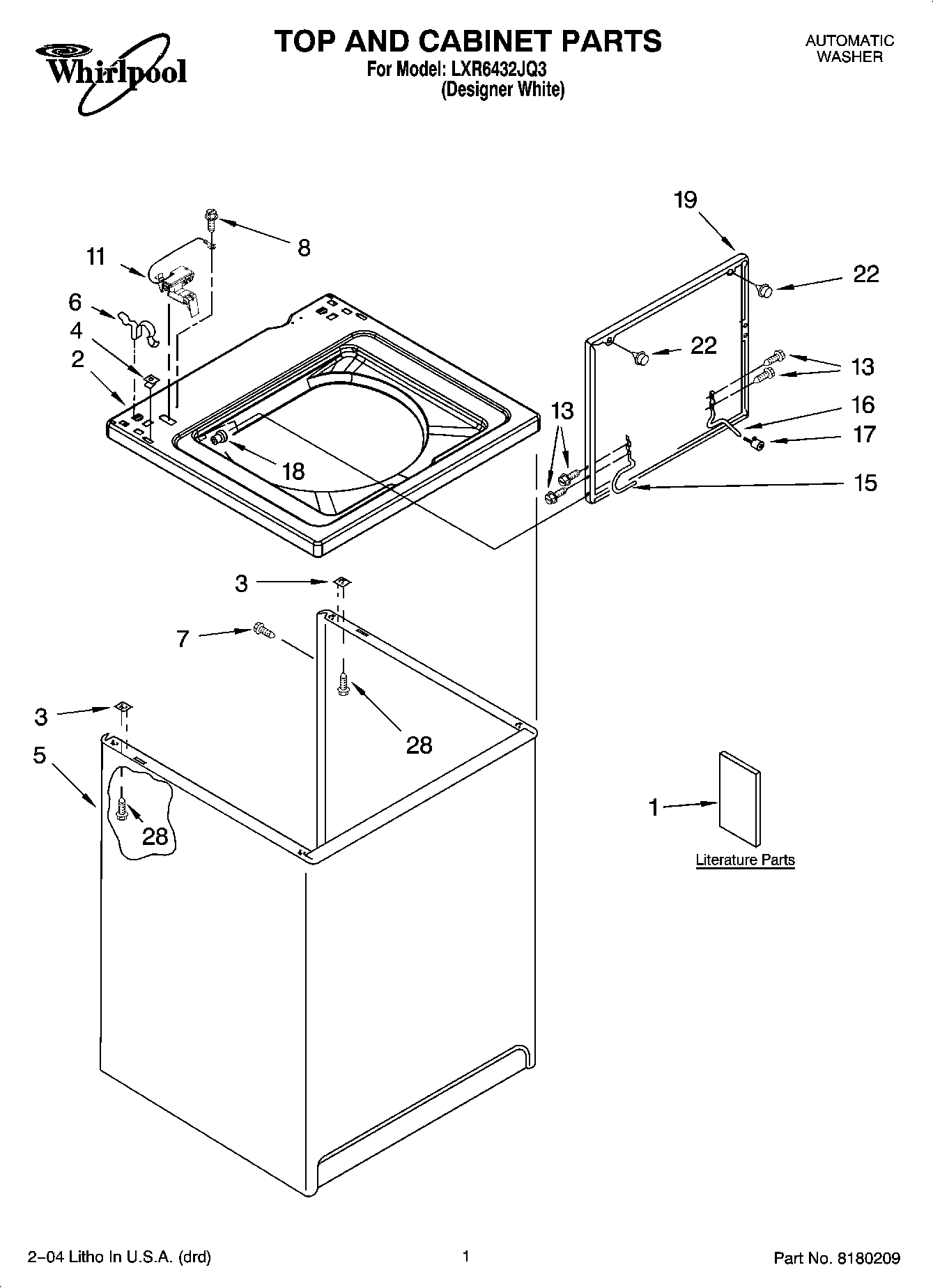

LXR6432JQ3 01 – TOP AND CABINET PARTS

Products

Position	Product
1	Literature Parts (Energy Guide)
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Manual, (Washer) Do-It-Yourself
1	Literature Parts (Wiring Diagram)
1	Literature Parts (Feature Sheet)
1	Literature Parts (Use & Care Guide)
1	Literature Parts (Installation Instructions)
2	Top (White)
3	WP62750 Whirlpool Spacer
4	WP357213 Whirlpool Hinge Stopper
5	63424 Whirlpool Cabinet Assembly
6	WP62780 Whirlpool Cabinet Clip
7	WP308685 Whirlpool Microwave Screw
8	WP3351614 Whirlpool Screw
11	WP8318084 Whirlpool Washer Lid Switch Assembly
13	SCREW
15	8318088 Whirlpool Hinge Assembly
16	WP54583 Whirlpool Hinge
17	Bumper, Lid Hinge
18	WP21258 Whirlpool Washer Lid Hinge Bearing
19	WPW10193857 Whirlpool Lid Assembly
22	WP9724509 Whirlpool Bumper
28	WP3390631 Whirlpool Screw
