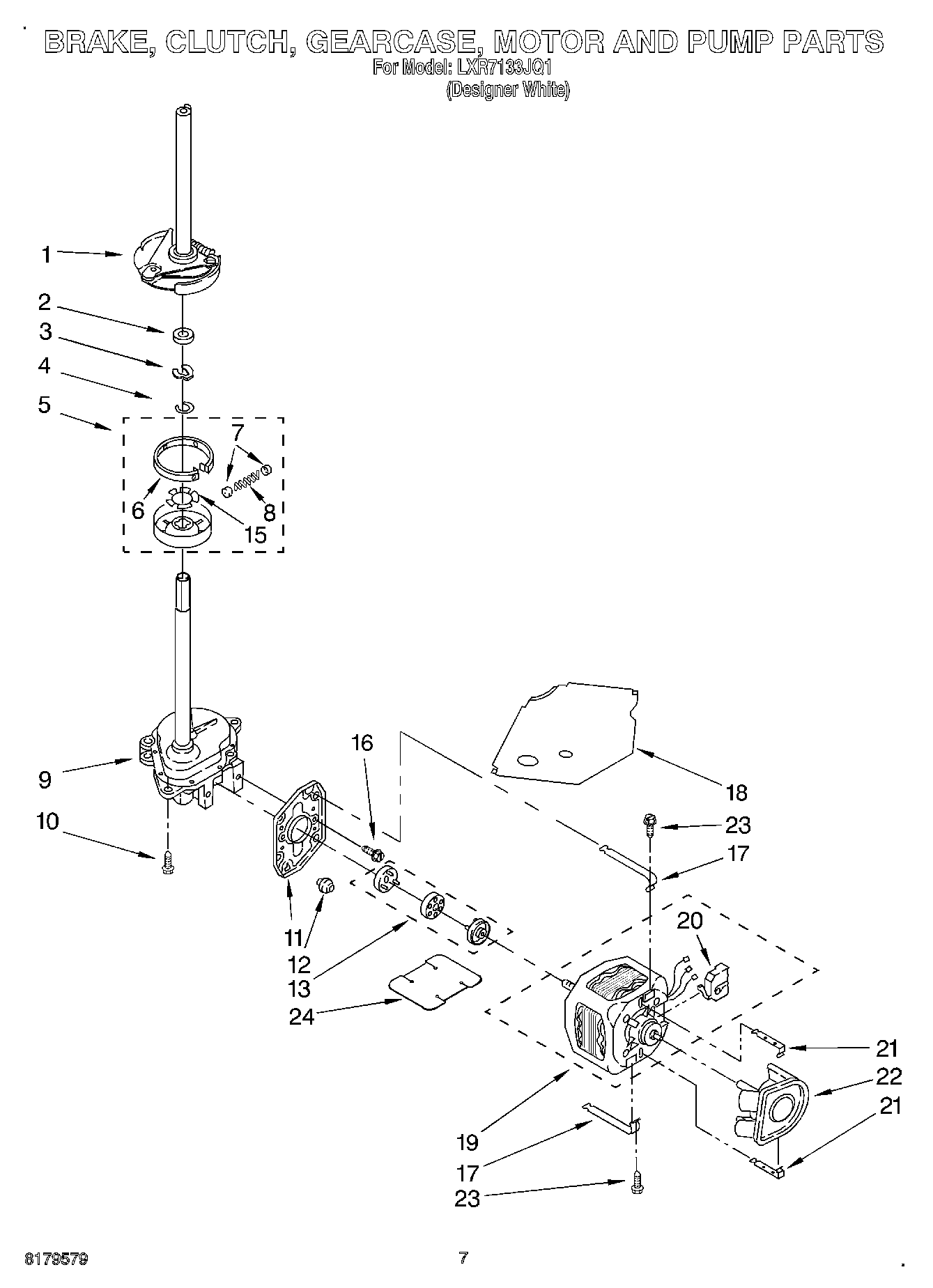

LXR7133JQ1 04 – BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMPadmin2025-04-26T11:20:59+00:00LXR7133JQ1 04 – BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP ProductsPositionProduct1W10820043 Whirlpool Washer Drive and Brake Basket Assembly2WP63292 Whirlpool Washer3WPW10080230 Whirlpool Ring4285353 Whirlpool Ring5285785 Whirlpool Washer Direct Drive Clutch6285790 Whirlpool Washer Clutch Band and Lining Kit7WP62646 Whirlpool Cap8WP3946792 Whirlpool Spring93360629 Whirlpool Washer Gearcase Transmission10WP3400516 Whirlpool Screw11WP62611 Whirlpool Plate12WP62691 Whirlpool Grommet13285753A Whirlpool Washer Direct Drive Motor Coupling15Clip, Anti-Rattle17WPW10086010 Whirlpool Motor Retainer Clip18W10838408 Whirlpool Motor Shield19WP661600 Whirlpool Drive Motor20Switch, Main Drive Motor21WP8546127 Whirlpool Retainer Clip22WP3363394 Whirlpool Washer Drain Pump23WP273556 Whirlpool Screw24WP3946532 Whirlpool Shield
