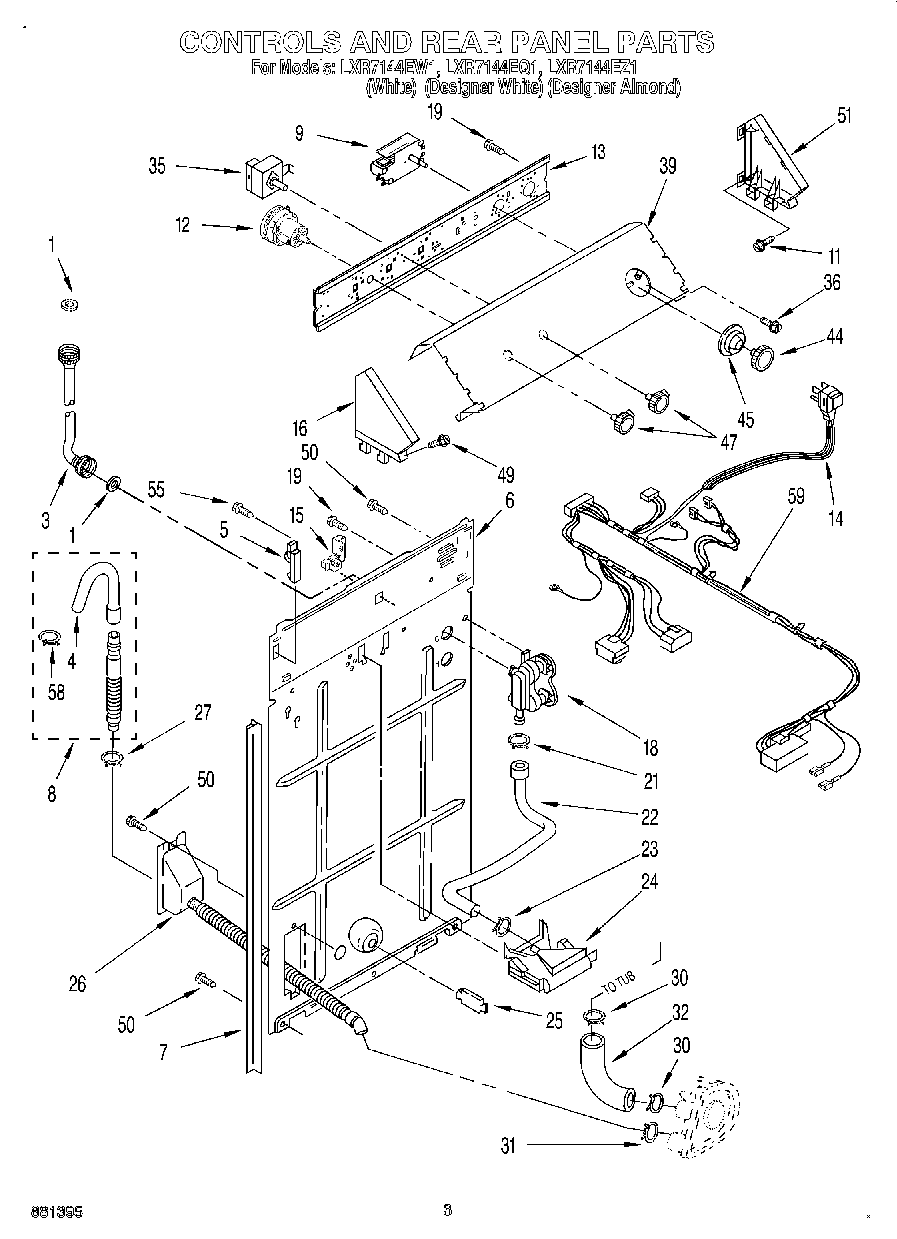

LXR7144EQ1 02 – CONTROLS AND REAR PANEL

Products

Position	Product
1	WP16123 Whirlpool Washer
3	WP89503 Whirlpool Washer Fill Hose
4	WP3357027 Whirlpool Nozzle Assembly
5	Hinge, Console (2)
6	WP3357978 Whirlpool Rear Panel
7	WP62747 Whirlpool Pad
8	285666 Whirlpool Drain Hose 10'
8	285702 Whirlpool Extensions
8	285664 Whirlpool Drain Hose
9	Timer, Control (60 Hz.) (Motor Not A Service Part)
11	WP90767 Whirlpool Screw
12	W10337780 Whirlpool Pressure Switch
13	WP3948608 Whirlpool Bracket
14	Cord, Power (Power Cord Only, Without Harness)
15	Strain Relief, Power Cord
16	Cap, End (L.H.) (Almond)
16	Cap, End (L.H.) (White)
16	Cap, End (L.H.)
18	285805 Whirlpool Washer Water Inlet Valve
19	WP3351614 Whirlpool Screw
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3347034 Whirlpool Vacuum Break
25	WP8519200 Whirlpool Support Assembly
26	WPW10358149 Whirlpool Hose
27	WP356138 Whirlpool Hose Clamp
30	WP371502 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
35	Switch, Water Temperature
36	W10915367 Whirlpool Screw Assembly
39	Panel, Console (For White Model)
39	Panel, Console (For Designer Almond Model)
39	Panel, Console (For Designer White Model)
44	W10807860 Whirlpool White Control Knob
44	WP3957823 Whirlpool Knob
45	WPL 3948588
45	WP3957841 Whirlpool Dial
45	Dial, Timer
47	3957797 Whirlpool Knob
47	KNOB
47	WP3957796 Whirlpool Knob
49	WP388326 Whirlpool Screw
50	WP3390631 Whirlpool Screw
51	Cap, End (R.H.) (White)
51	Cap, End (R.H.) (Almond)
51	Cap, End (R.H.)
55	WP308685 Whirlpool Microwave Screw
58	WP3357331 Whirlpool Clamp
59	WPL 3950639
