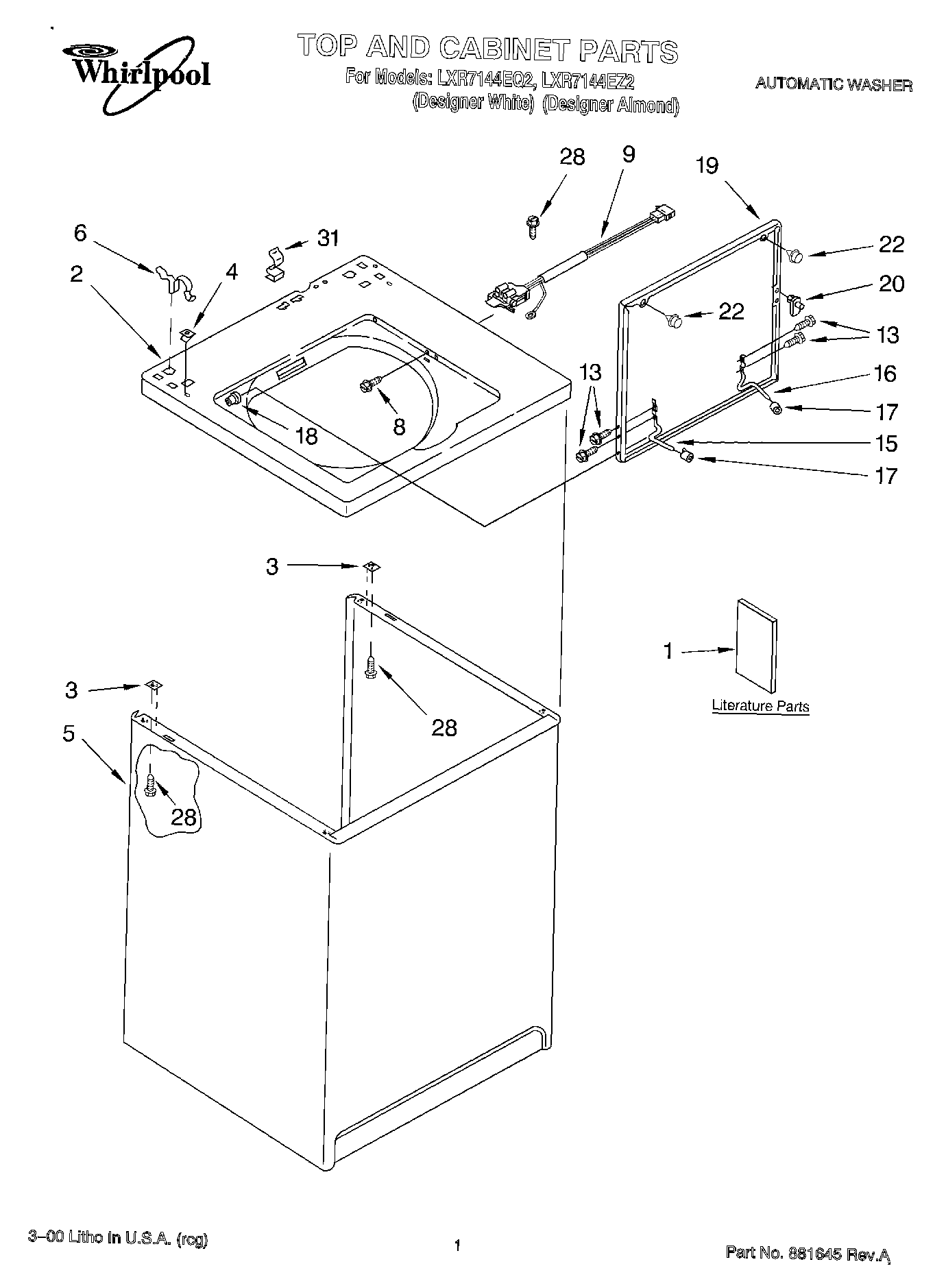

LXR7144EZ2 01 – TOP AND CABINET, LITERATURE

LXR7144EZ2 01 – TOP AND CABINET, LITERATURE

Written by

in

LXR7144EZ2 01 – TOP AND CABINET, LITERATURE

Products

PositionProduct
Manual, (Washer) Do-It-Yourself
1Literature Parts (Installation Instructions) (Wiring Diagram)
1Literature Parts (Installation Instructions) (Energy Label)
1LITERATURE PARTS
1Guide, Use and Care
1Literature Parts (Use & Care Guide (French))
1Literature Parts (Installation Instructions) (French)
1Literature Parts (Installation Instructions) (English)
2Top
2Top (Almond)
3WP62750 Whirlpool Spacer
4WP357213 Whirlpool Hinge Stopper
563424 Whirlpool Cabinet Assembly
5Cabinet (Almond)
6WP62780 Whirlpool Cabinet Clip
8WP3356311 Whirlpool Screw
93949247V Whirlpool Washer Lid Switch Assembly
13SCREW
15WP54584 Whirlpool Hinge
16WP54583 Whirlpool Hinge
17Bumper, Lid Hinge
18WP21258 Whirlpool Washer Lid Hinge Bearing
19Lid (Almond)
19Lid (White)
20WP358684 Whirlpool Strike Assembly
22WP9724509 Whirlpool Bumper
28WP3390631 Whirlpool Screw
31WP90016 Whirlpool Clip
