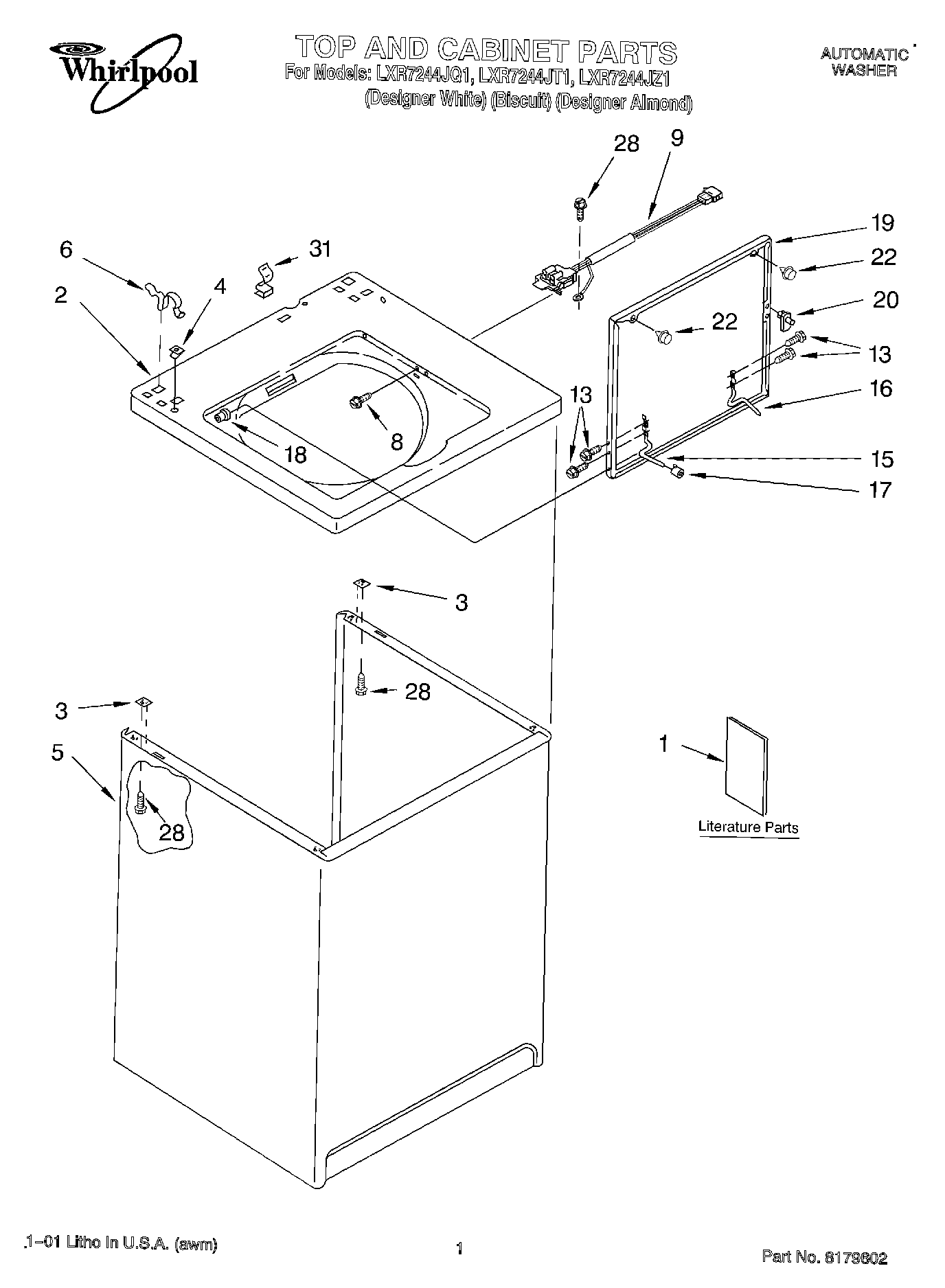

LXR7244JQ1 01 – TOP AND CABINET, LITERATURE

Products

Position	Product
	Manual, (Washer) Do-It-Yourself
1	Literature Parts (Installation Instructions) (French)
1	Literature Parts (Installation Instructions) (English)
1	Literature Parts (Use & Care Guide) (French)
1	Literature Parts (Wiring Diagram)
1	LITERATURE PARTS
1	Literature Parts (Use & Care Guide) (English)
1	Literature Parts (Energy Guide)
2	Top (Biscuit)
2	Top (Almond)
2	Top
3	WP62750 Whirlpool Spacer
4	WP357213 Whirlpool Hinge Stopper
5	Cabinet (Biscuit)
5	63424 Whirlpool Cabinet Assembly
5	Cabinet (Almond)
6	WP62780 Whirlpool Cabinet Clip
8	WP3356311 Whirlpool Screw
9	3949247V Whirlpool Washer Lid Switch Assembly
13	SCREW
15	WP54584 Whirlpool Hinge
16	WP91770 Whirlpool Hinge
17	Bumper, Lid Hinge
18	WP21258 Whirlpool Washer Lid Hinge Bearing
19	Lid
19	Lid (Biscuit)
19	Lid (Almond)
20	WP358684 Whirlpool Strike Assembly
22	WP9724509 Whirlpool Bumper
28	WP3390631 Whirlpool Screw
31	WP90016 Whirlpool Clip
