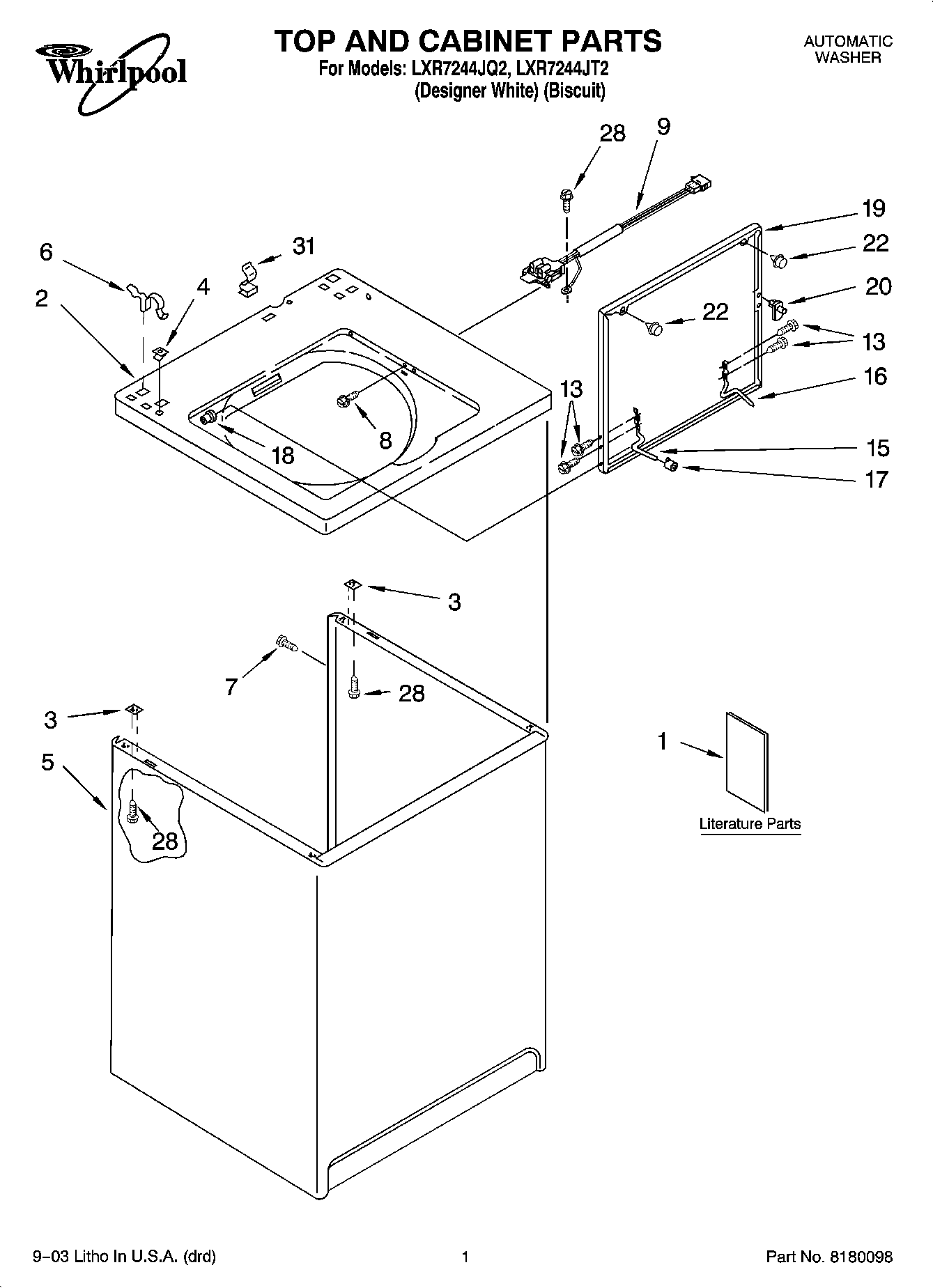

LXR7244JQ2 01 – TOP AND CABINET PARTS

LXR7244JQ2 01 – TOP AND CABINET PARTS

Written by

in

LXR7244JQ2 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Manual, (Washer) Do-It-Yourself
1Literature Parts (Use & Care Guide)
1Literature Parts (Installation Instructions)
1Literature Parts (Feature Sheet)
1Literature Parts (Energy Guide)
1Literature Parts (Wiring Diagram)
1Following May Be Purchased
1DO-IT-YOURSELF REPAIR MANUALS
2Top
2Top (Biscuit)
3WP62750 Whirlpool Spacer
4WP357213 Whirlpool Hinge Stopper
5Cabinet (Biscuit)
563424 Whirlpool Cabinet Assembly
6WP62780 Whirlpool Cabinet Clip
7WP308685 Whirlpool Microwave Screw
8WP3356311 Whirlpool Screw
93949247V Whirlpool Washer Lid Switch Assembly
13SCREW
15WP54584 Whirlpool Hinge
16WP91770 Whirlpool Hinge
17Bumper, Lid Hinge
18WP21258 Whirlpool Washer Lid Hinge Bearing
19Lid
19Lid (Biscuit)
20WP358684 Whirlpool Strike Assembly
22WP9724509 Whirlpool Bumper
28WP3390631 Whirlpool Screw
31WP90016 Whirlpool Clip
