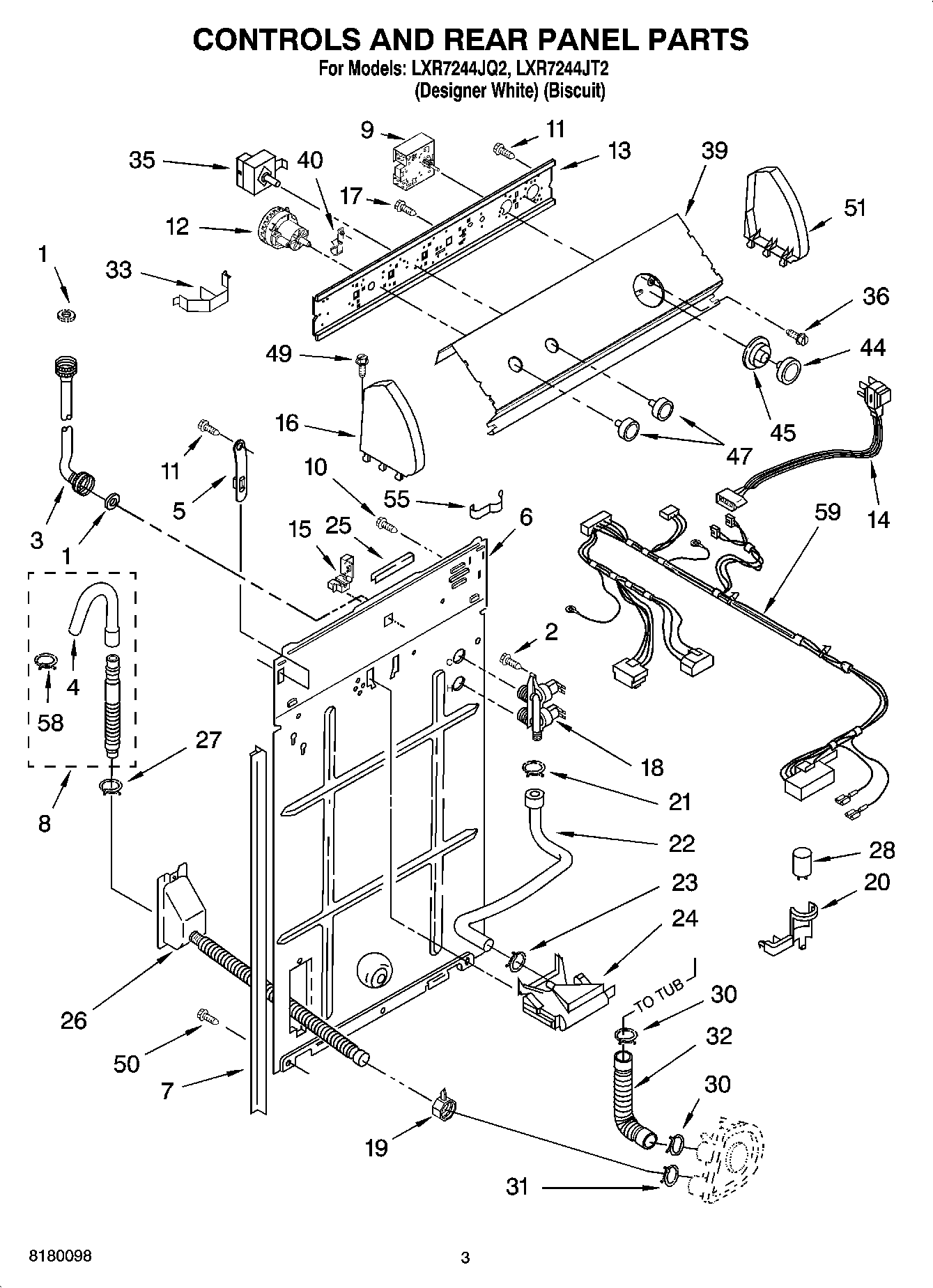

LXR7244JT2 02 – CONTROL AND REAR PANEL PARTS

LXR7244JT2 02 – CONTROL AND REAR PANEL PARTS

Written by

in

LXR7244JT2 02 – CONTROL AND REAR PANEL PARTS

Products

PositionProduct
1WP16123 Whirlpool Washer
2WP9740848 Whirlpool Dishwasher Screw
3WP89503 Whirlpool Washer Fill Hose
4WP3357027 Whirlpool Nozzle Assembly
5WP8568314 Whirlpool Strap
6WP3357978 Whirlpool Rear Panel
7WP62747 Whirlpool Pad
8285664 Whirlpool Drain Hose
8285702 Whirlpool Extensions
8285666 Whirlpool Drain Hose 10'
9WP8541939 Whirlpool Timer Assembly
10WP3351614 Whirlpool Screw
11WP90767 Whirlpool Screw
12W10337780 Whirlpool Pressure Switch
13WP3948608 Whirlpool Bracket
14Cord, Power (Includes Illus. 15)
15Strain Relief, Power Cord
16Cap, End (L.H.) (BIscuit)
173400073 Whirlpool Screw
18285805 Whirlpool Washer Water Inlet Valve
19Clamp, Hose
20Clip, Capacitor
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3347034 Whirlpool Vacuum Break
25Edge Protector
26WPW10358149 Whirlpool Hose
27WP356138 Whirlpool Hose Clamp
28CAPACITOR
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
33Clip, Harness & Pressure Hose
35Switch, Water Temperature
36WP3400818 Whirlpool Screw
39Panel, Console
39Panel, Console (Biscuit)
40Retainer, Harness
44W10807860 Whirlpool White Control Knob
44WP3957822 Whirlpool Knob
45Dial, Timer (Biscuit)
45WP3957849 Whirlpool Timer Dial
47WP3957799 Whirlpool Knob
473957797 Whirlpool Knob
49WP388326 Whirlpool Screw
50WP3390631 Whirlpool Screw
51WPL 8271362
51W10820038 Whirlpool Endcap
558528351 Whirlpool Clip
58WP3357331 Whirlpool Clamp
59Harness, Wiring (For Detail See Pages 9 & 10)
