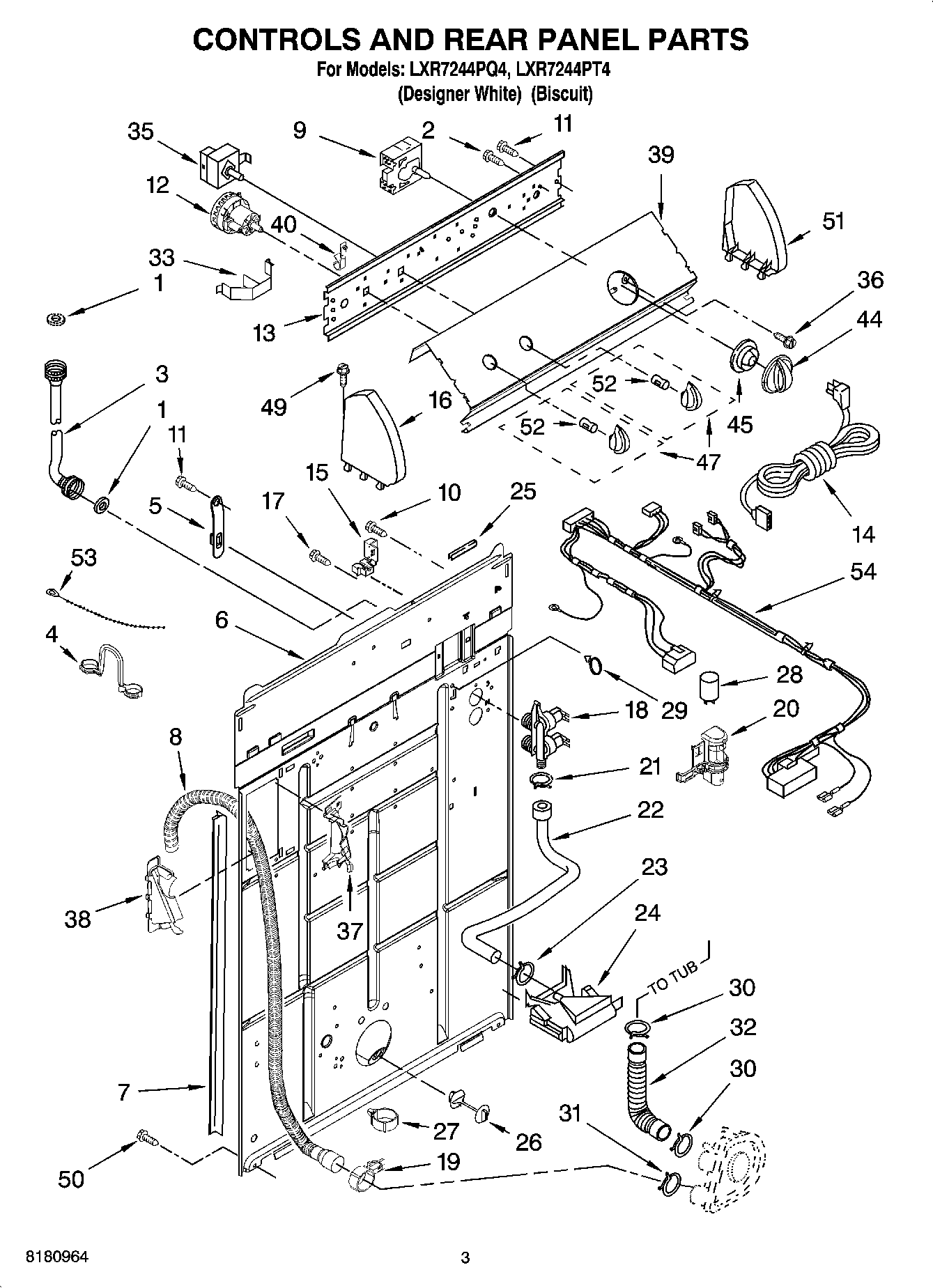

LXR7244PT4 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	WP16123 Whirlpool Washer
2	3400073 Whirlpool Screw
3	WP89503 Whirlpool Washer Fill Hose
3	FILL HOSE 5' W/WASHER
4	WP8577378 Whirlpool Retainer
5	WP8568314 Whirlpool Strap
6	Panel, Rear
7	WP62747 Whirlpool Pad
9	WP8541939 Whirlpool Timer Assembly
10	WP3351614 Whirlpool Screw
11	WP90767 Whirlpool Screw
12	W10337780 Whirlpool Pressure Switch
13	WP3948608 Whirlpool Bracket
14	Cord, Power (Includes Illus. 15)
15	Strain Relief, Power Cord
16	Cap, End (L.H.) (BIscuit)
17	WP9740848 Whirlpool Dishwasher Screw
18	285805 Whirlpool Washer Water Inlet Valve
19	8541668 Whirlpool Washer Clamp
20	Clip, Capacitor
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3347034 Whirlpool Vacuum Break
25	Edge Protector
26	WP8519200 Whirlpool Support Assembly
27	Clamp, Hose
28	CAPACITOR
29	8559320 Whirlpool Clip
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	Clip, Harness & Pressure Hose
35	Switch, Water Temperature
36	WP3400818 Whirlpool Screw
37	(Left Half)
38	WPW10096921 Whirlpool Hose
38	(Right Half)
39	Panel, Console
39	Panel, Console (White)
40	Retainer, Harness
44	Knob, Timer (White)
44	Knob, Timer (Biscuit)
45	WP8544947 Whirlpool Dial
45	Dial, Timer (Biscuit)
47	WPL 8544936
47	WPL 8544935
49	WP388326 Whirlpool Screw
50	WP3390631 Whirlpool Screw
51	W10820038 Whirlpool Endcap
51	WPL 8271362
52	WP8536939 Whirlpool Spring Clip
53	WPW10339879 Whirlpool Wire Tie
54	Miscellaneous Parts Bag
54	Harness, Wiring (For Detail See Pages
54	WPL ARI159171A
