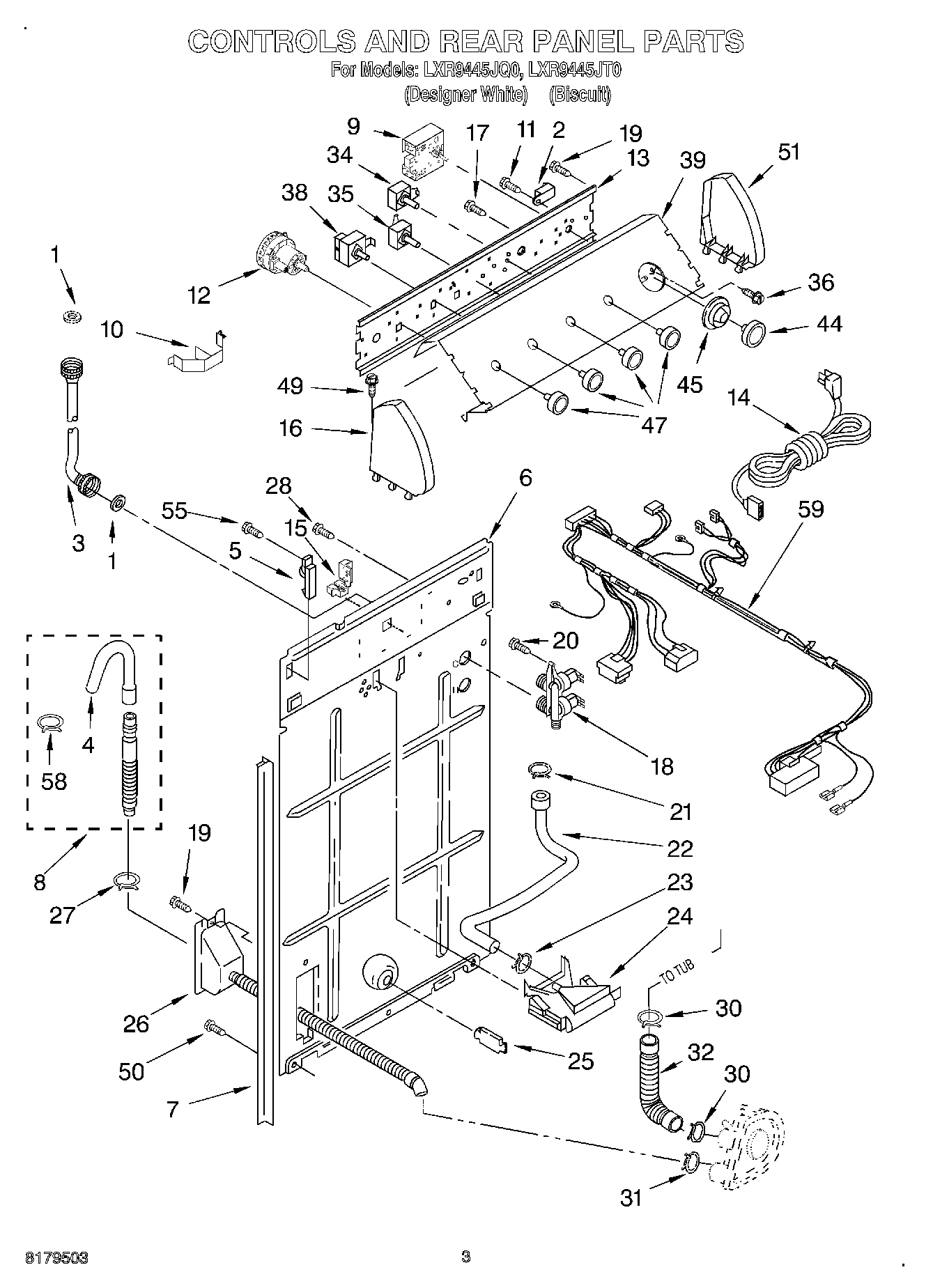

LXR9445JT0 02 – CONTROLS AND REAR PANEL

LXR9445JT0 02 – CONTROLS AND REAR PANEL

Written by

in

LXR9445JT0 02 – CONTROLS AND REAR PANEL

Products

PositionProduct
1WP16123 Whirlpool Washer
2WP694419 Whirlpool Buzzer Adjuster
3WP89503 Whirlpool Washer Fill Hose
4WP3357027 Whirlpool Nozzle Assembly
5Hinge, Console (2)
6WP3357978 Whirlpool Rear Panel
7WP62747 Whirlpool Pad
8285702 Whirlpool Extensions
8285666 Whirlpool Drain Hose 10'
8285664 Whirlpool Drain Hose
9Timer, Control (60 Hz.) (Motor Not A Service Part)
10Clip, Harness & Pressure Hose
11WP90767 Whirlpool Screw
12W10335056 Whirlpool Water Level Pressure Switch
13WP3948608 Whirlpool Bracket
14W10820044 Whirlpool Power Cord
15Strain Relief, Power Cord
16Cap, End (L.H.) (BIscuit)
173400073 Whirlpool Screw
18285805 Whirlpool Washer Water Inlet Valve
20WP9740848 Whirlpool Dishwasher Screw
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3347034 Whirlpool Vacuum Break
25WP8519200 Whirlpool Support Assembly
26WPW10358149 Whirlpool Hose
27WP356138 Whirlpool Hose Clamp
28WP3351614 Whirlpool Screw
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
34W10851055 Whirlpool Cycle Switch
35WPW10168257 Whirlpool Cycle Switch
36W10915367 Whirlpool Screw Assembly
38Switch, Water Temperature
39Panel, Console (Biscuit)
39Panel, Console (White)
44W10807860 Whirlpool White Control Knob
44WP3957822 Whirlpool Knob
45WP3957849 Whirlpool Timer Dial
45Dial, Timer (Biscuit)
473957797 Whirlpool Knob
47WP3957799 Whirlpool Knob
49WP388326 Whirlpool Screw
50WP3390631 Whirlpool Screw
51WPL 8271362
51W10820038 Whirlpool Endcap
55WP488729 Whirlpool Refrigerator Door Screw
58WP3357331 Whirlpool Clamp
59WPL 3954716
