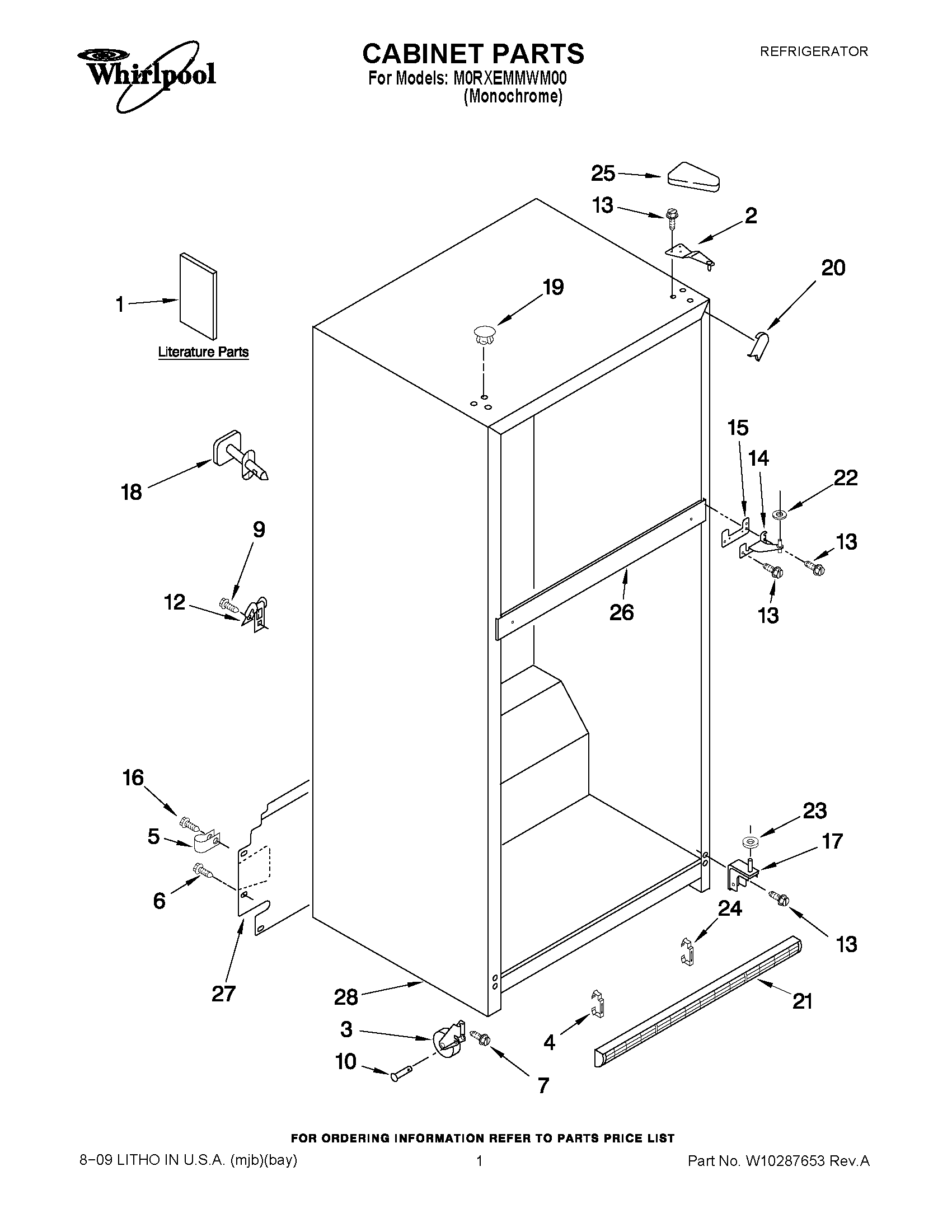

M0RXEMMWM00 01 – CABINET PARTS

Products

Position	Product
1	DO-IT-YOURSELF MANUAL, REF./ FZR.
1	USE & CARE GUIDE (BILINGUAL)
1	Service & Wiring Sheet
1	Modular Icemaker Service Sheet
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	WP2166108 Whirlpool Refrigerator Cabinet Roller
4	CLIP, GRILLE
5	WP488366 Whirlpool Refrigerator Clamp
6	WP489427 Whirlpool Refrigerator Screw
7	WP3400504 Whirlpool Refrigerator Screw
9	WP489442 Whirlpool Refrigerator Screw
10	W11594405 Whirlpool Axle
12	549193 Whirlpool Refrigerator Power Clamp
13	WP489497 Whirlpool Screw
14	WP2254618 Whirlpool Center Door Hinge
15	WP2183852 Whirlpool Refrigerator Shim
16	WP489464 Whirlpool Refrigerator Screw
17	WP2254473 Whirlpool Refrigerator Door Hinge
19	WPW10520307 Whirlpool Refrigerator Replacement Plug Button
20	W10851579 Whirlpool Refrigerator Filler
21	GRILLE (INCLUDES ILLUS. 4 & 24)
22	WP489467 Whirlpool Hinge Shim
23	WP487576 Whirlpool Washer
24	2254385 Whirlpool Refrigerator Clip
25	W10853622 Whirlpool Refrigerator Cover
27	Cover, Unit
28	CABINET (NOT A SERVICEABLE PART)
