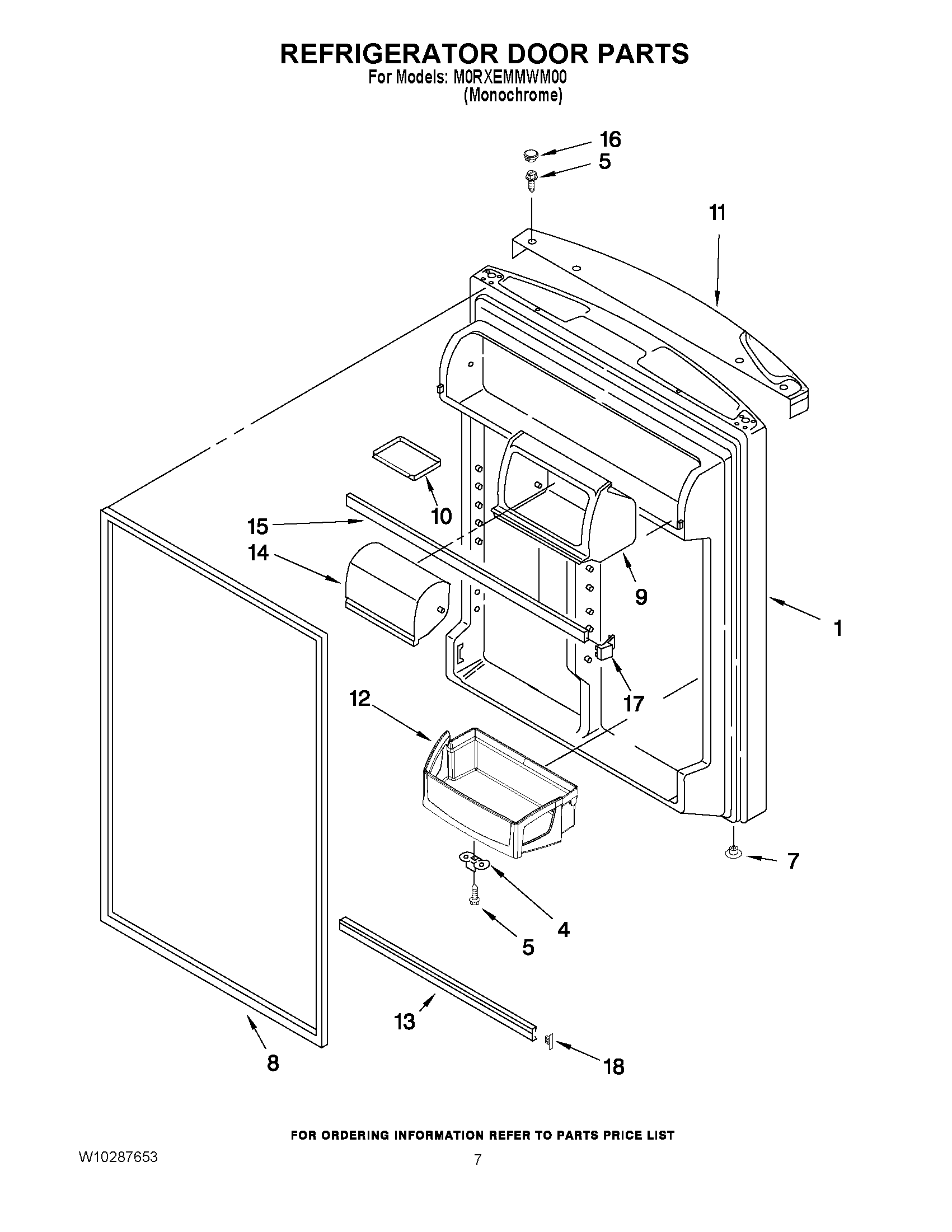

M0RXEMMWM00 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1REFRIGERATOR DOOR (INCLUDES ILLUS. 6 & 8)
4W11745278 Whirlpool Bracket
5WP681249 Whirlpool Screw Assembly
7PLUG, HINGE SLEEVE (GREY)
8W11624977 Whirlpool Refrigerator FIP Gasket
9Housing Compartment
10Tray, Door
11HANDLE
12Bin, Door (3)
13WPW10421484 Whirlpool Refrigerator Door Trim
14DOOR-COMP
15WP2159312 Whirlpool Refrigerator Door Trim
16Hole Plug, Endcap (Apollo Grey)
17Endcap, Door Trim
18WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
