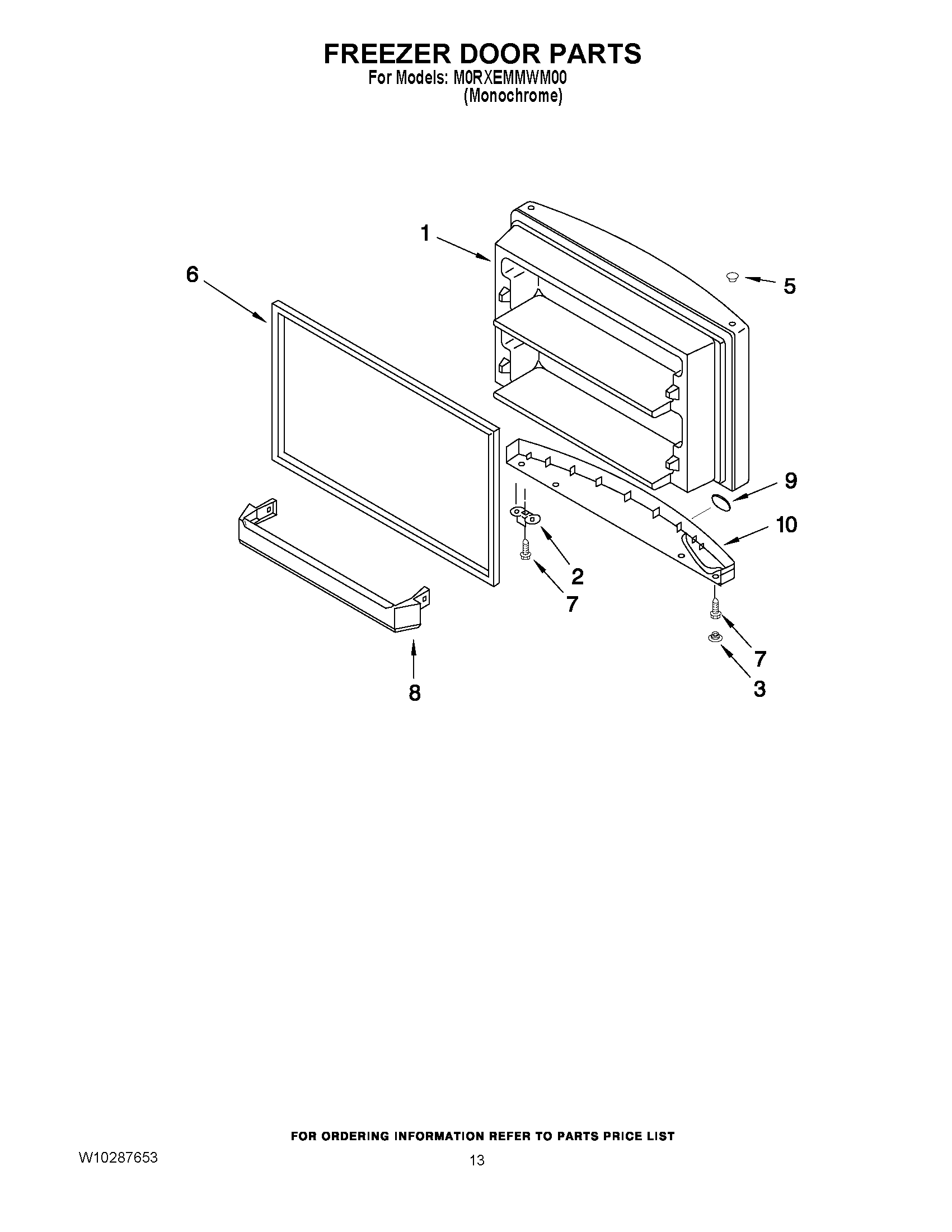

M0RXEMMWM00 07 – FREEZER DOOR PARTS

Written by

Products

Position	Product
1	FREEZER DOOR (INCLUDES ILLUS. 4 & 6)
2	W11745278 Whirlpool Bracket
3	Hole Plug, Endcap (Apollo Grey)
5	PLUG, HINGE SLEEVE (GREY)
6	W11624958 Whirlpool Refrigerator FIP Gasket
7	WP681249 Whirlpool Screw Assembly
8	Trivet, Door
9	WPW10170766 Whirlpool Nameplate
10	HANDLE
