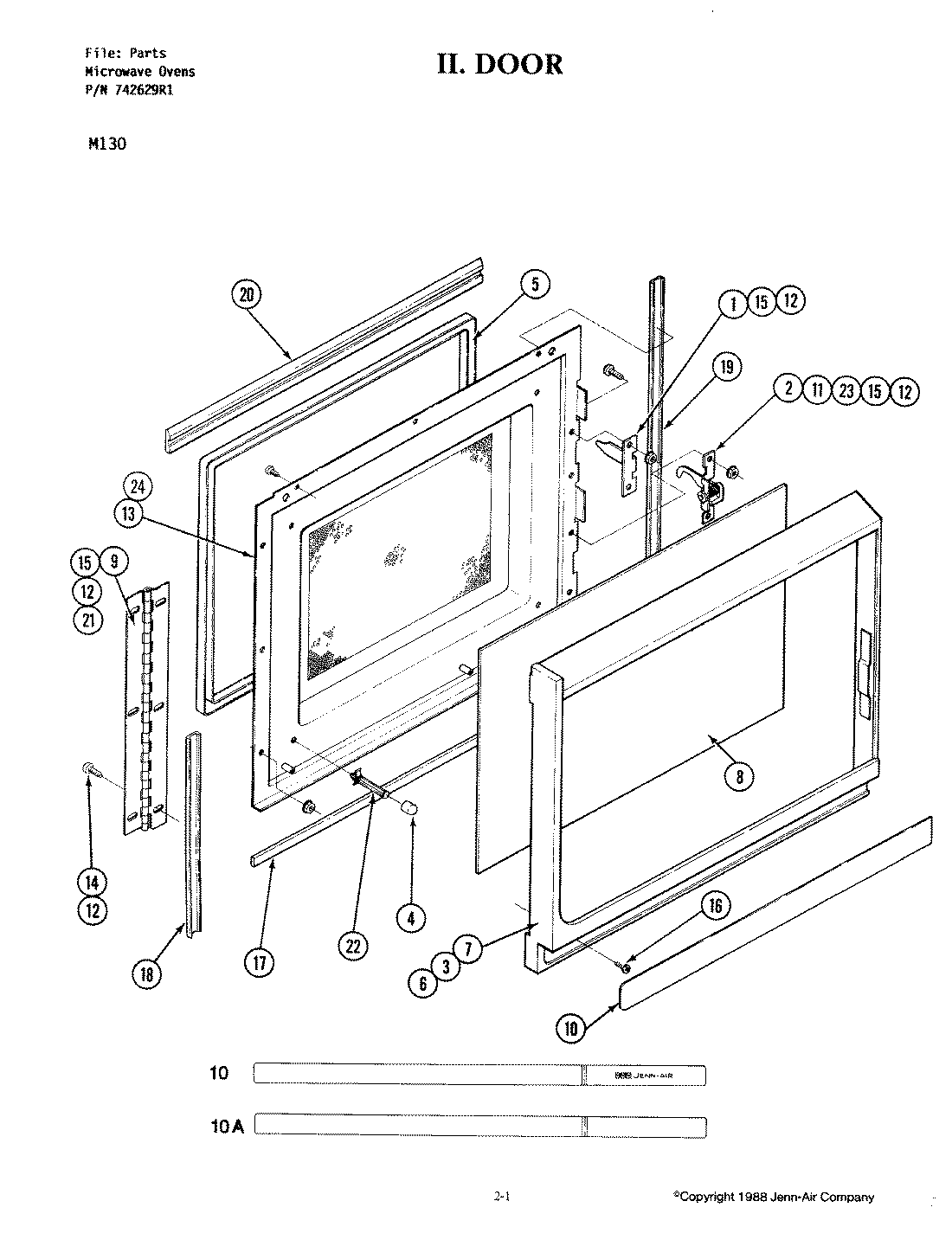

M130 03 – DOOR

Products

Position	Product
1	ACTIVATOR, MONITOR
2	BRACKET, DOOR LATCH
3	BRACKET, DOOR TRIM
4	MAY Y790113
5	MAY Y790114
6	EXTRUSION, HANDLE
7	FRAME-DOOR
8	GLASS, DOOR
9	MAY Y790118
10	INSERT (LOGO)
10	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
10	MAY 02100105
11	LATCH-DOOR
12	NUT
13	PANEL-INNER
14	SCREW
15	SCREW
16	SCREW
17	SEAL-BOTTOM
18	SEAL, HINGE SIDE
19	SEAL, LATCH SIDE
20	SEAL, TOP
21	SHIM, DOOR HINGE
22	SPACER, DOOR WINDOW
23	SPRING, DOOR LATCH
23	TAPE (DOUBLE-SIDED)
24	WINDOW, POLYESTER
