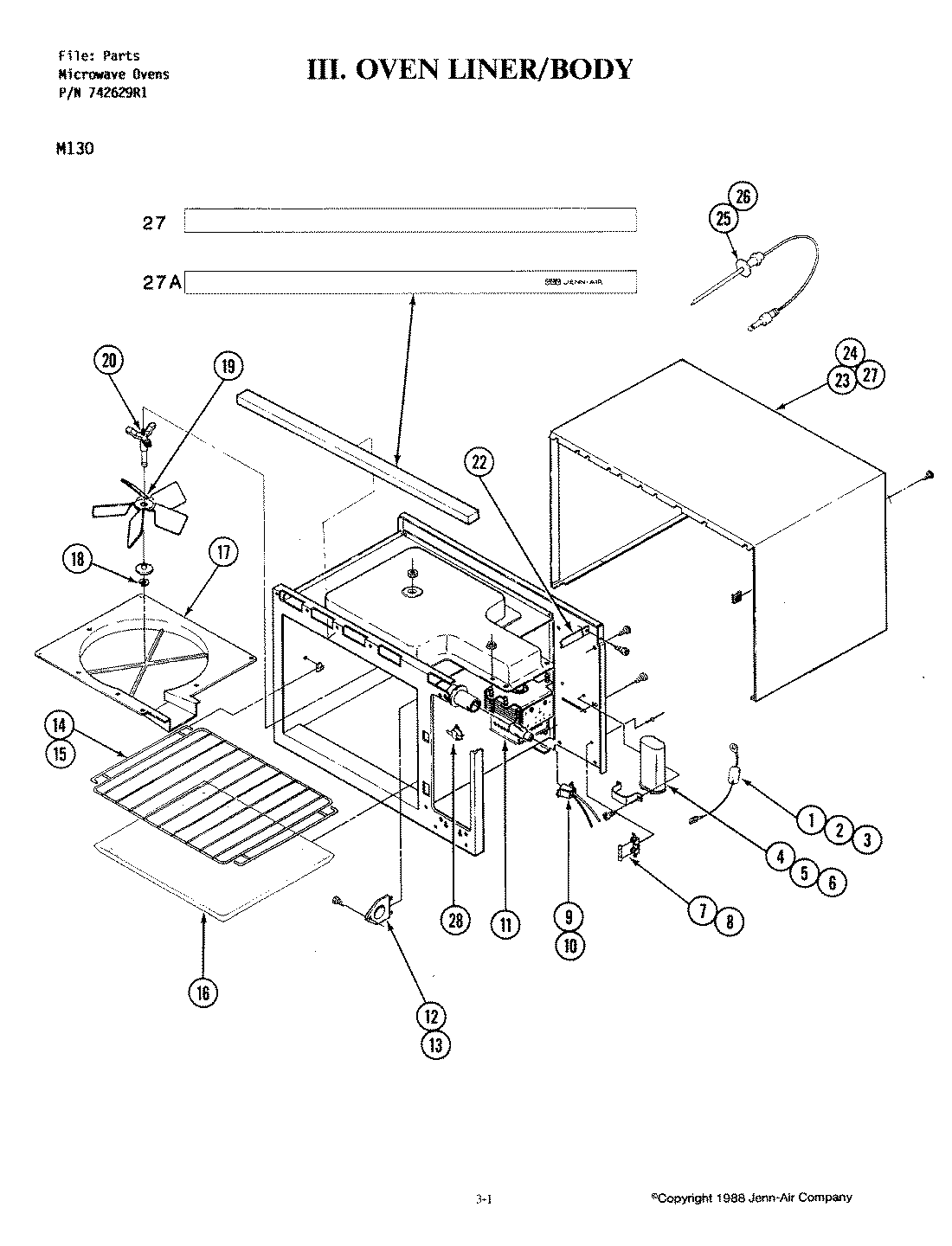

M130 05 – OVEN LINER-BODYadmin2025-04-26T09:24:49+00:00M130 05 – OVEN LINER-BODY
Products
| Position | Product |
|---|
| 1 | DIODE |
| 2 | SCREW |
| 3 | NUT |
| 4 | CAPACITOR |
| 5 | BRACKET |
| 6 | SCREW |
| 7 | CLIP, FUSE |
| 8 | FUSE |
| 9 | SOCKET, LAMP |
| 10 | LAMP |
| 11 | MAGNETRON |
| 12 | LENS, LAMP |
| 14 | RACK, OVEN |
| 15 | SUPPORT, RACK |
| 16 | SHELF, GLASS |
| 17 | MAY Y03110050 |
| 17 | COVER, STIRRER |
| 18 | CLIP, STIRRER |
| 19 | BLADE, BUSHING ASSEMBLY |
| 20 | SHAFT, STIRRER |
| 21 | NUT, SHAFT STIRRER |
| 22 | BRACE, SUPPORT (UPPER) |
| 23 | CABINET |
| 24 | CLIP, CABINET |
| 25 | PROBE, TEMP |
| 26 | JACK, PROBE |
| 27 | MAY 02100177 |
| 27 | TRIM, TOP (NO LOGO) |
| 27 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 28 | MAY Y01180008 |
