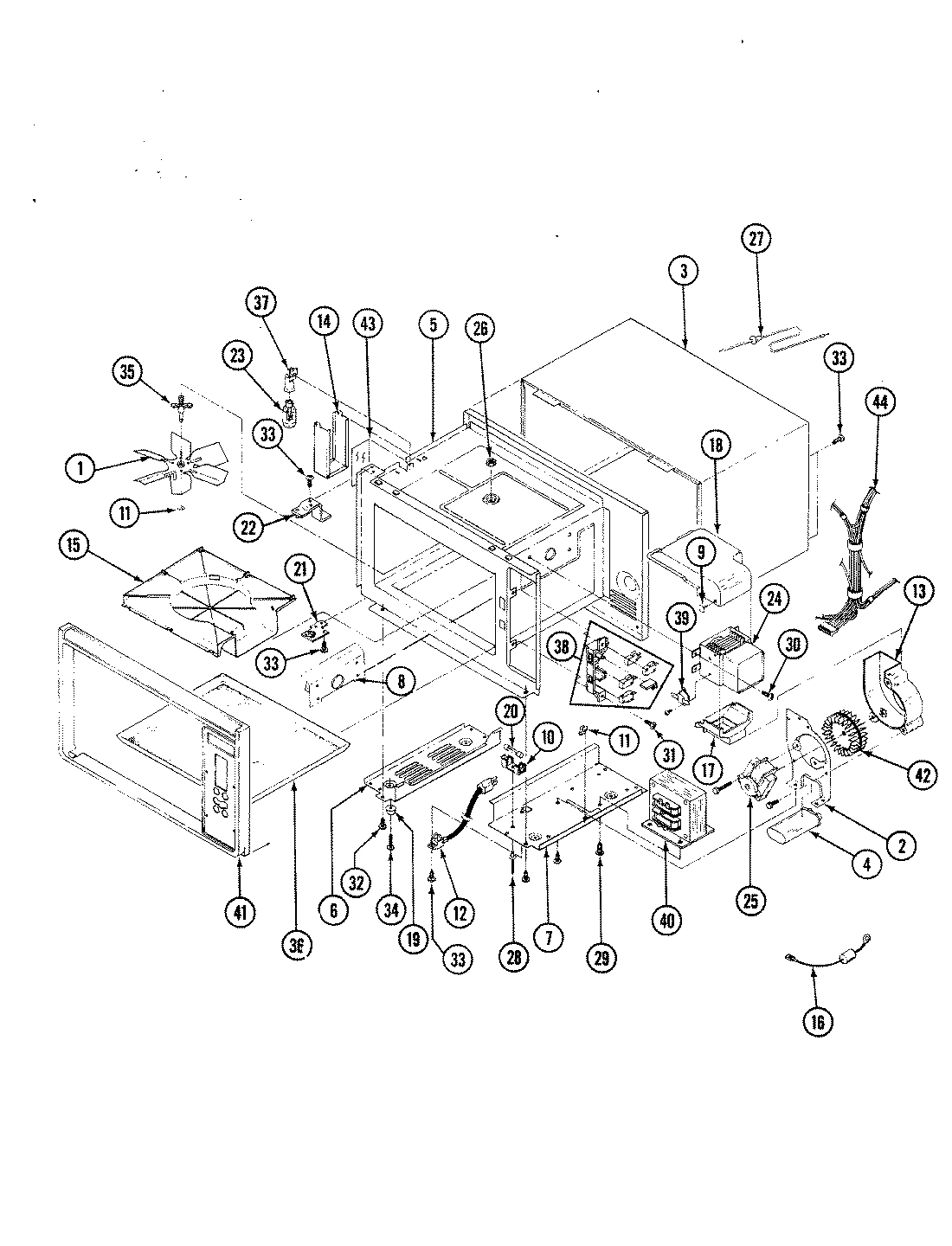

M15B-7P-W1 01 – BASE\CAVITY & COOLING SYSTEM
Written by
in
M15B-7P-W1 01 – BASE\CAVITY & COOLING SYSTEM
Products
Position
Product
1
MAY 04021042
1
MAY 04021090
2
MAY 03140018
2
MAY 03140019
2
MAY 02360046
2
MAY Y02030136
3
MAY 02140053
4
MAY Y01020021
5
MAY 04021366
6
MAY 02090005
7
MAY 02090006
8
NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
9
MAY 03110061
10
MAY Y01100036
11
MAY Y03110055
12
MAY 02300040
12
MAY 01080053
13
MAY Y02300032
14
MAY 02300034
14
MAY Y02300031
15
MAY Y02300029
16
MAY Y04010206
17
MAY 02170123
18
MAY 02170124
19
MAY Y02230008
20
MAY 02310157
20
MAY Y01050005
21
MAY 04021036
22
MAY 01170008
22
MAY 04021035
23
25T8DC Bulb
24
MAY 01040005
25
MAY 01110020
25
MAY 03050035
26
MAY 03050007
26
MAY 02040094
27
MAY 01220006
28
MAY Y03060004
29
MAY 03010094
30
MAY 03010098
31
MAY 03010142
32
MAY 03010143
33
MAY 03020030
34
MAY 03020077
35
MAY 02360045
36
MAY Y02280016
36
MAY Y02280039
37
MAY 03030011
37
MAY Y01100040
38
MAY 01140052
39
MAY Y01180008
39
MAY 8270P006-60
39
MAY 8270P005-60
39
MAY 8270P003-60
40
MAY 01130027
41
MAY 02100137
42
MAY Y01110017
43
MAY 02220084
44
MAY 04060522
44
MAY 04060523
44
MAY 04060521
44
MAY 04010184
←
