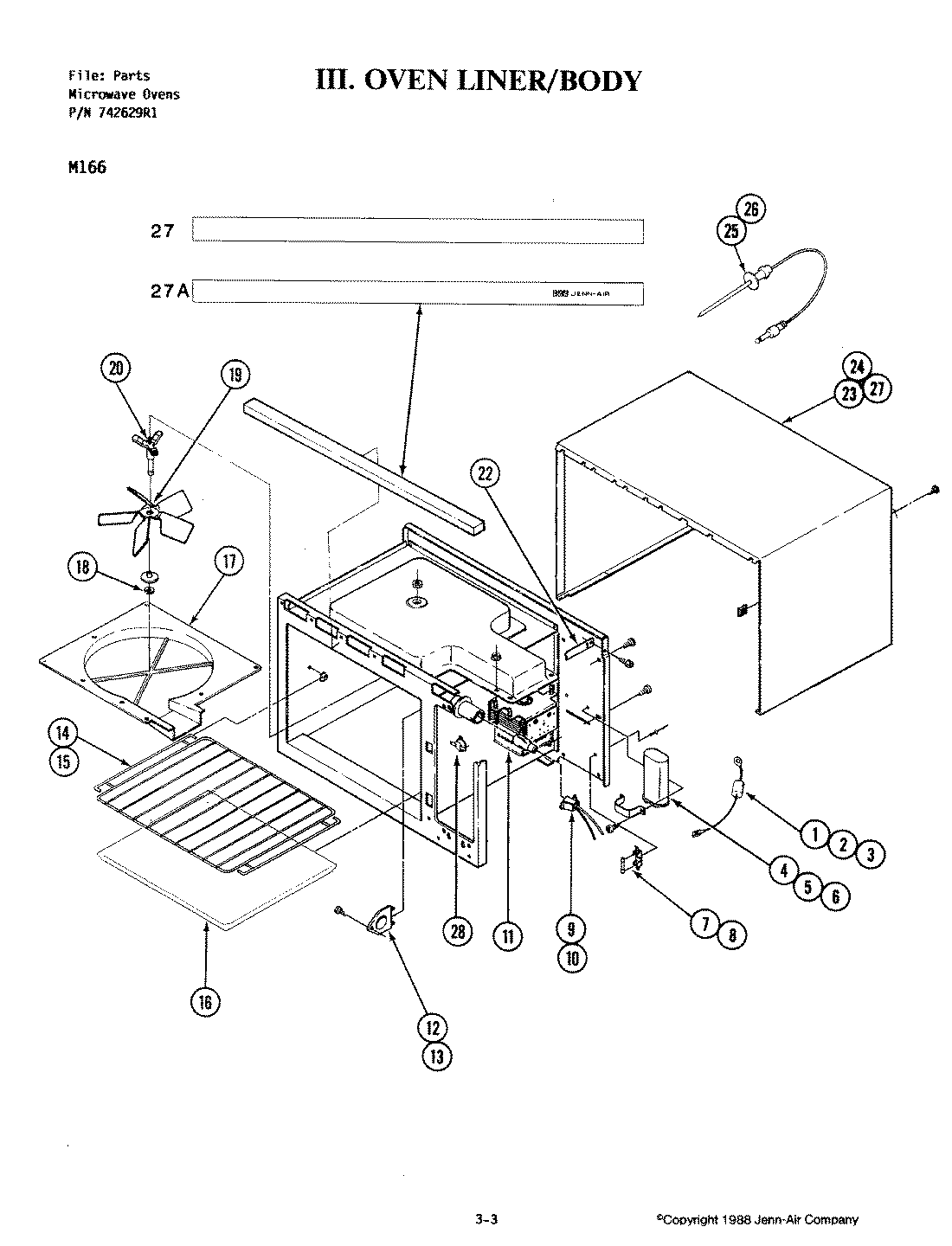

M166 06 – OVEN LINER-BODY (M166)

M166 06 – OVEN LINER-BODY (M166)

Written by

in

M166 06 – OVEN LINER-BODY (M166)

Products

PositionProduct
1MAY Y04010206
1DIODE
2MAY Y03010144
2SCREW
3NUT
4MAY Y01020023
4CAPACITOR
5BRACKET
5MAY 02030123
6MAY Y03020076
7CLIP, FUSE
7MAY Y01100036
8FUSE
8MAY Y01050005
9SOCKET, LAMP
9MAY 01100045
1025T8DC Bulb
10LAMP
11MAGNETRON
11MAY 01040004
12MAY Y02400007
12LENS, LAMP
13MAY 03010098
13SCREW
14RACK, OVEN
14MAY Y02410004
15MAY 02010031
15SUPPORT, RACK
16MAY Y02280024
16SHELF, GLASS
17MAY Y02300045
17MAY Y03110050
17COVER, STIRRER
18CLIP, STIRRER
18MAY Y03110055
19BLADE, BUSHING ASSEMBLY
19MAY 04021190
20SHAFT, STIRRER
20MAY 02360045
21MAY 03050007
21NUT, SHAFT STIRRER
22BRACE, SUPPORT (UPPER)
22MAY 02020020
23MAY 02140070
23CABINET
24CLIP, CABINET
24MAY 03110046
25MAY 01220002
25PROBE, TEMP
26MAY 01170008
26JACK, PROBE
27MAY 02100177
27TRIM, TOP (NO LOGO)
28MAY Y01180008
29MAY 02240682
