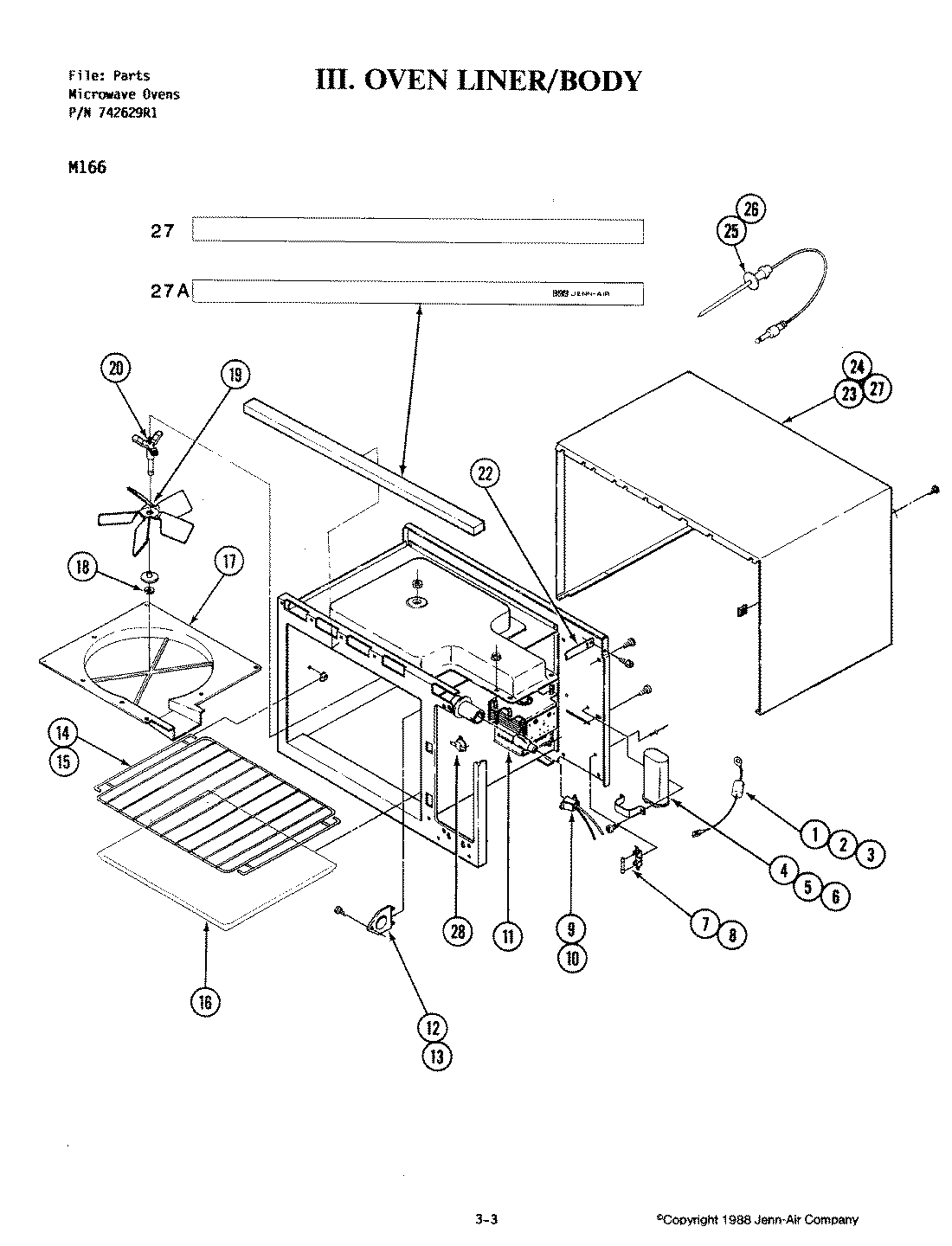

M166W 06 – OVEN LINER-BODY (M166)

M166W 06 – OVEN LINER-BODY (M166)

Written by

in

M166W 06 – OVEN LINER-BODY (M166)

Products

Position	Product
1	DIODE
2	MAY Y03010144
2	SCREW
3	NUT
4	CAPACITOR
4	MAY Y01020023
5	BRACKET
5	MAY 02030123
6	MAY Y03020076
7	MAY Y01100036
7	CLIP, FUSE
8	FUSE
8	MAY Y01050005
9	MAY 01100045
9	SOCKET, LAMP
10	LAMP
10	25T8DC Bulb
11	MAGNETRON
11	MAY 01040004
12	MAY Y02400007
12	LENS, LAMP
13	SCREW
13	MAY 03010098
14	RACK, OVEN
14	MAY Y02410004
15	MAY 02010031
15	SUPPORT, RACK
16	MAY Y02280024
16	SHELF, GLASS
17	MAY Y03110050
17	MAY Y02300045
17	COVER, STIRRER
18	CLIP, STIRRER
18	MAY Y03110055
19	MAY 04021190
19	BLADE, BUSHING ASSEMBLY
20	MAY 02360045
20	SHAFT, STIRRER
21	NUT, SHAFT STIRRER
21	MAY 03050007
22	MAY 02020020
22	BRACE, SUPPORT (UPPER)
23	CABINET
23	MAY 02140070
24	CLIP, CABINET
24	MAY 03110046
25	PROBE, TEMP
25	MAY 01220002
26	JACK, PROBE
26	MAY 01170008
27	MAY 02100177
27	TRIM, TOP (NO LOGO)
28	MAY Y01180008
29	MAY 02240682
