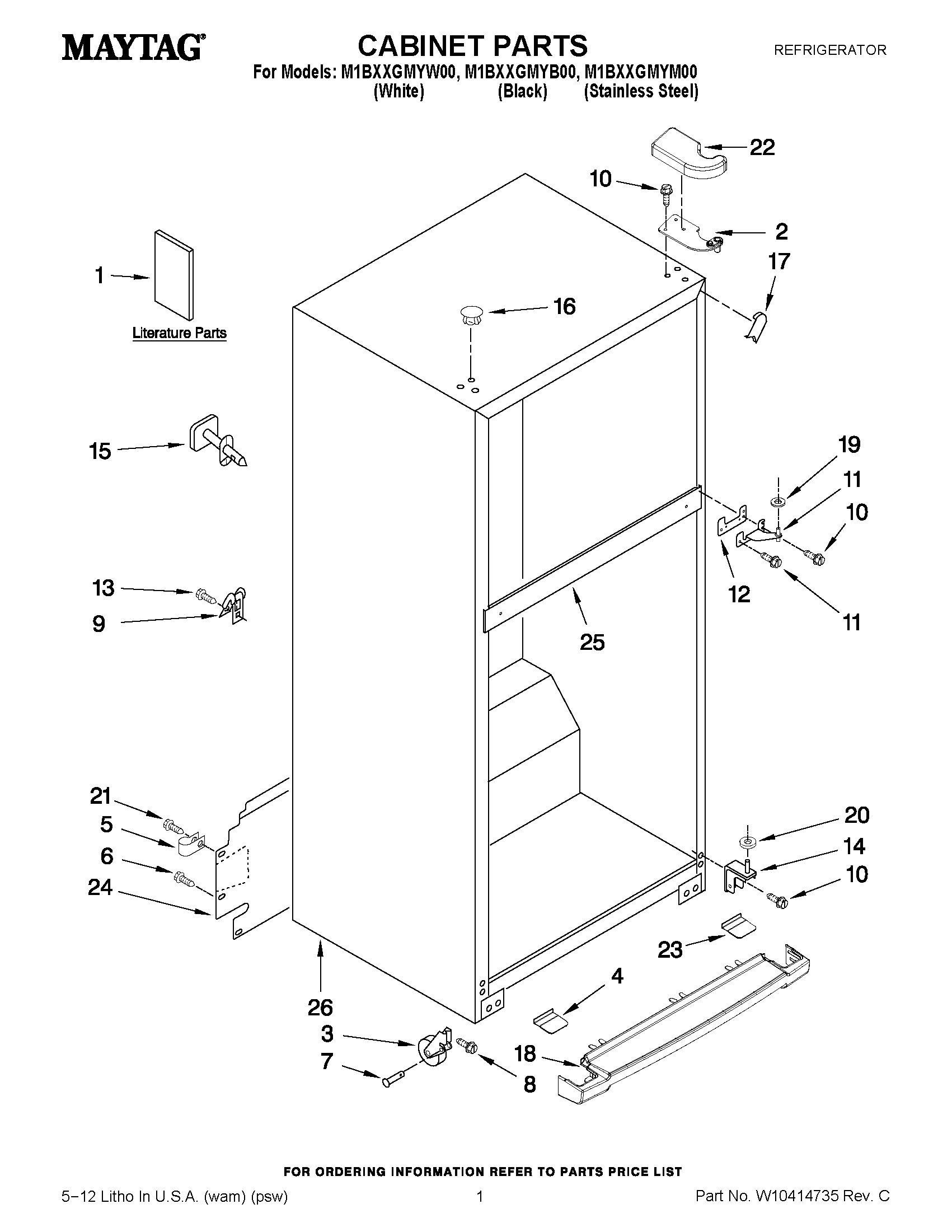

M1BXXGMYB00 01 – CABINET PARTS

Products

Position	Product
1	DO-IT-YOURSELF MANUAL REF./ FRZ.
1	MAY W10414768
1	MAY W10360533
1	ENERGY GUIDE
1	ICEMAKER SERVICE SHEET
2	HINGE (TOP)
3	MAY 2166108
4	COVER, TOE GRILLE (GREY)
4	ENDCAP, GRILLE (WHITE)
4	ENDCAP, GRILLE (BLACK)
5	CLAMP, TUBE
6	MAY 489442
7	MAY 2179826
8	MAY W10142287
9	MAY 549193
10	MAY 489497
11	MAY 2254618
12	MAY 2183852
13	MAY 8281265
14	MAY 2254473
16	PLUG, HOLE (GREY)
16	MAY 2183998
16	HOLE PLUG
17	FILLER, CORNER (GREY)
17	CORNER FILLER (WHITE)
17	CORNER FILLER (BLACK)
18	MAY W10353942
18	MAY W10326387
18	MAY W10353944
19	WASHER, PLASTIC
20	Washer (1/16)
21	MAY 489427
22	COVER, HINGE (RIGHT HAND (GREY))
22	COVER, HINGE (LEFT HAND (GREY))
22	COVER, HINGE (BLACK, LS)
22	COVER, HINGE (WHITE, LS)
22	COVER, HINGE (BLACK, RS)
22	COVER, HINGE (WHITE, RS)
23	ENDCAP, GRILLE HINGE (WHITE)
23	ENDCAP, GRILLE HINGE (BLACK)
23	ENDCAP, GRILLE HINGE (MIDNIGHT GREY)
24	MAY 2254576
26	LINER (NOT A SERVICEABLE PART)
