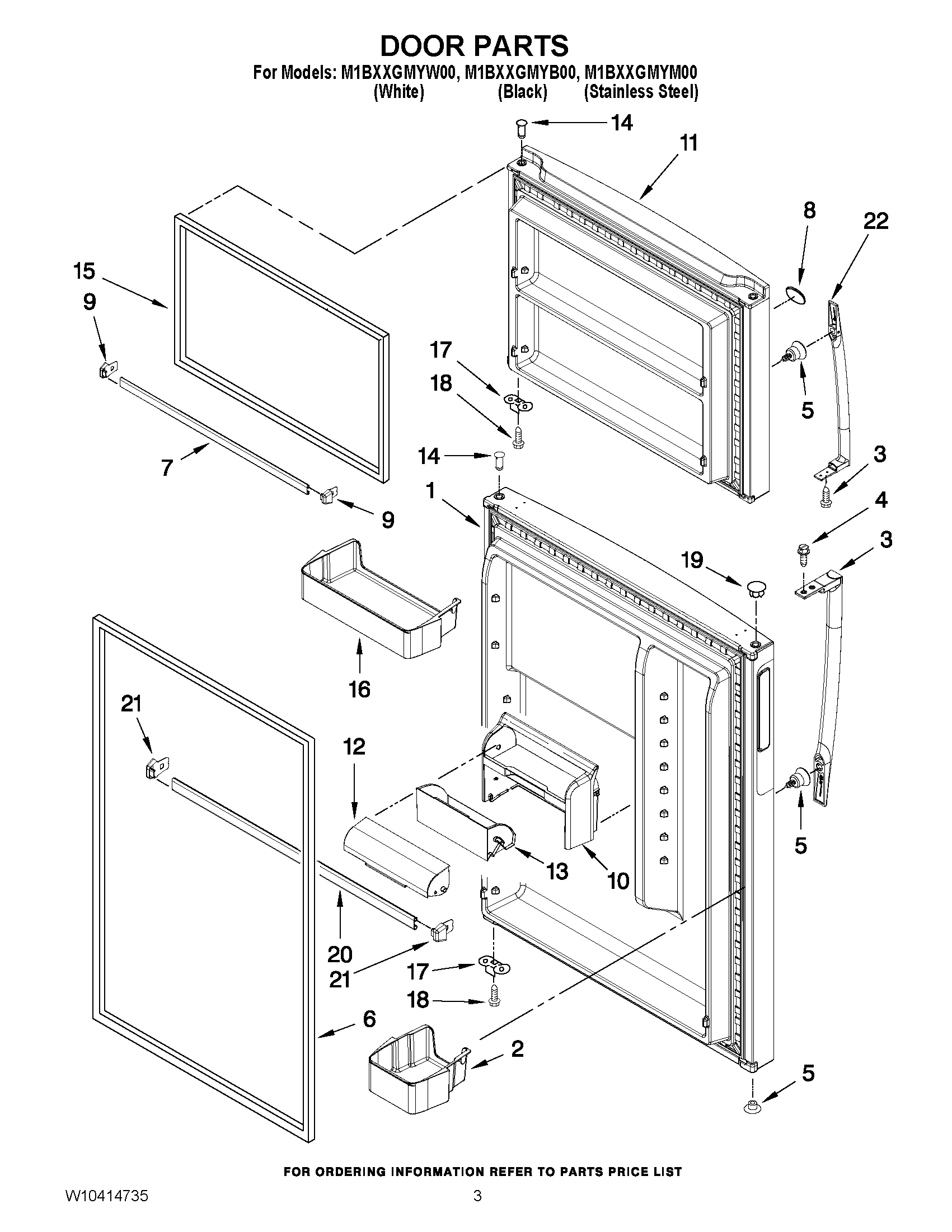

M1BXXGMYB00 02 – DOOR PARTS

M1BXXGMYB00 02 – DOOR PARTS

Written by

in

M1BXXGMYB00 02 – DOOR PARTS

Products

PositionProduct
1DOOR, REFRIGERATOR (INCLUDES ITEMS 6 AND 14) (WHITE)
1DOOR, REFRIGERATOR (INCLUDES ITEMS 6 AND 14) (STAINLESS STEEL)
1DOOR, REFRIGERATOR (INCLUDES ITEMS 6 AND 14) (BLACK)
2BIN, MEDIUM
4MAY 8534058
5MAY W10129563
6MAY 2202875
6GASKET, DOOR (GREY)
6MAY 2202882
7TRIM, DOOR
8Nameplate
10HOUSING COMPARTMENT
11DOOR, FREEZER (INCLUDES ITEMS 14 AND 15) (STAINLESS STEEL)
11DOOR, FREEZER (INCLUDES ITEMS 14 AND 15) (WHITE)
11DOOR, FREEZER (INCLUDES ITEMS 14 AND 15) (BLACK)
12COMPARTMENT DOOR
13MAY W10356444
14MAY W10334042
15GASKET, DOOR (GREY)
15MAY 2214967
15MAY 2214969
16MAY W10331763
17MAY 2189202
18MAY 489276
19PLUG, HOLE (GREY)
19MAY 2212648
19Hole Plug (Black)
20MAY W10308874
21ENDCAP, TRIM LS
21ENDCAP, TRIM RS
22HANDLE, FREEZER (WHITE)
22HANDLE, FREEZER (BLACK)
22HANDLE, FREEZER (TITANIUM SPARKLE)
