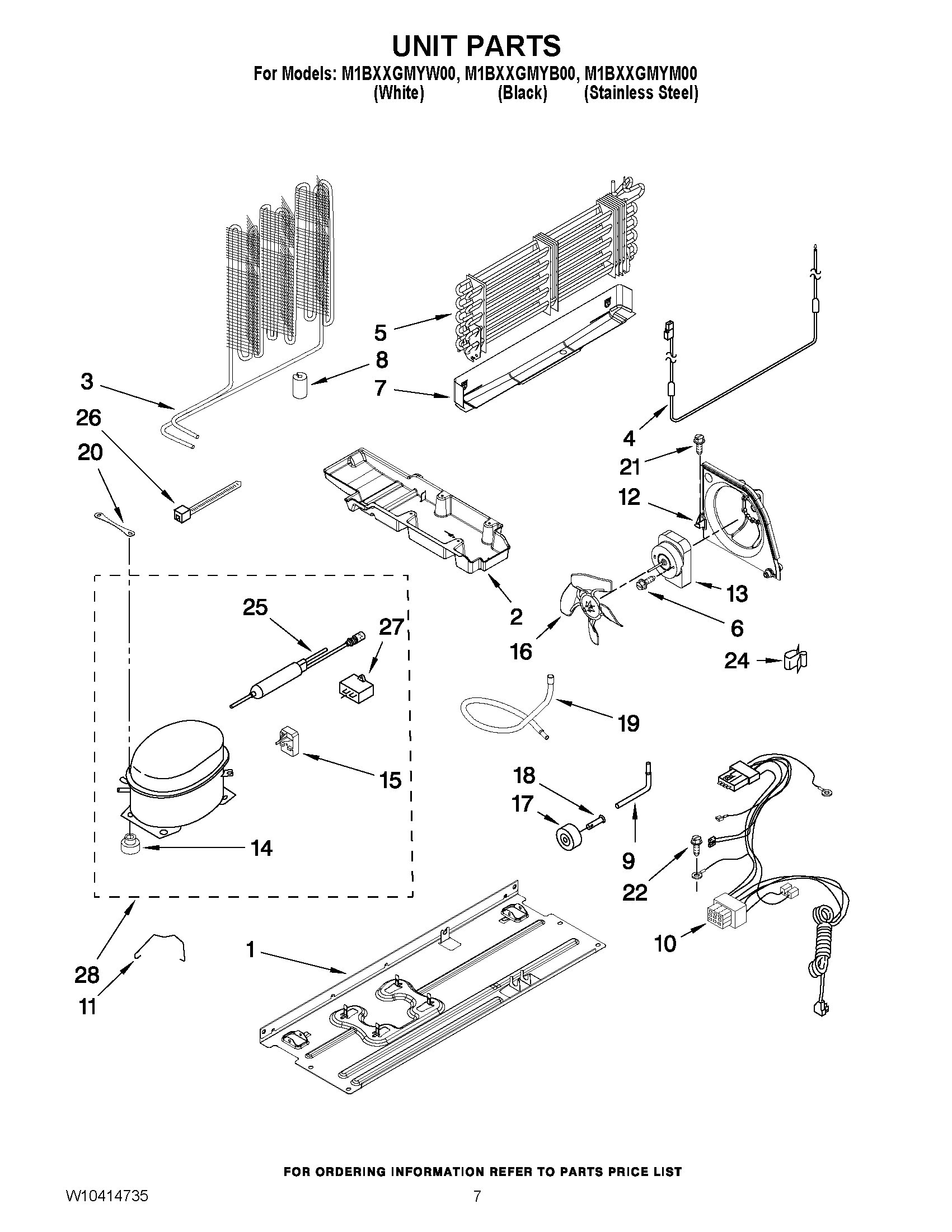

M1BXXGMYM00 04 – UNIT PARTS

Products

Position	Product
NI	Valve, Access (1/2“)
NI	MAY 876764
NI	VALVE, ACCESS (1/4“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (3/8“)
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (5/8“)
NI	Valve, Access (3/4“)
1	PLATE, UNIT MOUNTING
2	MAY W10466213
3	MAY W10414237
4	MAY W10316428
5	EVAPORATOR ASSY.
7	MAY W10314195
8	GROMMET, CONDENSER
9	MAY 2154109
10	ASSEMBLY, UNIT WIRE
11	Clip, Retaining
12	MAY 2315541
13	MOTOR, CONDENSOR
14	GROMMET
14	Grommet (Production)
15	MAY W10136414
15	START DEVICE, COMBINATION (START RELAY AND OVERLOAD FOR PRODUCTION COMPRESSOR ONLY) (PRODUCTION)
16	MAY W10139483
17	Roller
18	MAY 2221797
19	MAY W10466682
20	MAY W10236396
21	MAY 8533961
22	MAY 488500
24	MAY 2326941
25	Drier
25	Drier
26	MAY 2263990
27	Capacitator (Production)
27	CAPACITATOR (SERVICE)
28	MAY W10253005
