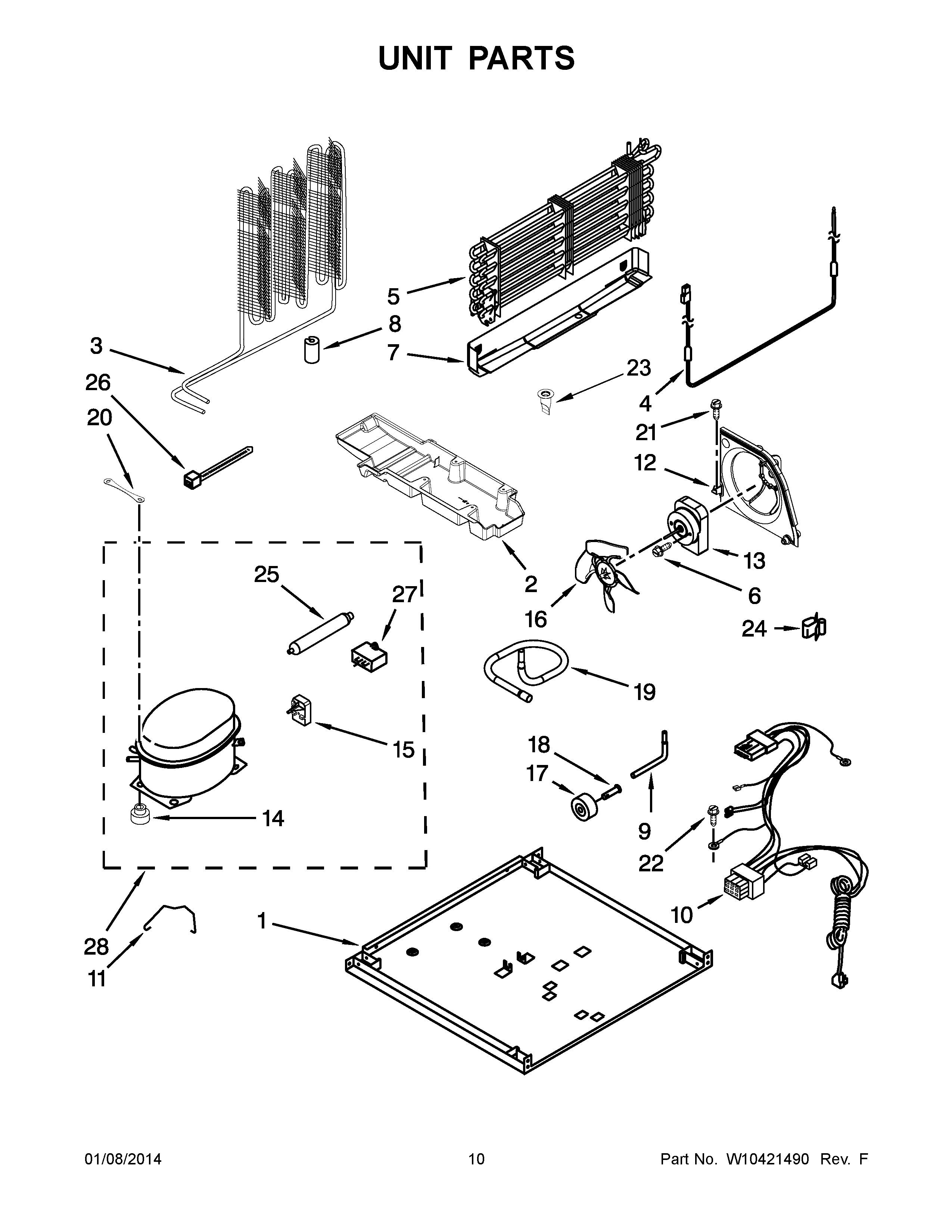

M1BXXLZYB00 06 – UNIT PARTSadmin2025-04-26T09:25:06+00:00M1BXXLZYB00 06 – UNIT PARTS
Products
| Position | Product |
|---|
| NI | MAY 876764 |
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | Valve, Access (3/4``) |
| NI | Valve, Access (5/8``) |
| NI | Valve, Access (1/2``) |
| NI | VALVE, ACCESS (3/8``) |
| NI | Valve, Access (5/16``) |
| NI | VALVE, ACCESS (1/4``) |
| 1 | PLATE, UNIT MOUNTING |
| 2 | MAY W10466213 |
| 3 | MAY W10414237 |
| 4 | MAY W10316428 |
| 5 | EVAPORATOR ASSY. |
| 7 | MAY W10314195 |
| 8 | GROMMET, CONDENSER |
| 9 | MAY VS20001 |
| 10 | ASSEMBLY, UNIT WIRE |
| 11 | Clip, Retaining |
| 12 | MAY 2315541 |
| 13 | MAY W10508362 |
| 14 | GROMMET |
| 15 | START DEVICE, COMBINATION (START RELAY AND OVERLOAD FOR PRODUCTION COMPRESSOR ONLY) (PRODUCTION) |
| 16 | MAY W10139483 |
| 17 | Roller |
| 18 | MAY 2221797 |
| 19 | MAY W10466682 |
| 20 | MAY W10236396 |
| 21 | MAY 8533961 |
| 22 | MAY 488500 |
| 23 | VALVE, DRAIN |
| 24 | MAY 939054 |
| 25 | DRIER (PRODUCTION) |
| 26 | MAY 2263990 |
| 27 | CAPACITATOR (SERVICE) |
| 28 | MAY W10253005 |
