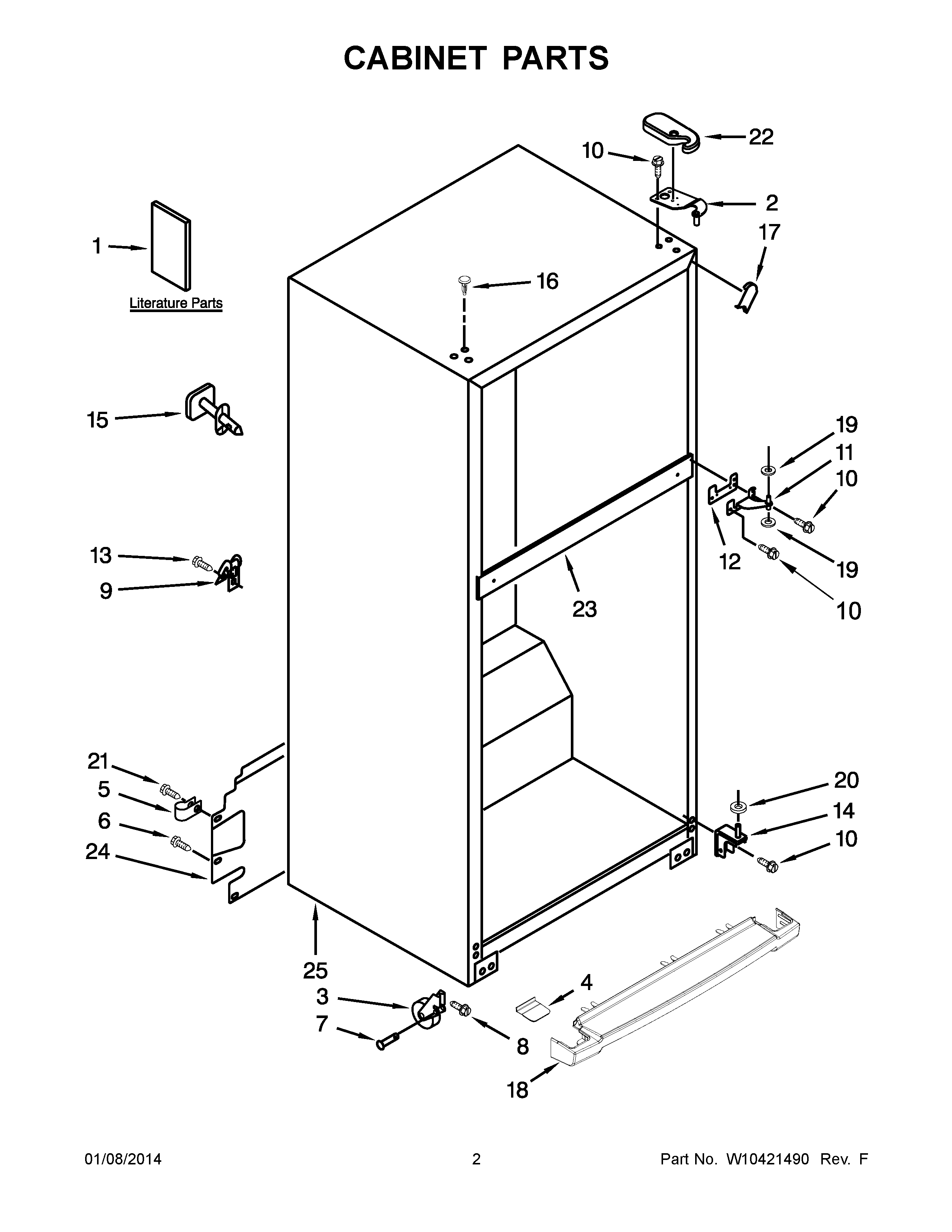

M1BXXLZYM00 02 – CABINET PARTS

Products

Position	Product
1	MAY W10551695
1	MAY W10536508
1	ENERGY GUIDE
1	ICEMAKER SERVICE SHEET
2	MAY W10300069
3	ROLLER, FRONT
4	COVER, TOE GRILLE (GREY)
4	ENDCAP, GRILLE (BLACK)
4	ENDCAP, GRILLE (WHITE)
5	CLAMP, TUBE
6	MAY 489442
7	MAY 2179826
8	MAY W10142287
9	MAY 549193
10	MAY 489497
11	MAY 2254618
12	MAY 2183852
13	MAY 2262176
14	MAY 2254473
16	MAY W10520304
16	PLUG, HOLE (GREY)
16	HOLE PLUG (BLACK)
17	CORNER FILLER (BLACK)
17	CORNER FILLER (WHITE)
17	FILLER, CORNER (GREY)
18	MAY W10326387
18	MAY W10353942
18	MAY W10353944
19	WASHER, PLASTIC
20	Washer (1/16)
21	MAY 489427
22	COVER, HINGE (RIGHT HAND (GREY))
22	COVER, HINGE (BLACK, LS)
22	COVER, HINGE (BLACK, RS)
22	COVER, HINGE (WHITE, LS)
22	COVER, HINGE (WHITE, RS)
22	COVER, HINGE (LEFT HAND (GREY))
24	MAY W10384414
25	LINER (NOT A SERVICEABLE PART)
