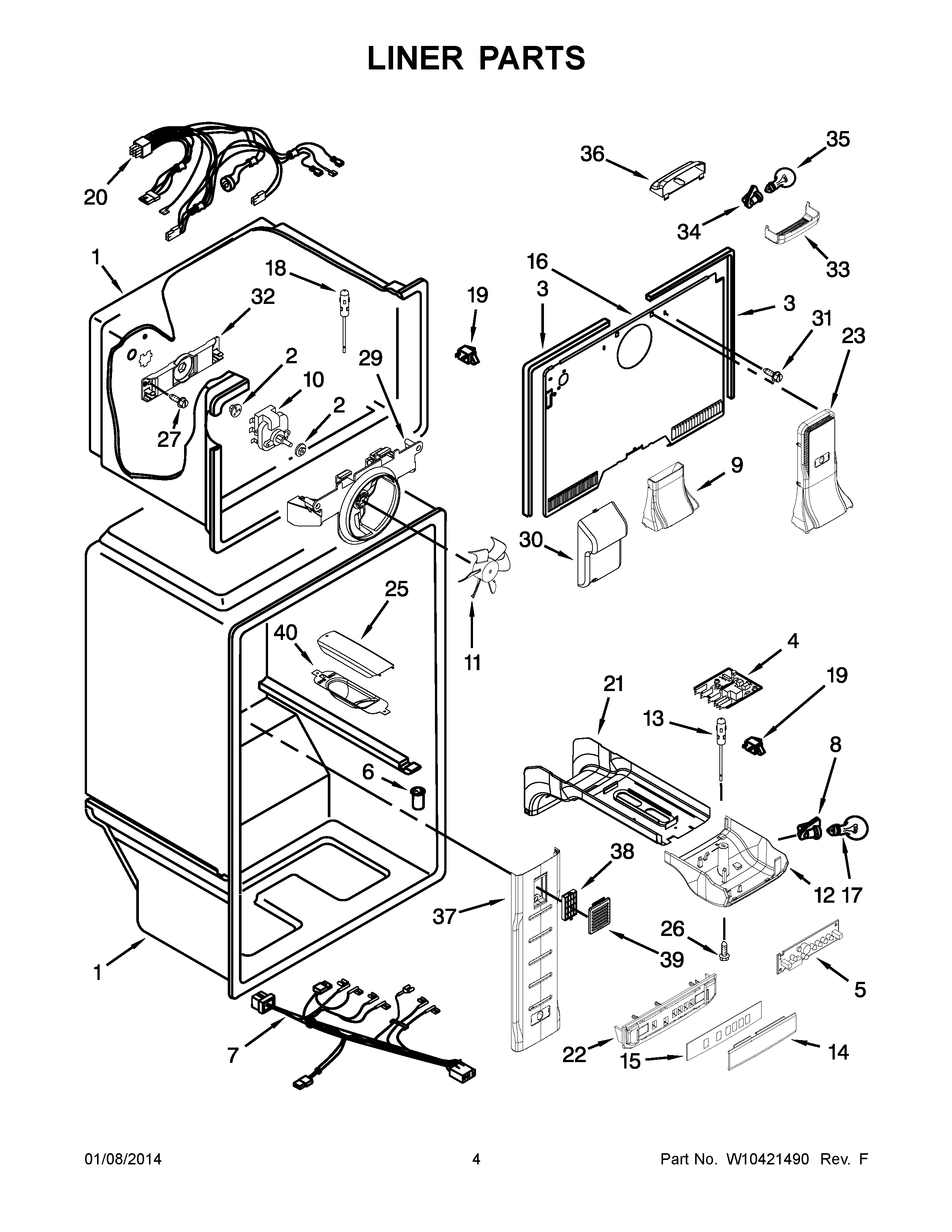

M1BXXLZYM00 03 – LINER PARTS

M1BXXLZYM00 03 – LINER PARTS

Written by

in

M1BXXLZYM00 03 – LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY 2197380
3	MAY 2254360
4	MAY W10392195
5	MAY W10341559
6	MAY 2210509
7	MAY W10557785
8	Socket, Light
9	ASSEMBLY, TOWER CONNECTION
10	MAY 2315539
11	MAY 2200509
12	MAY W10316942
13	THERMISTOR
14	LENS, FASCIA
15	MAY W10356943
16	MAY W10385132
17	LIGHT BULB
18	THERMISTOR, EVAPORATOR
19	MAY 1118894
20	MAY W10341565
21	MAY W10305175
22	MAY W10383443
23	TOWER, AIR
25	LIGHT COVER, RC
26	MAY 489442
27	Screw
29	MAY W10321162
30	MAY W10339203
31	MAY 489478
32	Bracket, Fan Back
33	LENS, LIGHT
34	SOCKET, LIGHT
35	MAY W10473925
36	HOUSING, FREEZER LIGHTING
37	TOWER, MULTIFLOW AIR
38	FILTER, AIR
39	GRILLE, AIR FILTER BOTTOM
40	MAY W10314195
