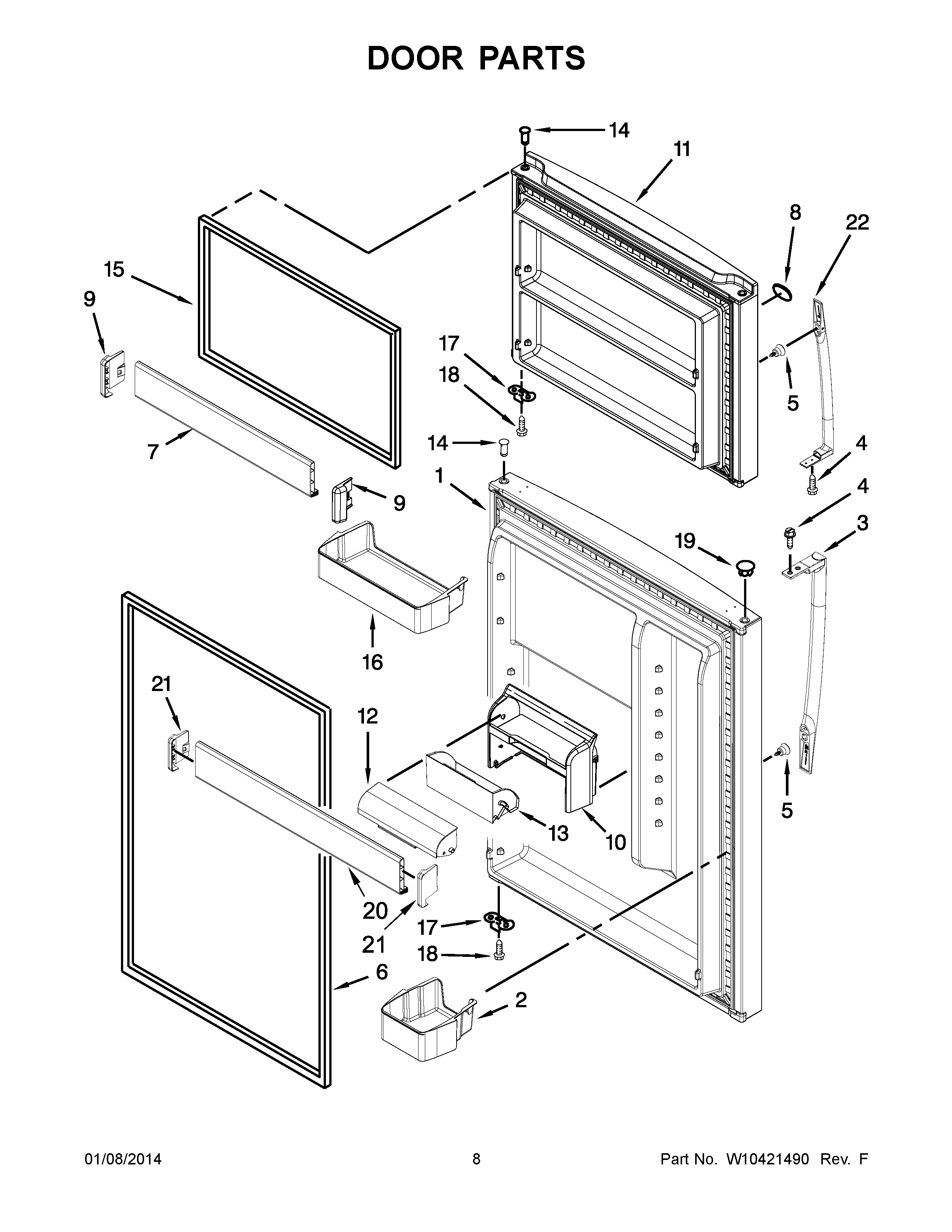

M1BXXLZYM00 05 – DOOR PARTS

Products

Position	Product
1	DOOR, REFRIGERATOR (INCLUDES ITEMS 6 AND 14) (STAINLESS STEEL)
1	DOOR, REFRIGERATOR (INCLUDES ITEMS 6 AND 14) (WHITE)
1	DOOR, REFRIGERATOR (INCLUDES ITEMS 6 AND 14) (BLACK)
2	BIN, MEDIUM
4	MAY 489357
5	MAY W10129563
6	MAY 2202882
6	MAY 2202875
6	GASKET, DOOR (GREY)
7	MAY W10469912
8	Nameplate
10	HOUSING COMPARTMENT
11	DOOR, FREEZER (INCLUDES ITEMS 14 AND 15) (WHITE)
11	DOOR, FREEZER (INCLUDES ITEMS 14 AND 15) (BLACK)
11	DOOR, FREEZER (INCLUDES ITEMS 14 AND 15) (STAINLESS STEEL)
12	COMPARTMENT DOOR
13	MAY W10356444
14	MAY W10334042
15	GASKET, DOOR (GREY)
15	MAY 2214967
15	MAY 2214969
16	MAY W10331763
17	MAY 2189202
18	MAY 489276
19	PLUG, HOLE (GREY)
19	MAY 2212648
19	Hole Plug (Black)
20	MAY W10469911
21	ENDCAP, TRIM LS
21	ENDCAP, TRIM RS
22	HANDLE, FREEZER (WHITE)
22	HANDLE, FREEZER (BLACK)
22	HANDLE, FREEZER (TITANIUM SPARKLE)
