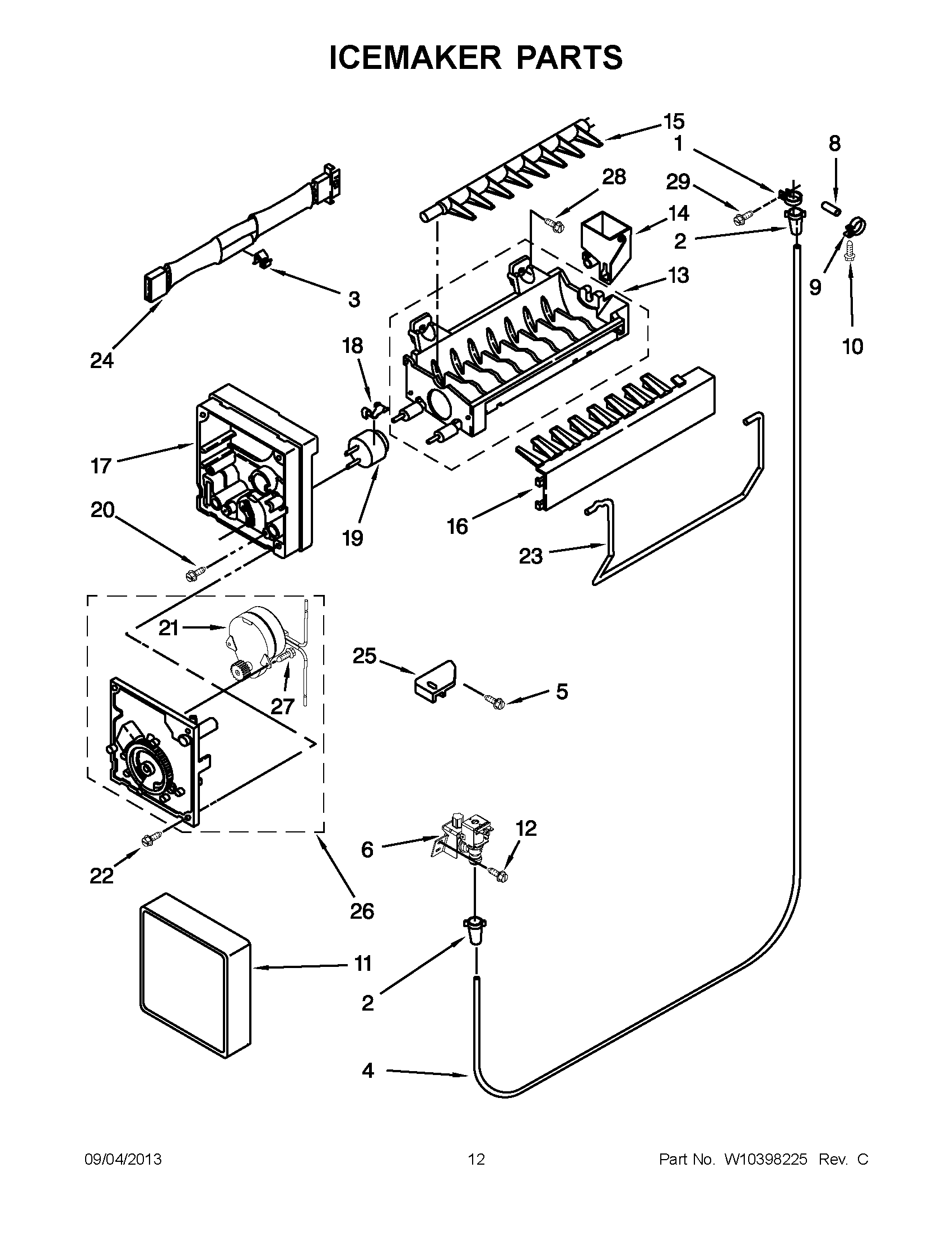

M1TXEGMYB00 07 – ICEMAKER PARTS

Products

Position	Product
1	MAY 488878
2	MAY 2181939
3	Clip
4	TUBE WATER
5	MAY 489478
6	MAY W10279909
8	MAY 2174755
9	CLAMP, TUBE
10	MAY 2262176
11	COVER
12	SCREW, 8 X 1/2
13	MAY W10122527
14	MAY W10122561
15	MAY 627843
16	ICE STRIPPER
17	MAY 2194712
18	MAY 2315522
19	MAY W10290336
20	MAY 8533917
21	MOTOR
22	MAY 489276
23	MAY 627792
24	MAY W10309399
25	MAY 628320
26	MODULE ASSEMBLY (INCLUDES ITEM 24)
27	MAY 489136
28	Screw
29	MAY 488886
100	MAY W10190952
