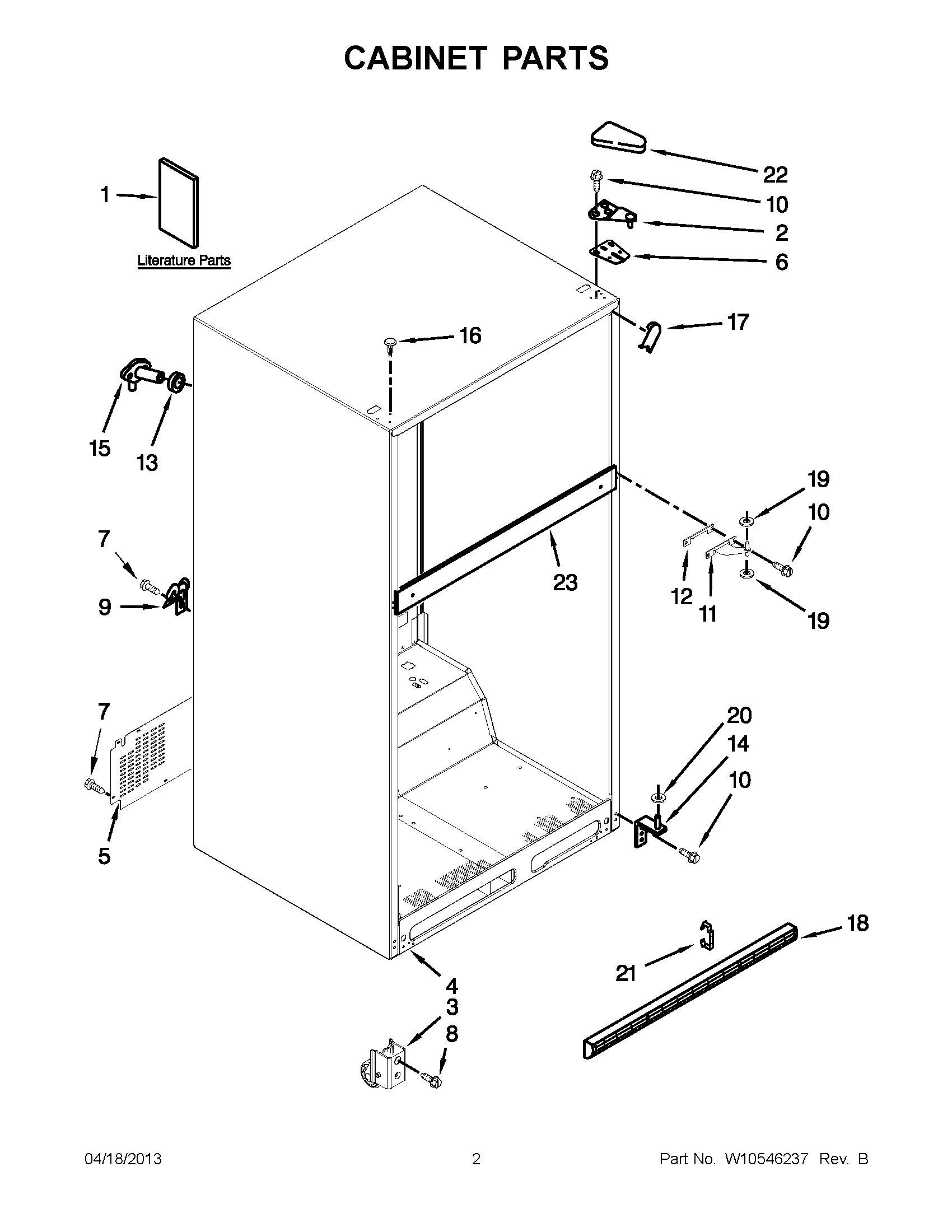

M1TXEGMYB01 01 – CABINET PARTS

Products

Position	Product
1	MAY W10493795
1	MAY W10417753
1	MAY W10360533
1	ICEMAKER SERVICE SHEET
1	DO-IT-YOURSELF MANUAL REF./ FRZ.
2	MAY 2261963
3	MAY 2166108
5	MAY W10384414
6	SHIM, TOP HINGE
7	MAY 2262176
8	MAY W10142287
9	MAY 549193
10	MAY 489497
11	MAY 2254618
12	MAY 2183852
13	Seal
14	MAY 2254473
15	MAY W10472793
16	MAY W10520304
16	HOLE PLUG (BLACK)
16	MAY W10520306
17	CORNER FILLER (BLACK)
17	CORNER FILLER (WHITE)
17	CORNER FILLER (BISCUIT/BISQUE)
18	Grille (Includes Illus. 20) (White)
18	Grille (Includes Illus. 20) (Black)
18	GRILLE ASSEMBLY (INCLUDES ITEM 21) (BISCUIT/BISQUE)
19	WASHER, PLASTIC
20	Washer (1/16)
21	MAY 2189356
22	MAY 2213363
22	Cover, Hinge (White)
22	COVER, HINGE (BISCUIT/BISQUE)
23	LINER (NOT A SERVICEABLE PART)
