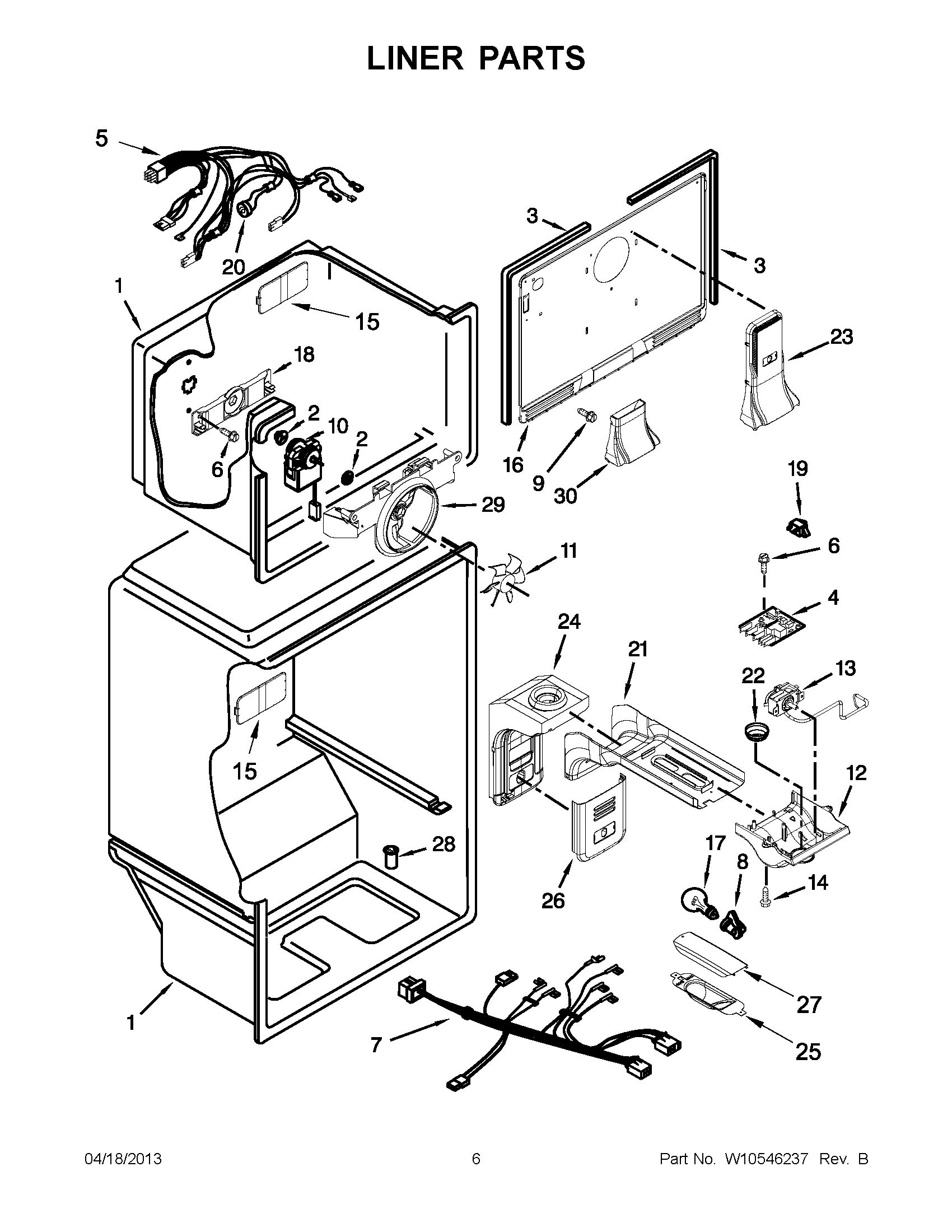

M1TXEGMYQ01 03 – LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY 2197380
3	MAY 2254360
4	ELEC. CONTROL, DEFROST
5	MAY W10339627
6	Screw
7	WIRE ASSY. CONTROL BOX
8	Socket, Light
9	SCREW (WHITE)
10	MAY W10438708
11	MAY 2200509
12	CONTROL BOX
13	THERMOSTAT ASSEMBLY
14	MAY 489174
15	CUP, SCREW
16	MAY W10385129
17	LIGHT BULB
18	Bracket, Fan Back
19	MAY 1118894
20	DEFROST, BI-METAL
21	MAY W10305175
22	KNOB
23	TOWER, AIR
24	AIR DIFFUSER ASSEMBLY
25	MAY W10300161
26	MAY W10310927
27	LIGHT COVER, RC
28	MAY 2210509
29	MAY W10321162
30	ASSEMBLY, TOWER CONNECTION
