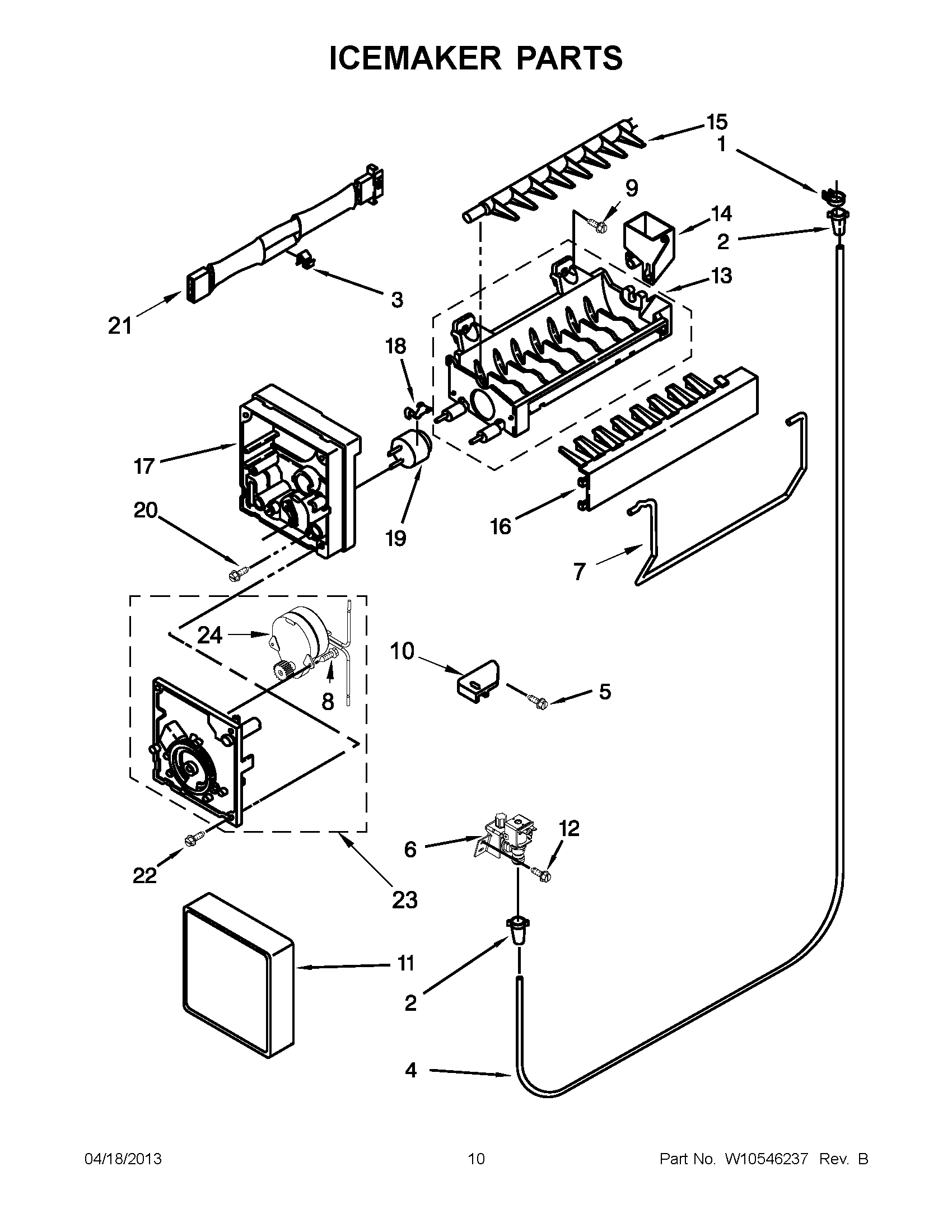

M1TXEGMYS01 05 – ICEMAKER PARTS

Products

Position	Product
1	CLAMP, TUBE
2	MAY 2181939
3	Clip
4	TUBE WATER
5	MAY 489478
6	MAY W10279909
7	MAY 627792
8	MAY 489136
9	Screw
10	MAY 628320
11	COVER
12	SCREW, 8 X 1/2
13	MAY W10122527
14	MAY W10435665
15	MAY 627843
16	ICE STRIPPER
17	MAY 2194712
18	MAY 2315522
19	MAY W10290336
20	Screw (2)
21	MAY W10309399
22	MAY 489276
23	MODULE ASSEMBLY (INCLUDES ITEM 24)
24	MOTOR
100	MAY W10190952
