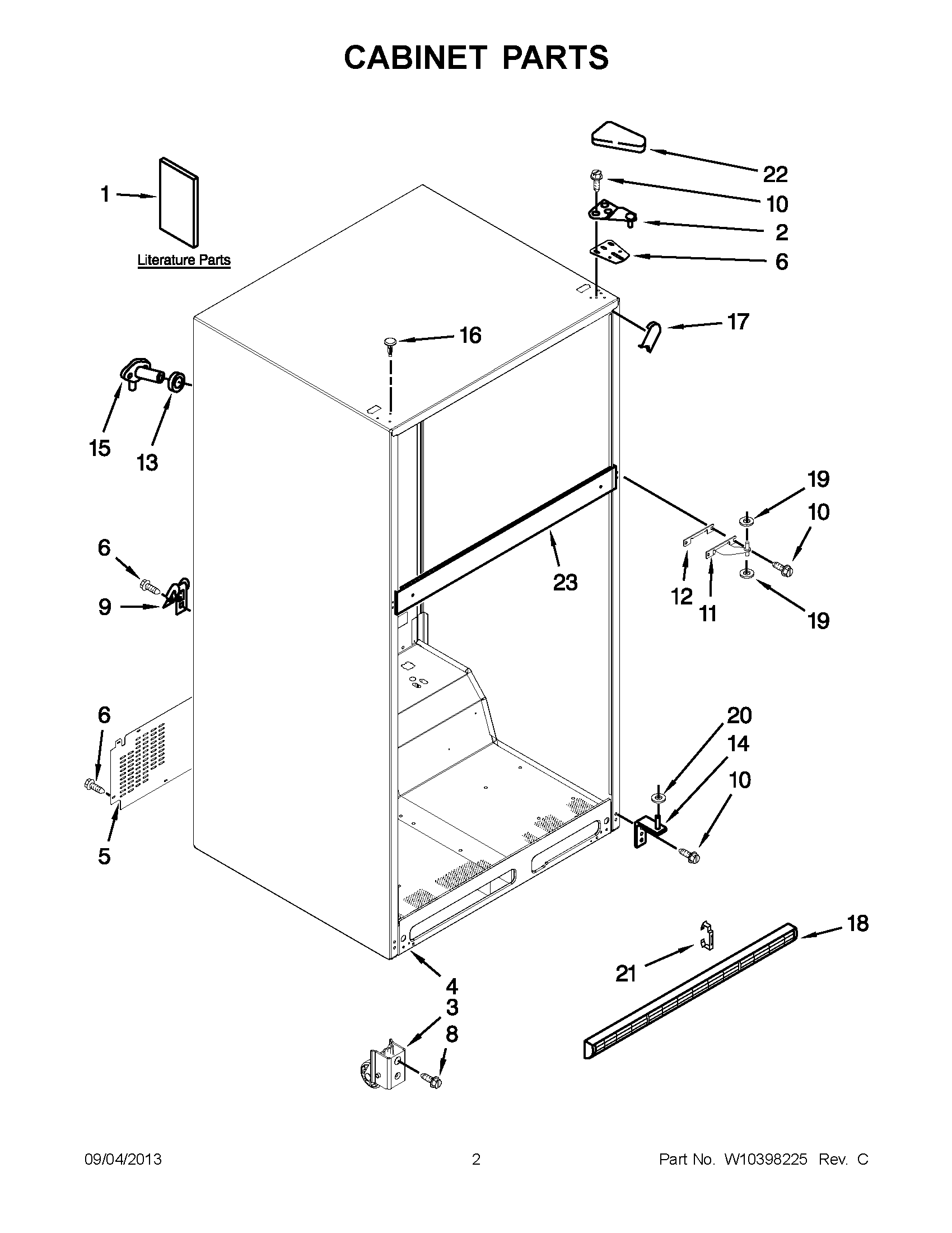

M1TXEGMYW00 02 – CABINET PARTS

Products

Position	Product
1	MAY W10417753
1	MAY W10360533
1	ICEMAKER SERVICE SHEET
1	SERVICE & WIRING SHEET
1	DO-IT-YOURSELF MANUAL REF./ FRZ.
2	MAY 2261963
3	MAY 2166108
5	MAY W10384414
6	SHIM, TOP HINGE
7	MAY 2262176
8	MAY W10142287
9	MAY 549193
10	MAY 489497
11	MAY 2254618
12	MAY 2183852
13	Seal
14	MAY 2254473
15	MAY W10472793
16	MAY W10520304
16	MAY W10520306
16	HOLE PLUG (BLACK)
17	CORNER FILLER (BLACK)
17	CORNER FILLER (BISCUIT/BISQUE)
17	CORNER FILLER (WHITE)
18	GRILLE ASSEMBLY (INCLUDES ITEM 21) (BISCUIT/BISQUE)
18	Grille (Includes Illus. 20) (Black)
18	Grille (Includes Illus. 20) (White)
19	WASHER, PLASTIC
20	Washer (1/16)
21	MAY 2189356
22	MAY 2213363
22	Cover, Hinge (White)
22	COVER, HINGE (BISCUIT/BISQUE)
23	LINER (NOT A SERVICEABLE PART)
