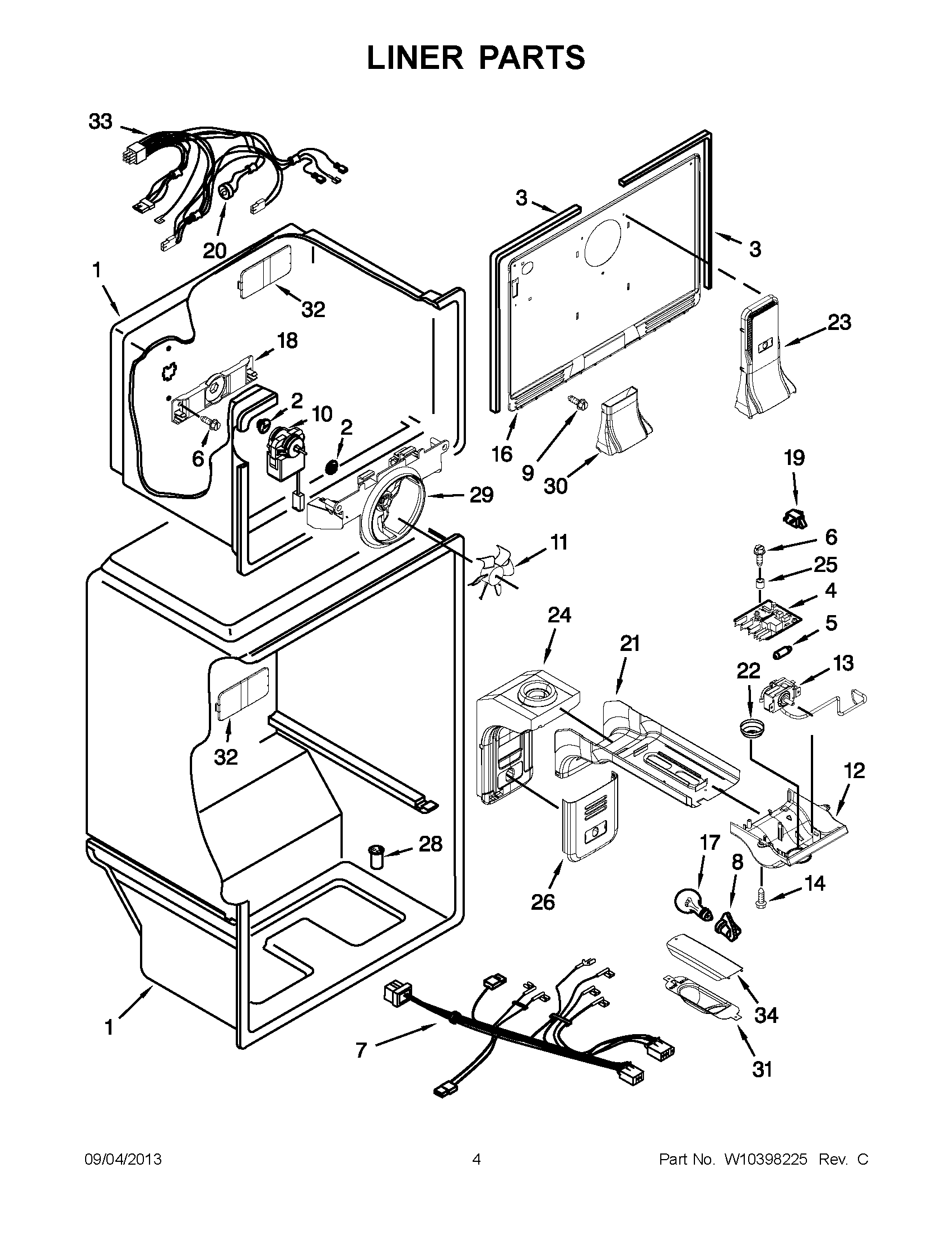

M1TXEGMYW00 03 – LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY 2197380
3	MAY 2254360
4	ELEC. CONTROL, DEFROST
5	MAY 2200831
6	Screw
7	WIRE ASSY. CONTROL BOX
8	Socket, Light
9	SCREW (WHITE)
10	MAY W10208121
11	MAY 2200509
12	CONTROL BOX
13	THERMOSTAT ASSEMBLY
14	MAY 489174
16	MAY W10385129
17	LIGHT BULB
18	Bracket, Fan Back
19	MAY 1118894
20	DEFROST, BI-METAL
21	MAY W10305175
22	KNOB
23	TOWER, AIR
24	AIR DIFFUSER ASSEMBLY
26	MAY W10310927
28	MAY 2210509
29	MAY W10321162
30	ASSEMBLY, TOWER CONNECTION
31	MAY W10300161
32	CUP, SCREW
33	WIRE ASSEMBLY, FREEZER COMPARTMENT (INCLUDES ITEM 15)
34	LIGHT COVER, RC
