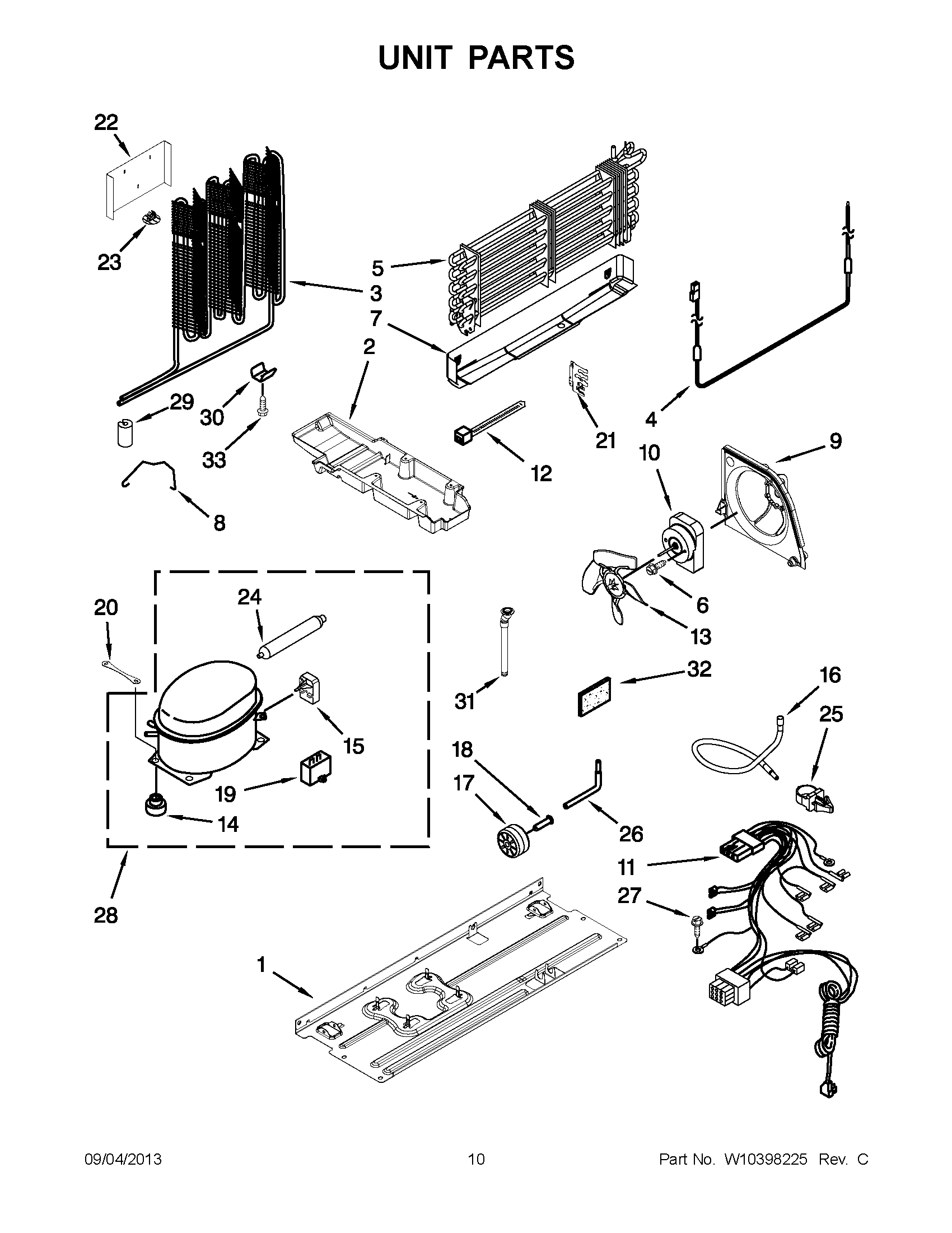

M1TXEGMYW00 06 – UNIT PARTSadmin2025-04-26T09:26:03+00:00M1TXEGMYW00 06 – UNIT PARTS
Products
| Position | Product |
|---|
| NI | MAY 876764 |
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | Valve, Access (3/4``) |
| NI | Valve, Access (5/8``) |
| NI | Valve, Access (1/2``) |
| NI | VALVE, ACCESS (3/8``) |
| NI | Valve, Access (5/16``) |
| NI | VALVE, ACCESS (1/4``) |
| 1 | PLATE, UNIT MOUNTING |
| 3 | CONDENSER |
| 4 | MAY W10316428 |
| 5 | EVAPORATOR ASSY. |
| 6 | MAY 8533961 |
| 7 | MAY W10314195 |
| 8 | BALE STRAP |
| 9 | MAY 2315541 |
| 10 | MOTOR, CONDENSOR |
| 12 | MAY 2263990 |
| 13 | MAY W10139483 |
| 14 | GROMMET |
| 15 | START-DEVICE (PRODUCTION) |
| 17 | Roller |
| 18 | MAY 2221797 |
| 19 | Capacitator (Production) |
| 20 | MAY W10236396 |
| 21 | BRACKET, EVAPORATOR |
| 22 | MAY W10349515 |
| 23 | CLIP, BOTTOM COVER |
| 24 | Drier |
| 25 | Clip, Harness (1) |
| 26 | MAY 2212848 |
| 27 | MAY 488500 |
| 28 | MAY W10187125 |
| 29 | GROMMET, CONDENSER |
| 30 | CLIP, CONDENSER |
| 31 | VALVE, DRAIN |
| 32 | MAY 2215468 |
| 33 | MAY 8281232 |
