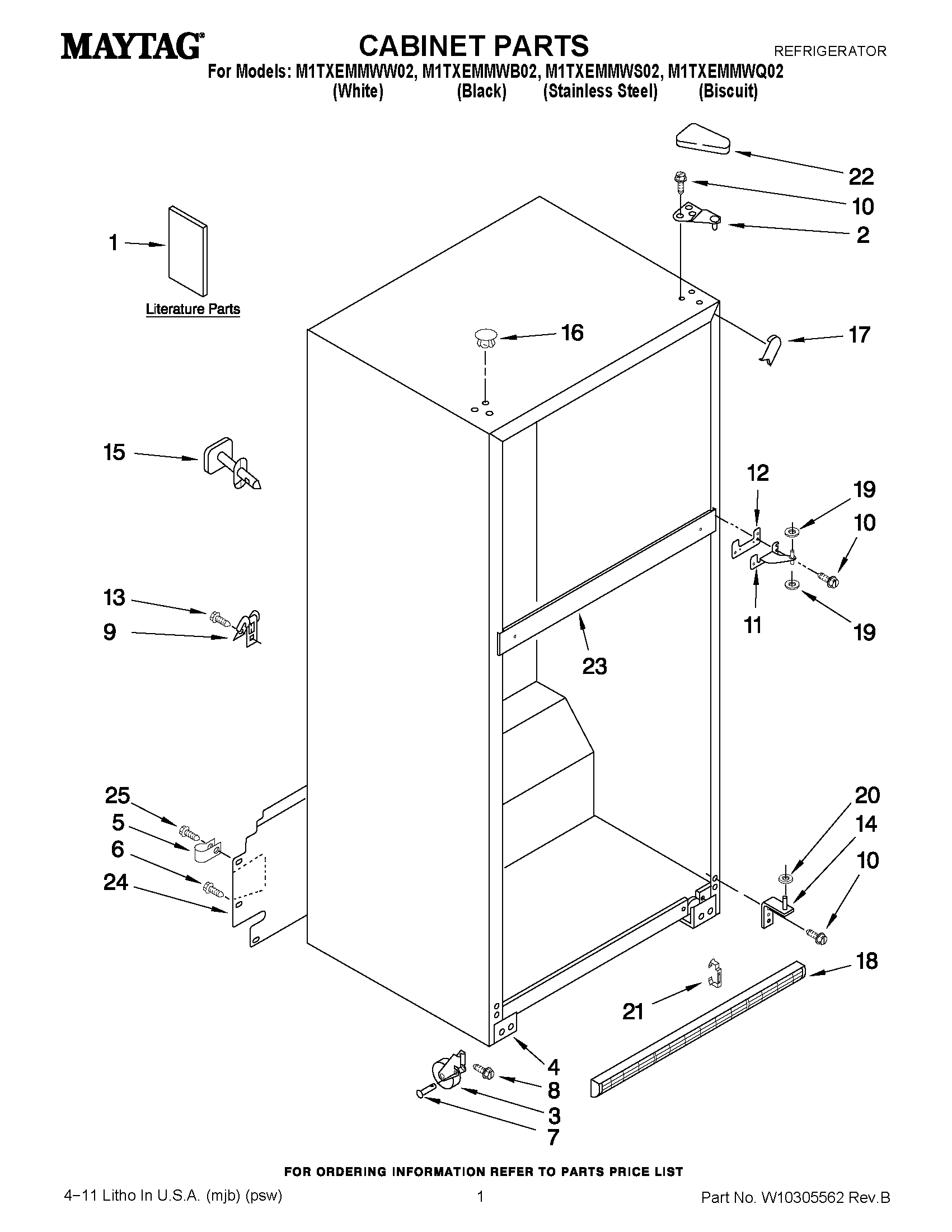

M1TXEMMWQ02 01 – CABINET PARTS

Products

Position	Product
1	MAY W10251542
1	MAY W10142143
1	MAY W10249206
1	DO-IT-YOURSELF MANUAL REF./ FRZ.
1	ICEMAKER SERVICE SHEET
1	MAY W10249207
2	MAY 2189410
3	MAY 2166108
5	CLAMP, TUBE
6	MAY 489442
7	MAY 2179826
8	MAY 3400504
9	MAY 549193
10	MAY 489497
11	MAY 2254618
12	MAY 2183852
13	MAY 8281265
14	MAY 2254473
16	HOLE PLUG
16	HOLE PLUG (BISCUIT)
16	MAY 2183998
17	CORNER FILLER (BLACK)
17	Corner Filler (2) (Biscuit)
17	CORNER FILLER (WHITE)
18	GRILLE ASSEMBLY (INCLUDES ITEM 21) (BISCUIT/BISQUE)
18	Grille (Includes Illus. 20) (Black)
18	Grille (Includes Illus. 20) (White)
19	WASHER, PLASTIC
20	Washer (1/16)
21	MAY 2189356
22	COVER, HINGE (BISCUIT/BISQUE)
22	MAY 2213363
22	Cover, Hinge (White)
23	LINER (NOT A SERVICEABLE PART)
24	MAY 2254576
25	MAY 489427
