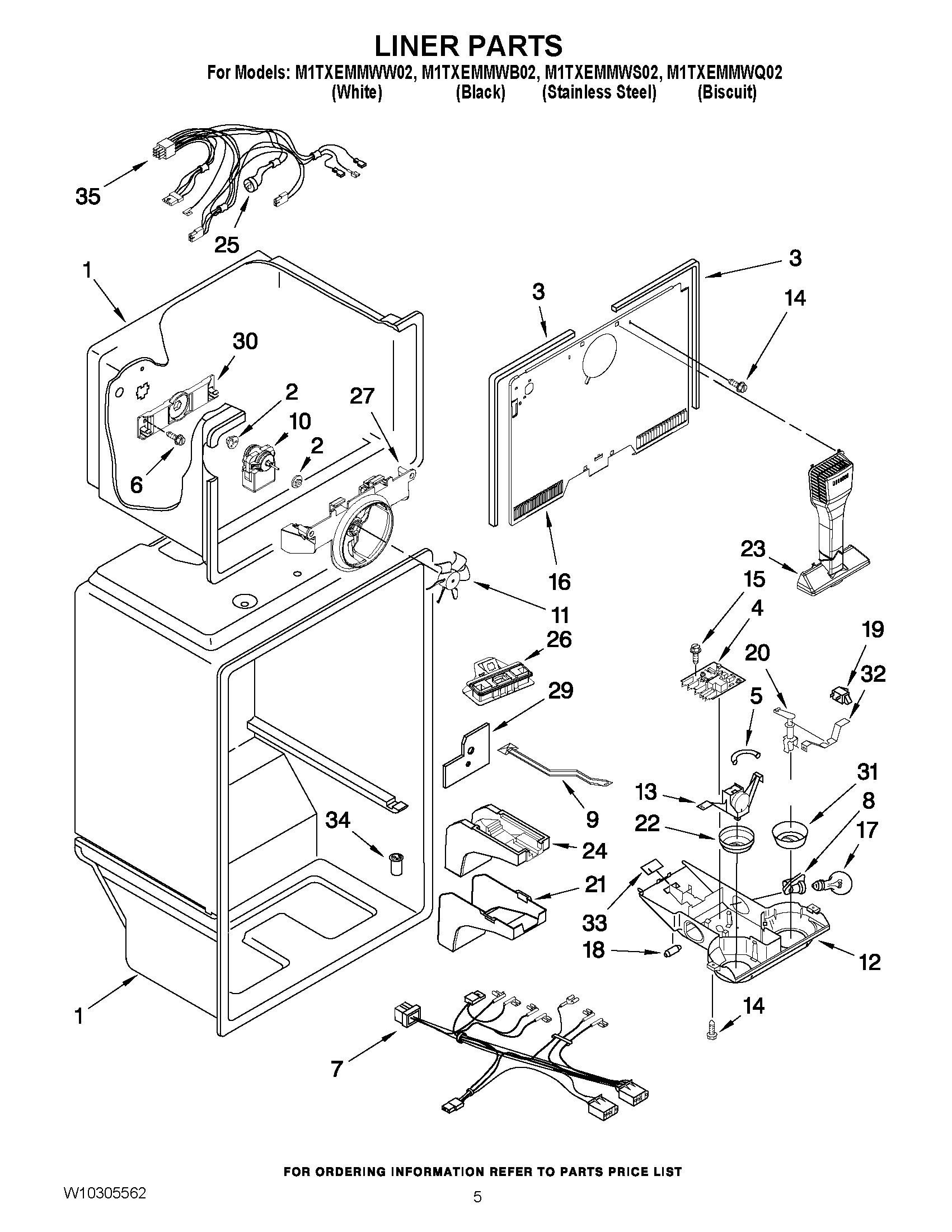

M1TXEMMWQ02 03 – LINER PARTS

M1TXEMMWQ02 03 – LINER PARTS

Written by

in

M1TXEMMWQ02 03 – LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2MAY 2197380
3MAY 2254360
5MAY 2212485
6Screw
7MAY 2310057
8Socket, Light
9MAY 2179858
10MAY W10208121
11Fan Blade
12MAY 2212982
13MAY W10225856
14MAY 8534009
15Screw
16Cover-Evaporator
17MAY 527949
18MAY 2200831
19MAY 1118894
20MAY 2179859
21MAY 2176281
22MAY 2200863
23MAY 2254354
24MAY 2189452
25MAY 2321800
26DIFFUSER
27Bracket,
29MAY 2204639
30Bracket, Fan Back
31MAY 2302536
32MAY 2163810
33MAY 2205079
34Valve
35Wire Assembly, Freezer Compartment (Includes Item 35)
