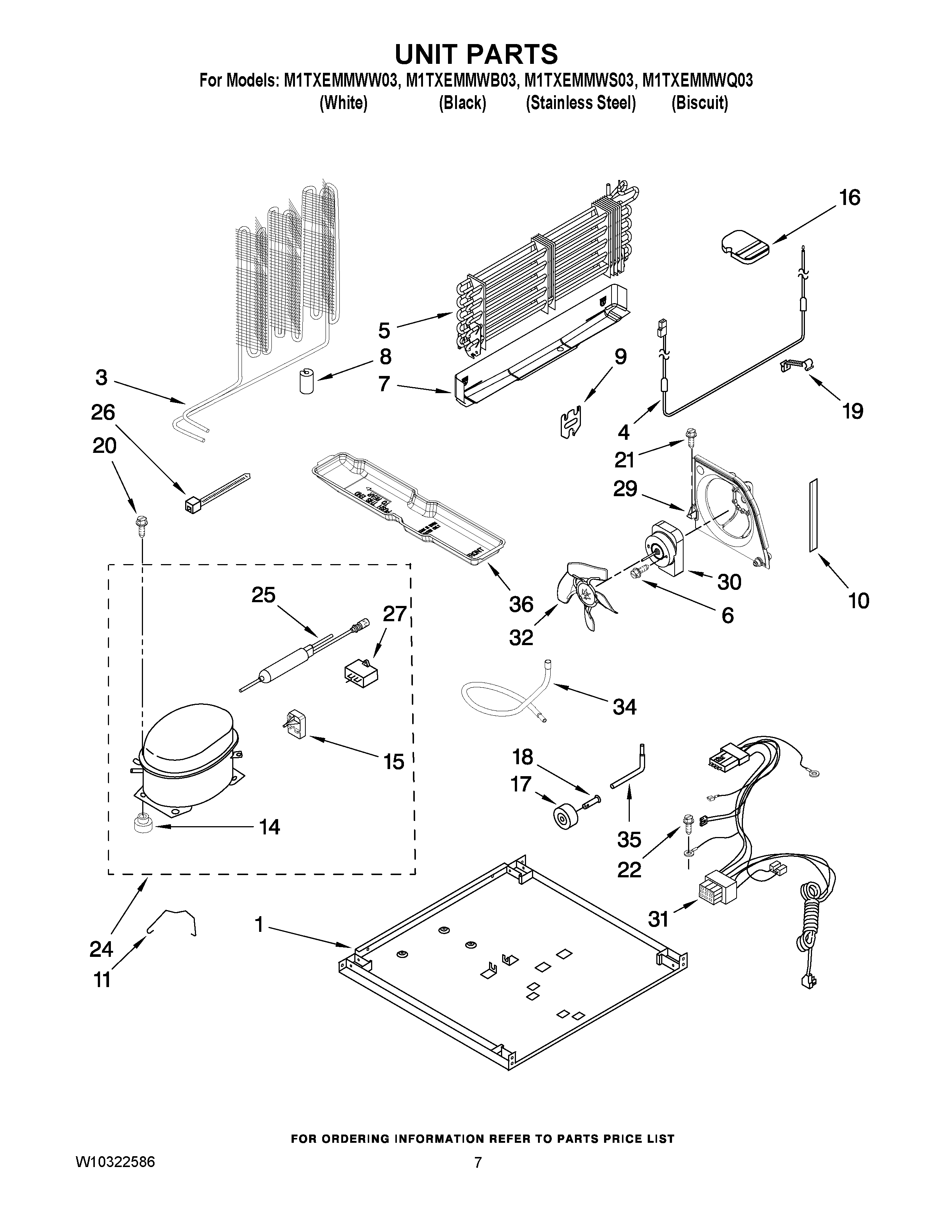

M1TXEMMWQ03 04 – UNIT PARTSadmin2025-04-26T09:27:54+00:00M1TXEMMWQ03 04 – UNIT PARTS
Products
| Position | Product |
|---|
| NI | Valve, Access (5/8``) |
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | Valve, Access (3/4``) |
| NI | Valve, Access (1/2``) |
| NI | VALVE, ACCESS (3/8``) |
| NI | Valve, Access (5/16``) |
| NI | VALVE, ACCESS (1/4``) |
| NI | MAY 876764 |
| 1 | MAY 2320187 |
| 3 | MAY W10268878 |
| 4 | MAY W10140847 |
| 5 | MAY 2254249 |
| 6 | MAY 8533961 |
| 7 | MAY 2254295 |
| 8 | GROMMET, CONDENSER |
| 9 | MAY 2176301 |
| 10 | MAY 2300638 |
| 11 | BALE STRAP |
| 14 | MAY 4387558 |
| 14 | Grommet (Production) |
| 15 | START-DEVICE, COMBINATION (START RELAY AND OVERLOAD) (SERVICE) |
| 16 | MAY 2201185 |
| 17 | Roller |
| 18 | MAY 2221797 |
| 19 | MAY 2182338 |
| 20 | MAY 489373 |
| 21 | MAY 3400518 |
| 22 | MAY 488500 |
| 24 | COMPRESSOR (INCLUDES ITEMS 12,13,14 & 27) (ALSO ORDER 482801 INSTALLATION KIT & 876765 TUBE KIT) |
| 25 | Drier |
| 26 | MAY 2155774 |
| 27 | Capacitor (Service) |
| 27 | Capacitator (Production) |
| 29 | MAY 2315541 |
| 30 | MOTOR, CONDENSOR |
| 31 | Wire Assembly Unit |
| 32 | MAY 2225834 |
| 34 | MAY 2225237 |
| 35 | MAY 2154109 |
| 36 | Evaporator Tray |
