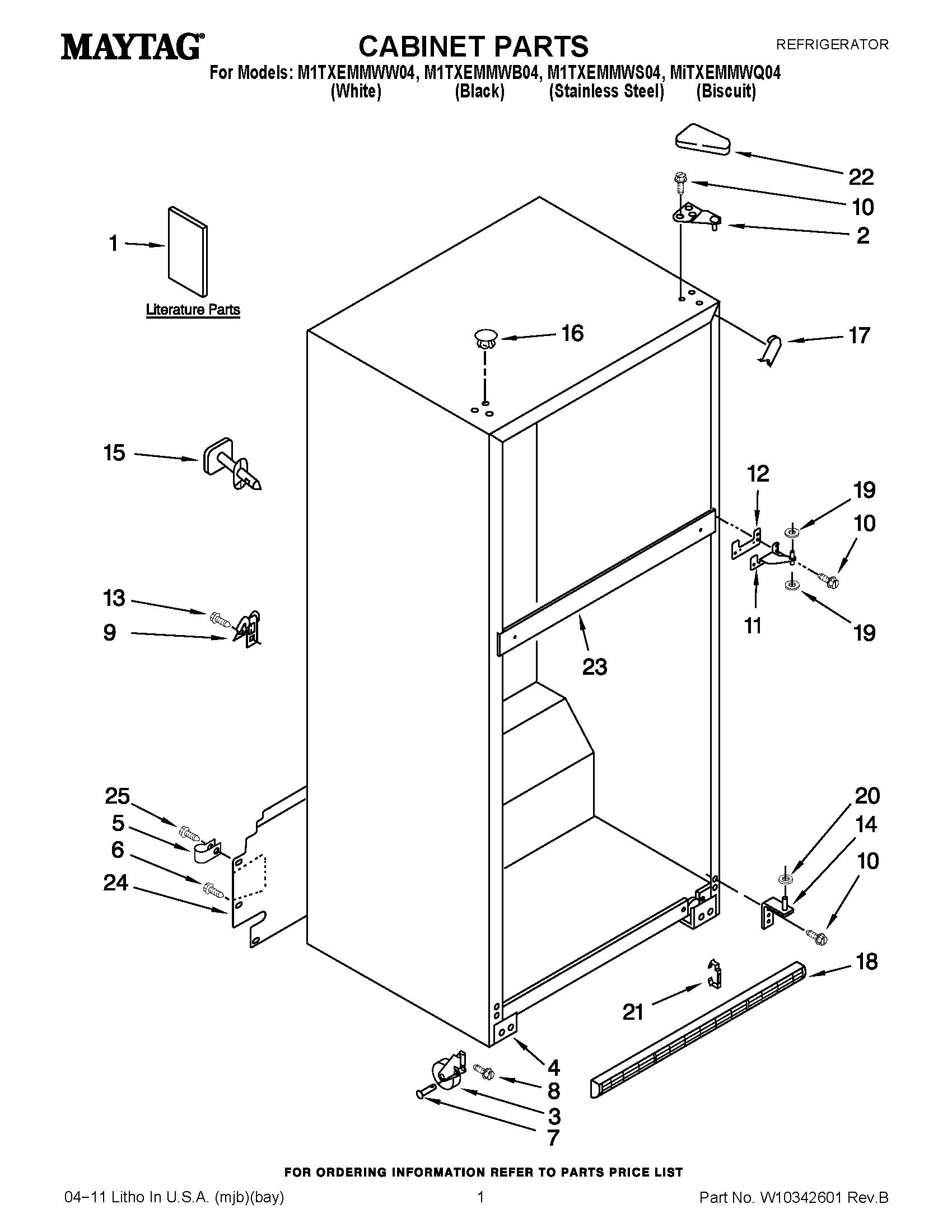

M1TXEMMWQ04 01 – CABINET PARTS

Products

Position	Product
1	MAY W10312254
1	MAY W10312244
1	MAY W10312243
1	MAY W10251542
1	ICEMAKER SERVICE SHEET
1	DO-IT-YOURSELF MANUAL REF./ FRZ.
2	MAY 2261963
3	MAY 2166108
5	CLAMP, TUBE
6	MAY 489442
7	MAY 2179826
8	MAY 3400504
9	MAY 549193
10	MAY 489497
11	MAY 2254618
12	MAY 2183852
13	MAY 8281265
14	MAY 2254473
16	HOLE PLUG
16	HOLE PLUG (BISCUIT)
16	MAY 2183998
17	CORNER FILLER (WHITE)
17	CORNER FILLER (BISCUIT/BISQUE)
17	CORNER FILLER (BLACK)
18	Grille (Includes Illus. 20) (White)
18	Grille (Includes Illus. 20) (Black)
18	GRILLE ASSEMBLY (INCLUDES ITEM 21) (BISCUIT/BISQUE)
19	WASHER, PLASTIC
20	Washer (1/16)
21	MAY 2189356
22	COVER, HINGE (BISCUIT/BISQUE)
22	MAY 2213363
22	Cover, Hinge (White)
23	LINER (NOT A SERVICEABLE PART)
24	MAY 2254576
25	MAY 489427
