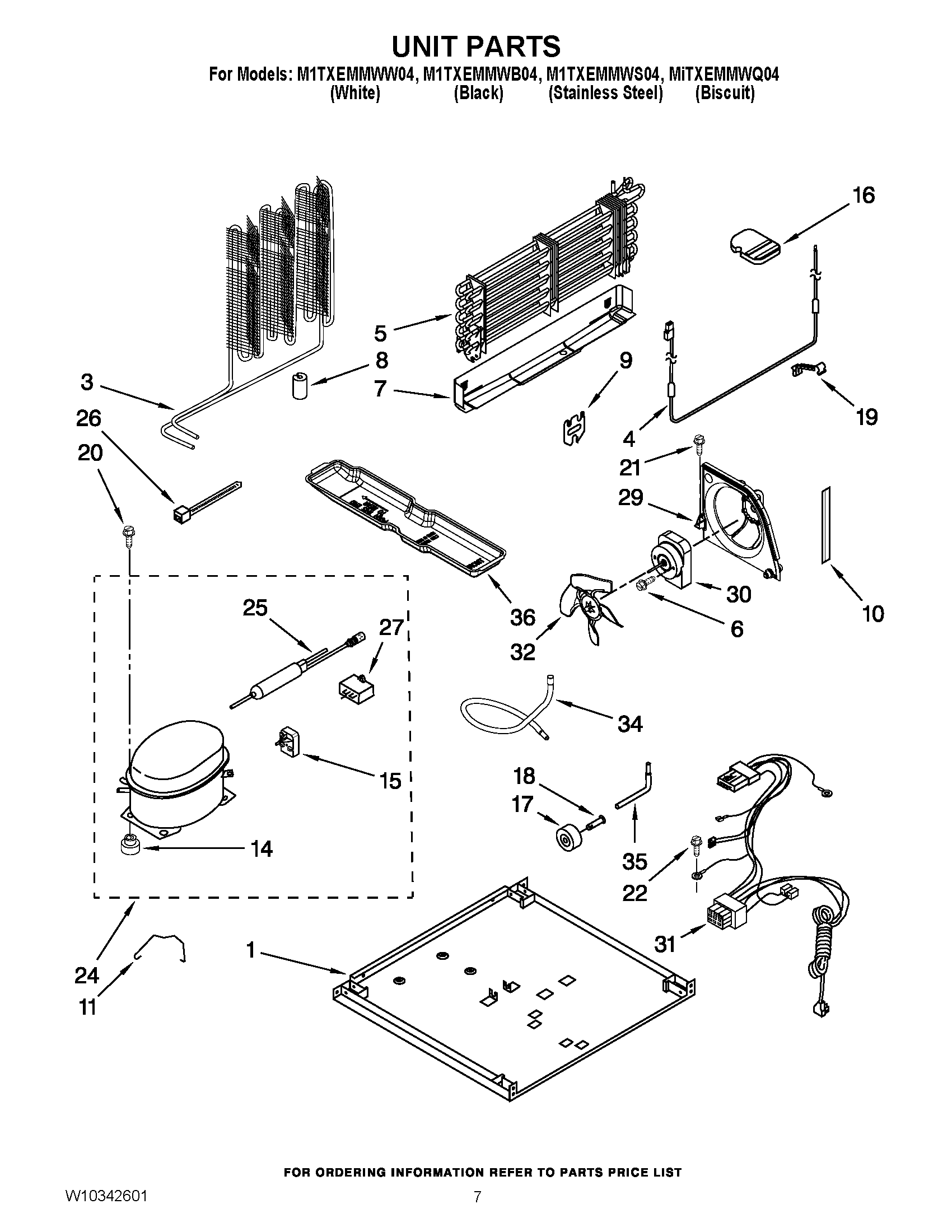

M1TXEMMWQ04 04 – UNIT PARTS

Products

Position	Product
NI	Valve, Access (5/8``)
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (3/4``)
NI	Valve, Access (1/2``)
NI	VALVE, ACCESS (3/8``)
NI	Valve, Access (5/16``)
NI	VALVE, ACCESS (1/4``)
NI	MAY 876764
1	MAY 2320187
3	MAY W10268878
4	MAY W10140847
5	MAY 2254249
6	MAY 8533961
7	MAY 2254295
8	GROMMET, CONDENSER
9	MAY 2176301
10	MAY 2300638
11	BALE STRAP
14	MAY 4387558
14	Grommet (Production)
15	START-DEVICE, COMBINATION (START RELAY AND OVERLOAD) (SERVICE)
16	MAY 2201185
17	Roller
18	MAY 2221797
19	MAY 2182338
20	MAY 489373
21	MAY 3400518
22	MAY 488500
24	COMPRESSOR (INCLUDES ITEMS 12,13,14 & 27) (ALSO ORDER 482801 INSTALLATION KIT & 876765 TUBE KIT)
25	Drier
26	MAY 2155774
27	Capacitor (Service)
27	Capacitator (Production)
29	MAY 2315541
30	MOTOR, CONDENSOR
31	Wire Assembly Unit
32	MAY 2225834
34	MAY 2225237
35	MAY 2154109
36	Evaporator Tray
