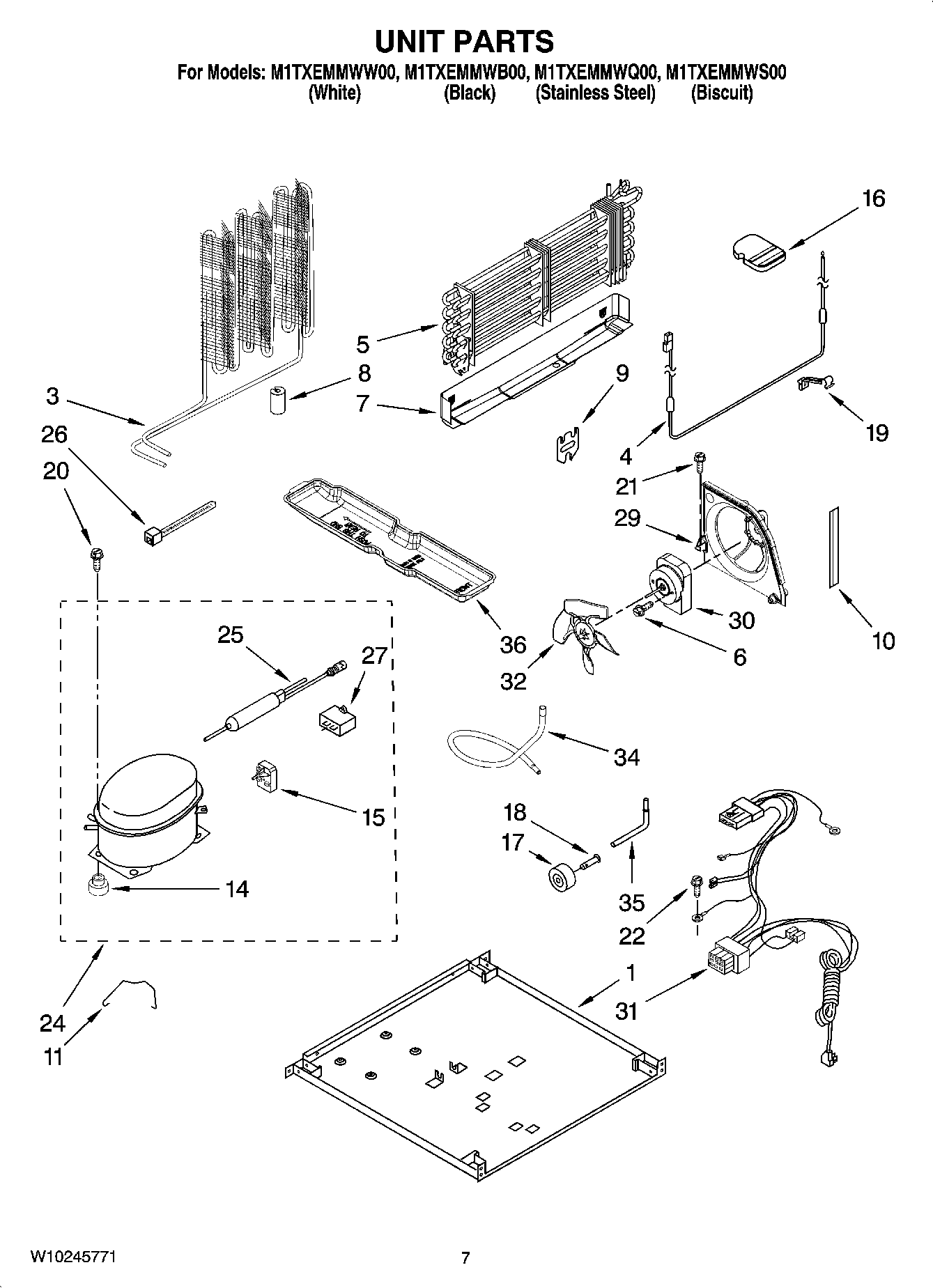

M1TXEMMWS00 04 – UNIT PARTS

M1TXEMMWS00 04 – UNIT PARTS

Written by

in

M1TXEMMWS00 04 – UNIT PARTS

Products

PositionProduct
NIValve, Access (5/8“)
NIMAY 876764
NIVALVE, ACCESS (1/4“)
NIValve, Access (5/16“)
NIVALVE, ACCESS (3/8“)
NIValve, Access (1/2“)
NIValve, Access (3/4“)
1MAY 2320187
3MAY W10159808
4MAY 2314157
5MAY 2254249
6MAY 8533961
7MAY 2254295
8GROMMET, CONDENSER
9MAY 2176301
10MAY 2300638
11MAY W10174384
14MAY 4387558
14Grommet (Production)
15START PROTECT, COMBO (START DEVICE, COMBINATION (START RELAY AND OVERLOAD) FOR SERVICE COMPRESSOR ONLY)
16MAY 2201185
17Roller
18MAY 2221797
19MAY 2182338
20MAY 489373
21MAY 3400518
22MAY 488500
24MAY W10164016
25Drier
26MAY 2155774
27Capacitator (Production)
27Capacitor (Service)
29MAY 2315541
30MOTOR, CONDENSOR
31Wire Assembly Unit
32MAY 2225834
34MAY W10189806
35Process Tube
36Evaporator Tray
