M1TXEMMWS01 03 – LINER PARTS – Aparts

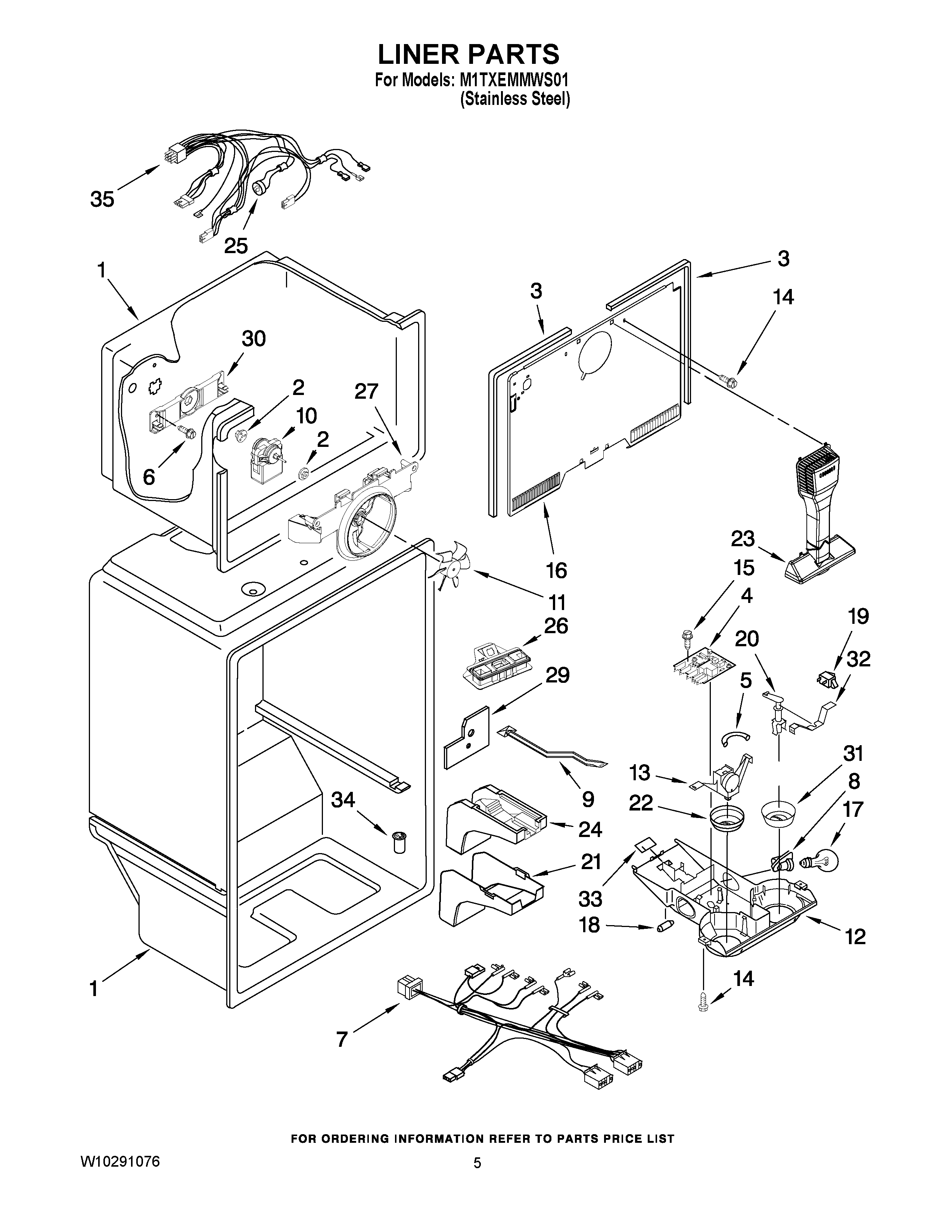

M1TXEMMWS01 03 – LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY 2197380
3	MAY 2254360
5	MAY 2212485
6	Screw
7	MAY 2310057
8	Socket, Light
9	MAY 2179858
10	MAY 2315539
11	Fan Blade
12	MAY 2212982
13	Thermostat Assembly
14	MAY 8534009
15	Screw
16	Cover-Evaporator
17	MAY 527949
18	MAY 2200831
19	MAY 1118894
20	MAY 2179859
21	MAY 2176281
22	MAY 2200863
23	MAY 2254354
24	MAY 2189452
25	MAY 2321800
26	DIFFUSER
27	Bracket,
29	MAY 2204639
30	Bracket, Fan Back
31	MAY 2302536
32	MAY 2163810
33	MAY 2205079
34	Valve
35	MAY W10129795
