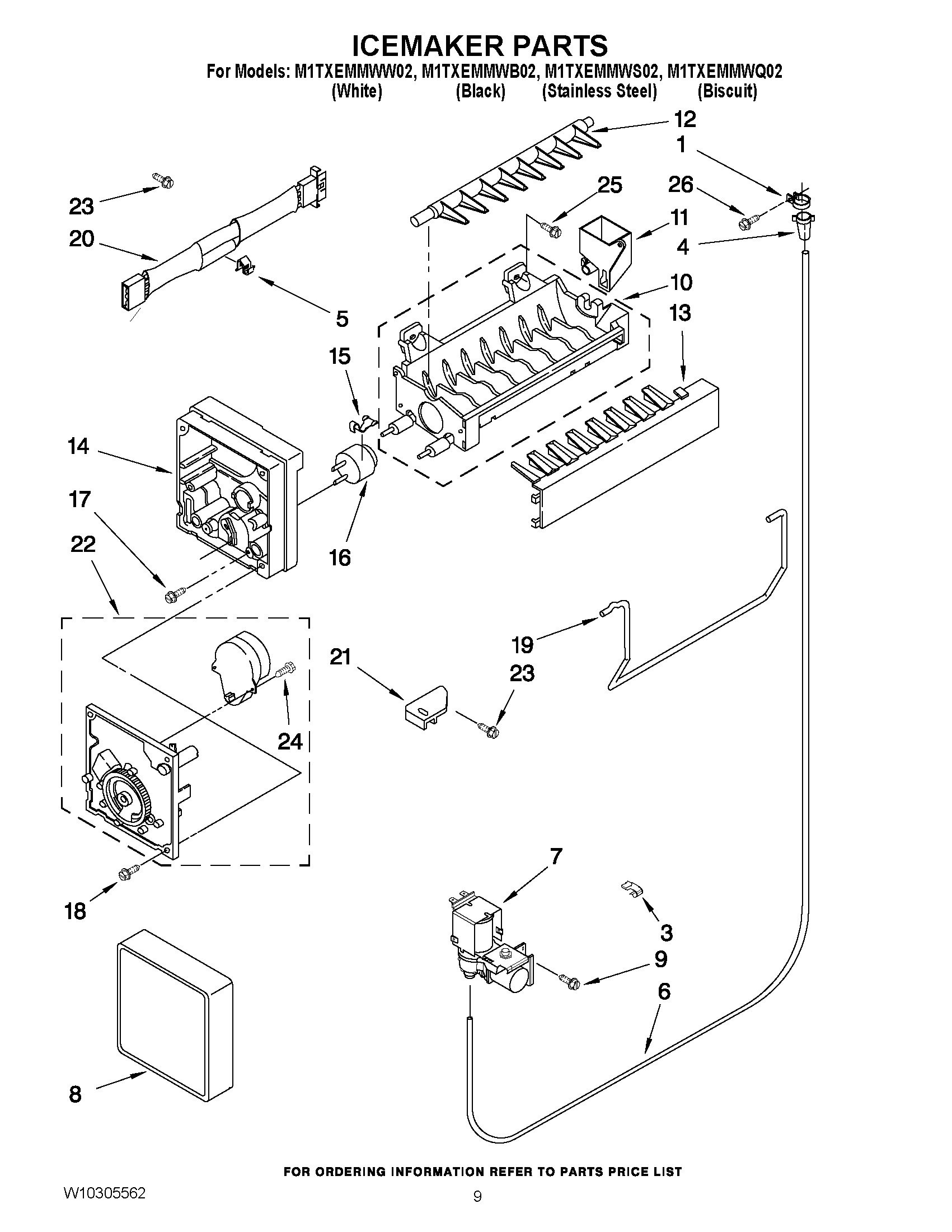

M1TXEMMWS02 05 – ICEMAKER PARTS

Products

Position	Product
1	MAY 488878
3	MAY 2210495
4	MAY 2181939
5	Clip
6	MAY 2181943
7	Valve Solenoid
8	MAY 79191001
9	MAY 8281265
10	MAY W10122527
11	Cup, Fill
12	MAY 627843
13	ICE STRIPPER
14	MAY 2194712
15	MAY 2315522
16	Thermostat (Also Order 542369 Cement Alumilastic)
17	MAY 8533917
18	MAY 489276
19	MAY 627792
20	MAY 2187464
21	MAY 628320
22	MODULE ASSEMBLY (INCLUDES ITEM 24)
23	MAY 489478
24	MAY 489136
25	Screw
26	MAY 488886
100	MAY W10190952
