M1TXEMMWS03 06 – SHELF PARTS

M1TXEMMWS03 06 – SHELF PARTS

Written by

in

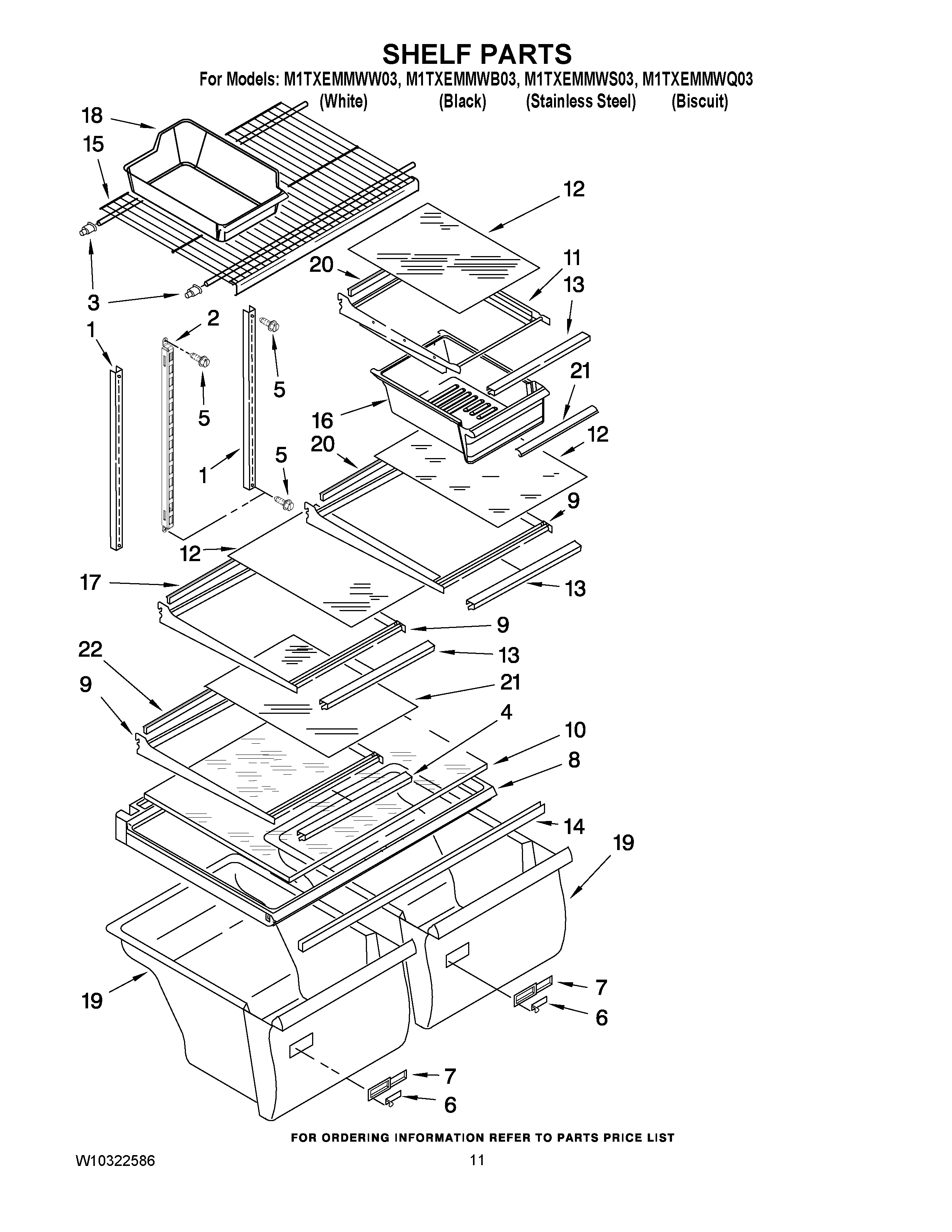

M1TXEMMWS03 06 – SHELF PARTS

Products

Position	Product
1	MAY 2210522
2	MAY 2300520
3	MAY 2163762
4	TRIM,SHELF FRONT
5	MAY 489478
6	Slide, Humidity Control
7	MAY 2212446
8	MAY 2314502
9	Shelf, Cantilever
10	Insert, Crisper Cover
11	Pan Shelf, Cantilever
12	MAY 2174694
13	Trim-Shelf-Front
14	Crisper Support Cantilever
15	MAY 2189454
16	MAY 2218132K
17	MAY 2188689
18	Bucket, Ice
19	Pan, Crisper (13-Inch) (Includes 17,20)
20	Trim-Shelf-Rear
21	Glass, Shelf Full
22	Frame Assy
