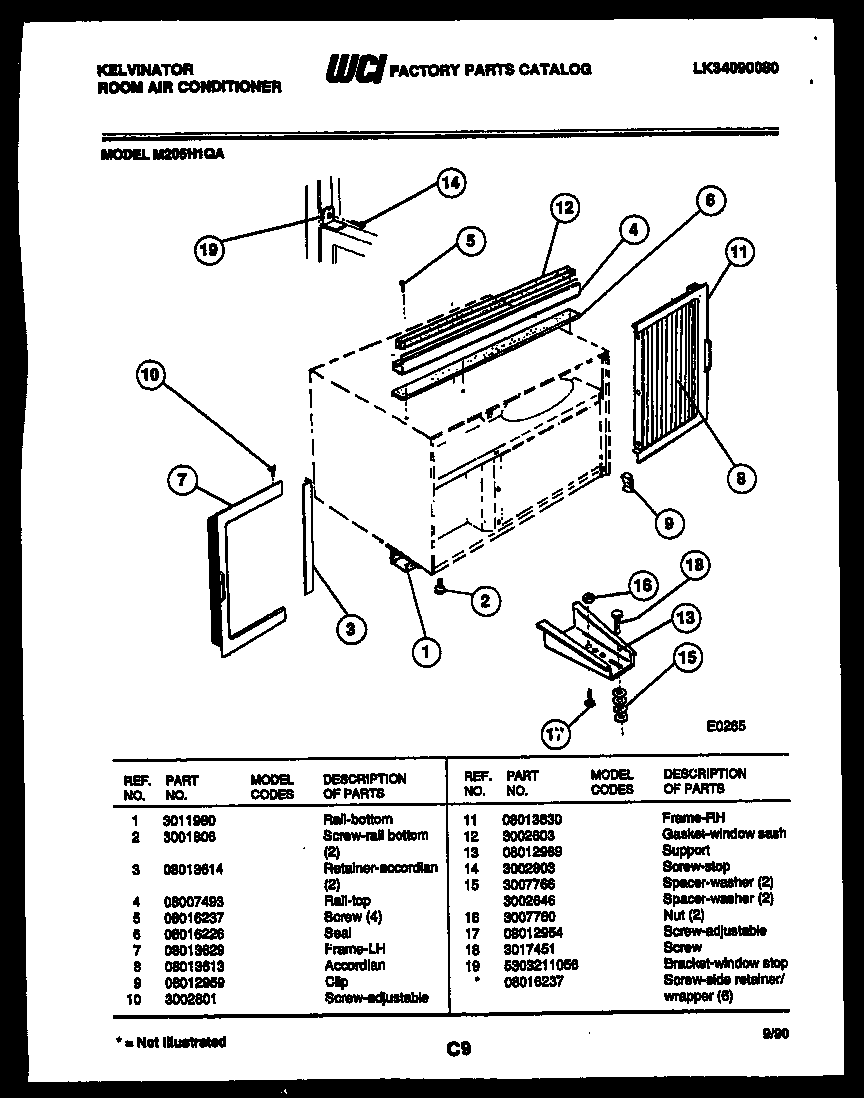

M205H1QA 06 – CABINET AND INSTALLATION PARTS

Written by

Products

Position	Product
1	RAIL-BOTTOM
2	SCREW
3	WCI 08013614
4	RAIL-TOP
5	WCI 08016237
6	WCI 08016226
7	FRAME, EXTENSION, LH
8	CLOSURE-ACCORDION
9	CLIP
10	WCI 3002801
11	FRAME-EXTENSION RH
12	5304407729 Frigidaire Air Conditioner Seal
13	SUPPORT
14	SCREW-WOOD
15	WASHER SPACER
15	134716700 Frigidaire Washer
16	WCI 3007760
17	SCREW-ADJ
18	SCREW-HEX
19	BRACKET
